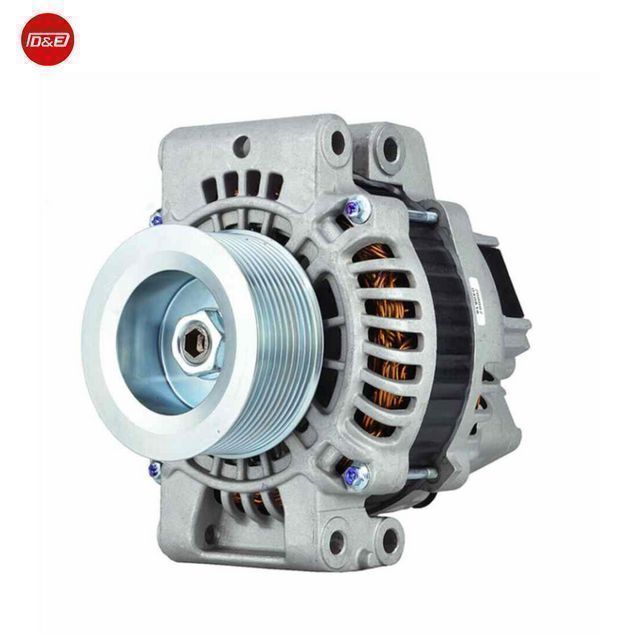

Engine Parts 24V Truck Alternator 1888010 0570887 1884268 2398368 570887 1777299 5001868213 for SCANIA MITSUBISHI

Supplier: Qingdao D & E International Trade Co., Ltd.
Region: Shandong, China
Contact: Ms Jessica Duan
Price: $95.00 / 10 - 49 sets
$92.00 / 50 - 99 sets
$87.00 / >=100 sets
Min. Order: 10 sets

Click here to contact

Product details

Package preview:		Applicable engine brand:	mitsubishi
Origin:	Shandong China	Amperage:	100A
Plugin code:	167	Pulley Diameter:	88mm
Voltage:	DC 24V	Pulley groove:	10 packs
turn around:	continuous wave	Warranty:	1 year
Packaging Details:	Neutral packaging or customer requirements	B+ terminal (30):	M8
Package:	Neutral packing	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram

engine alternator

The alternator is divided into two parts: the stator winding and the rotor winding. The three-phase stator windings are distributed on the casing at an electrical angle of 120 degrees to each other, and the rotor windings are composed of two pole claws. When the rotor winding is energized by direct current, the two pole claws form N pole and S pole. The magnetic field lines start from the N pole, enter the stator core through the air gap, and then return to the adjacent S pole. After the rotor rotates, the rotor winding cuts off the magnetic field lines, and a sinusoidal electromotive force with an electrical angle of 120 degrees is generated in the stator winding, that is, three-phase alternating current, which is then converted into direct current and output by a rectifying element composed of diodes.

Voltage (V)	twenty four
Amperage (A)	100
turn around	continuous wave
pulley type	stable
pulley groove	100
Pulley Diameter(mm)	88
B+ terminal(30)	M8
plugin code	167
Alternator Design	IF/IR
original equipment manufacturer	mitsubishi
vehicle manufacturer	scania
installation type	Upholstered
