CWS Gear Wound Ferrite 24V Series Common Mode Line Filters for Filtering Power Line Noise with 1 mH to 36 mH Inductance

Supplier: Coil Winding Specialist, Inc
Region: California, China
Contact: Mr Gennady Nyu.
Price: $5.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

place of origin; place of origin:	USA/China	Payment/Payment:	custom made
inductance:	1 mH to 36 mH	Supplier type:	Original factory / original factory
application:	automotive application	DC resistivity:	0.05 ohms to 1.5 ohms
brand:	CWS	Packaging Details:	carton
Types of:	line filter	port:	long beach
Current Rating:	0.55 Amps to 3.5 Amps	model:	24V
payment terms:	Credit Card/PayPal/Wire Transfer	temperature range:	- 40°C to 130°C
tolerant:	custom made	type of packaging:	other
brand:	CWS	Operating temperature:	custom made
Packaging/Case:	custom made

Product Description

24V

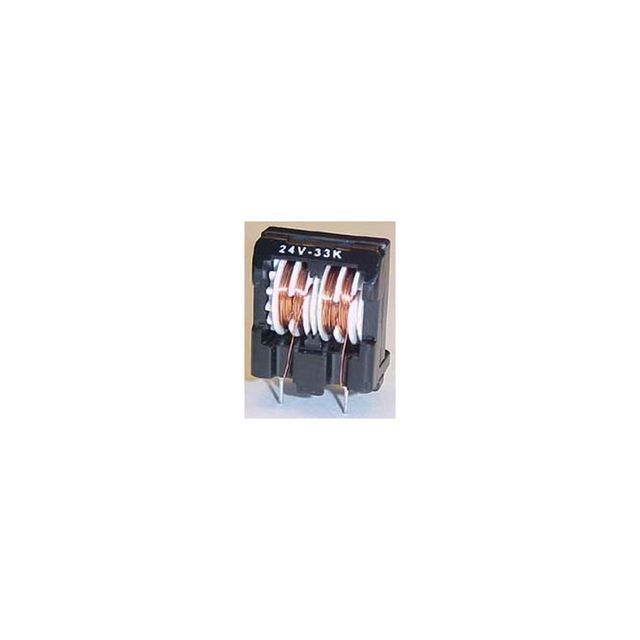

24Vseries common-mode filter. Line Filters for Filtering Common Mode Power Line Noise

feature

• Very low cost monolithic ferrite design • Zero edge loss due to monolithic zero-gap ferrite core and windings on split bobbins • Designed to IEC 950 specifications • 2500 Vac dielectric breakdown voltage • Temperature range of -40°C to 130°C • Current ratings of 0.55 Amps to 2.2 Amps • DCR of 0.05 Ohm to 1.5 Ohm • Inductance of 1 mH to 36 mH • Height: 31 mm (1.22"). Length: 26 mm ( 1"). Width: 19 mm (0.75 in) • Mounting base: 13 x 10 mm (0.5 in x 0.4 in)

Specification

model	24V
Types of	line filter
place of origin; place of origin	USA/China
brand	CWS
direct current	custom made
supplier type	Original factory / original factory
application	automotive application
brand	CWS

At CWS, we accurately and expertly meet our customers' common mode choke needs. We offer a wide range of common mode choke coils with different phases designed to meet project needs and provide best-in-class performance.

Common mode chokes offer multiple phase

A choke is simply an air to ferromagnetic core coil that can be used as an inductor reluctance. They are typically used for single or three phase use. CWS now also offers them for two phase and four phase use. A common mode choke is connected in series to the supply and return conductor pair. They are ideal for EMI filtering on signal and power lines. Most common mode chokes can handle high AC currents without compromising performance. Ferrite Chokes and Nanocrystalline Chokes Our early phase common mode choke designs were created with ferrite. A ferrite choke is a passive electronic component that suppresses high frequencies in electronic circuits. Our 2-phase, 3-phase and 4-phase common mode choke coils are designed with nanocrystalline magnetic cores to significantly reduce the size of the common mode choke coils. This results in stronger EMI suppression than ferrite chokes.order chokesAt CWS, we make it our top priority to deliver quality products within short notice times. Expert engineers can work with customers to design custom common mode choke coils. Once the common mode chokes are created, samples are sent to customers for testing to make sure they fit the project needs. Then, the final design is approved and shipped in small or high volume orders.

For additional technical support, ordering questions and product information, please contact us at 800-377-3244.
