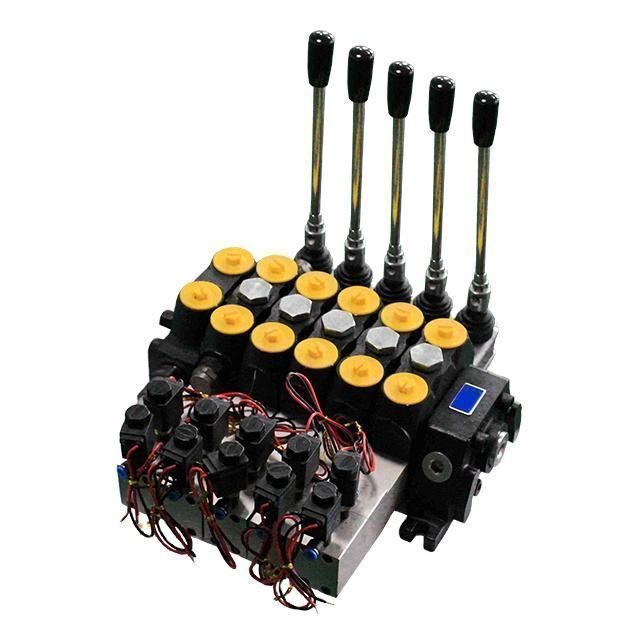

DCV100/2-S 100LPM Flow Hydraulic Directional Valve with Manual Control Valve
- 100.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| strength: | standard | color: | customer request |
| Supply capacity: | 1000 sets per month | MOQ: | 1 |
| delivery time: | 1-5 days | product name: | Hydraulic control valve |
| Standard or non-standard: | standard | Valve Type: | other |
| payment terms: | L/C, Western Union, T/T, MoneyGram | application: | mechanical |
| Dimensions (L*W*H): | standard | Package preview: | |
| structure: | hydraulic valve | place of origin; place of origin: | Shandong China |
| After warranty service: | Video technical support | pressure: | high pressure |
| Showroom location: | not any | State of health: | new |
| port: | Jinan, Qingdao, Shanghai, Beijing, Shenzhen, Guangzhou | Packaging Details: | 1.) Packing: neutral packing/customized/packing box 2.) Plywood tray: anti-rust treatment + plastic bag + plywood tray. 3.) Wooden box: anti-rust treatment + plastic bag + foam box + wooden box 4.) Customer demand |
| weight: | twenty three | Warranty: | 1 year, 1 year |
| Material: | cast iron |
Related Products
Product Description
DCV100/2-S 100LPM Flow Hydraulic Directional Valve with Manual Control Valve
222
Hydraulic mobile valve DCV200
Maximum flow: 200L/min
Maximum working pressure: 315bar
Working section: 1~12
Thread (Standard): G1"
Hydraulic directional valve DCV200
The main technical data of DCV200 series sectional regulating valve are as follows:
1. Nominal flow: 160L/min (=42.27GPM=42.27USgal)
2. Maximum flow rate: 200L/min (=52.83GPM=52.83USgal)
3. Maximum pressure: 315bar (=4567.5psi=31.5Mpa)
4. Thread (Standard): G1" (We usually provide BSPP thread, other special thread on request)
5. Working part: 1 to 12 are all ok
6. Spool stroke: +8~-8mm
7. Tie rod tightening torque: 755N.m
8. Parallel circuits (other circuits, such as series circuits, are available upon request)
9. Low internal leakage
10. High-strength cast iron body
11. Nickel-plated spool
12.100% test the product before shipping
13. ISO 9001 certification
14. Good quality and prompt service
15. Factory direct sales
Maximum flow: 200L/min
Maximum working pressure: 315bar
Working section: 1~12
Thread (Standard): G1"
Hydraulic directional valve DCV200
The main technical data of DCV200 series sectional regulating valve are as follows:
1. Nominal flow: 160L/min (=42.27GPM=42.27USgal)
2. Maximum flow rate: 200L/min (=52.83GPM=52.83USgal)
3. Maximum pressure: 315bar (=4567.5psi=31.5Mpa)
4. Thread (Standard): G1" (We usually provide BSPP thread, other special thread on request)
5. Working part: 1 to 12 are all ok
6. Spool stroke: +8~-8mm
7. Tie rod tightening torque: 755N.m
8. Parallel circuits (other circuits, such as series circuits, are available upon request)
9. Low internal leakage
10. High-strength cast iron body
11. Nickel-plated spool
12.100% test the product before shipping
13. ISO 9001 certification
14. Good quality and prompt service
15. Factory direct sales
detailed image
