RO pure water machine to make deionized water, commercially prepared water

Product details
Showroom location:Kenya, Chile, UzbekistanVideo shipment inspection:if
product name:RO pure water machine for making deionized water and preparing watercapacity:500LPH
Voltage:220V or 380Vplace of origin; place of origin:Guangdong, China
Packaging Details:Wooden box or wooden frame, or customizedproductivity:500L/hour, 1000L/hour, 2000L/hour
brand:Customer ExperienceTypes of:reverse osmosis water filter
Applicable industries:Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agenciesCertification:International Organization for Standardization
strength:1kw-25kwapplication:drinking water system
payment terms:L/C, D/P, T/T, Western UnionCore component warranty:1 year
color:clueState of health:used
Marketing Type:normal productPackage preview:
Material:FRPLocal service location:Kenya, Chile, Uzbekistan
Material:wooden frameWarranty:1 year
After warranty service:Video technical support, online supportAfter-sales service provided:Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online support
Supply capacity:100 sets per monthMechanical test report:if
original place:ChinaController:manual
weight:400-800kgCore components:water pump, engine
port:Whampoa

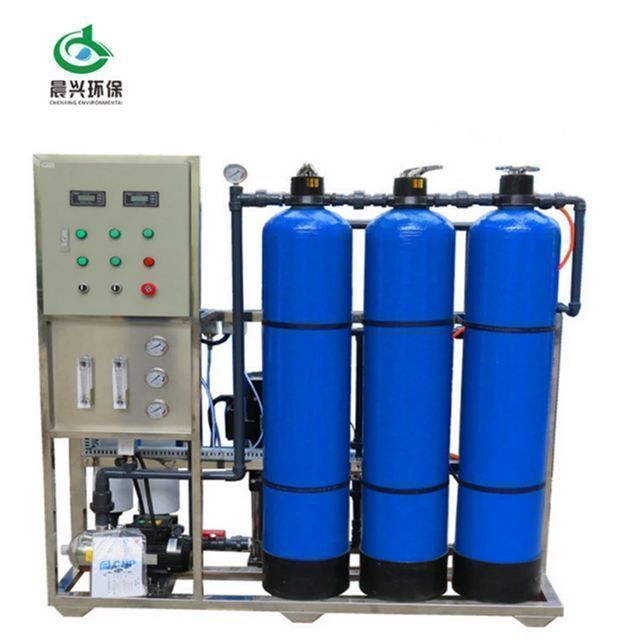

Deionized water, prepared water, cosmetic reverse osmosis pure water machine

Product Description

What is a reverse osmosis system?

Reverse osmosis is the most advanced and effective desalination technology. The principle is at a pressure higher than the osmotic pressure of the dissolved solution. Only follow the water molecules through the reverse osmosis membrane. The solute and solvent are then separated to obtain purified water. It can remove fine particles, colloids, organic matter, bacteria, viruses and 99% of dissolved salts, and the water quality is stable. It has been widely used in electronics, electrical appliances, medicine, food and other fields.

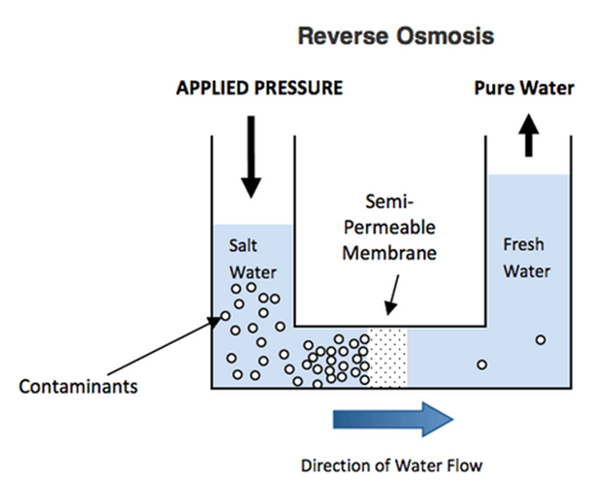

What is the working principle of RO membrane for reverse osmosis system?







name reverse osmosis water purifier
Model 500LPH
Material FRP water tank, PVC pipe
controller manual
brand cx
color white
membrane vontron or CSM, customized
process Activated carbon filter + quartz sand filter + water softener + filter + reverse osmosis membrane
Salt rejection rate 95-99%
Water recovery rate 60-75%
size 1000mm*960mm*1960mm
weight 500KG
certified CE and ISO
strength Electric or solar system power supply
pack Wooden frame or wooden box





work process



Raw water pump→mechanical filter→activated carbon filter→sodium ion exchanger→precision filter→

High pressure pump → reverse osmosis → ozone sterilizer (UV).





1.Raw water pump-- Provide pressure for quartz sand filter/activated carbon filter/water softener.

2.Multimedia filter--Remove turbidity, suspended matter, organic matter, colloid, etc.

3.activated carbon filter--Remove color, odor, free chlorine, organic matter, harmful substances, etc.

4.softener-- Exchange calcium and magnesium "ions" by the most common and easiest way.

5.security filter--Prevent large particles, bacteria, and viruses from entering the RO membrane, with an accuracy of 5um,

6.High-pressure pump--Provide high pressure to the reverse osmosis membrane.

7.reverse osmosis system——The main part of the factory. The desalination rate of the RO membrane can reach 99%, and more than 99% of the ions are removed.





application

1). Electronics industry: ultrapure water, chemical products, pre-filters for pure water

2). Food and beverage industry: mineral water, wine, fruit juice filtration
3). Pharmaceutical industry: liquid medicine, gas filtration
4). Chemical industry: organic solvent filtration
5). Petroleum industry: oil field water injection filter
