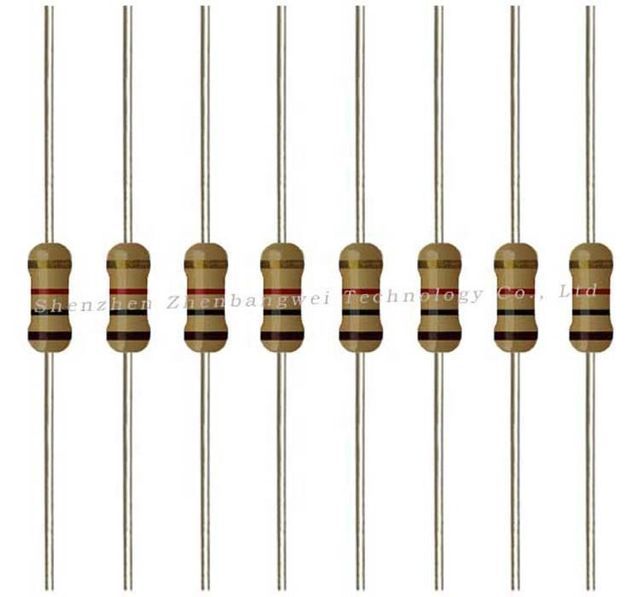

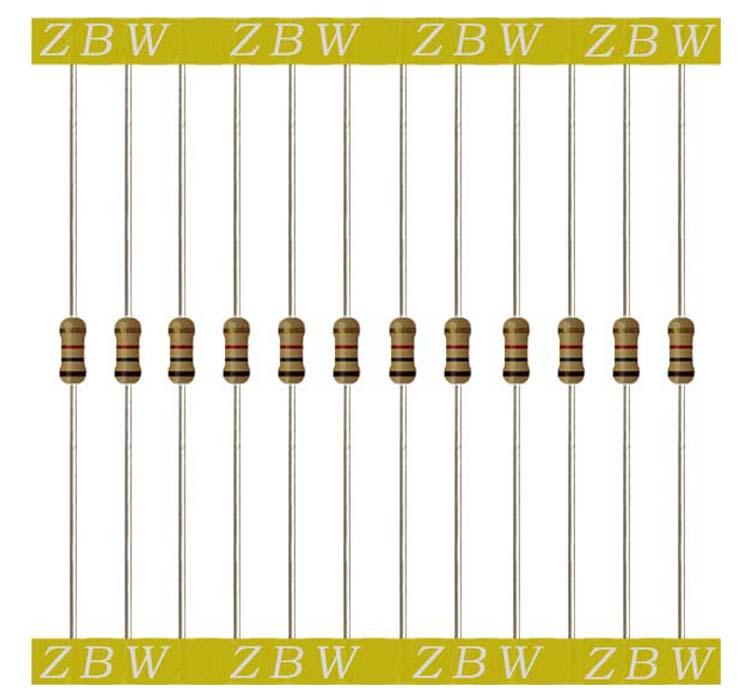

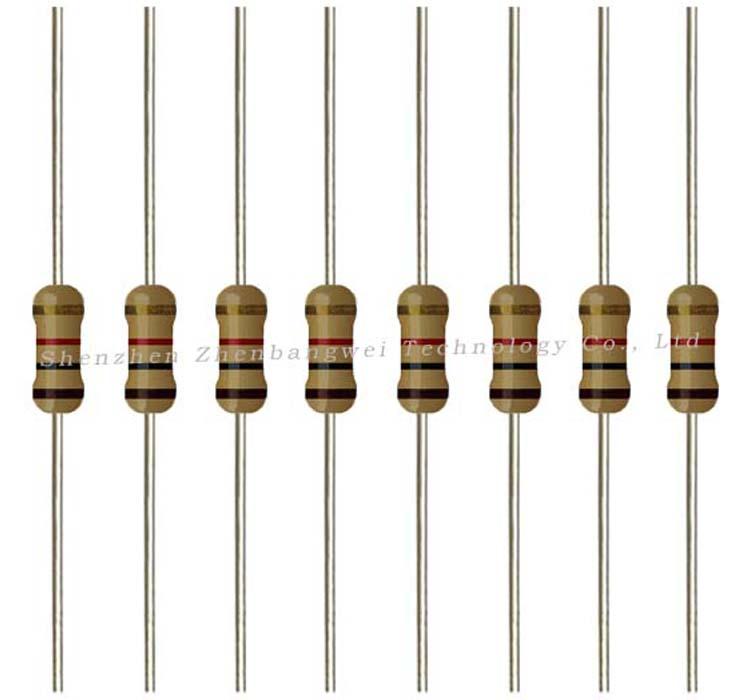

carbon film cfr resistance 220k ohm, carbon film resistance 1/4w, led resistance
-
Supplier: Shenzhen Zhenbangwei Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Neil zeng -
Price: $0.001 /piece -
Min. Order: 1 piece
Product details
| technology: | carbon film | Supplier type: | Original factory, ODM, other |
| Resistance Tolerance: | 5% | Payment/Payment: | See packing |
| Installation type: | insert | Circuit type: | voltage divider |
| feature: | good high frequency performance | Operating temperature: | -55 to +100°C |
| Supply capacity: | 30 billion pieces/year | port: | Shenzhen or Ningbo |
| rated power: | 0.25 W or less | Media available: | data sheets, photos, other |
| Height - seated (maximum): | indefinite | Resistance: | 10 Ω to < 1 MΩ |
| shape: | stamp | Temperature Coefficient: | ±450ppm/℃ |
| Power (Watts): | 0.25W | payment terms: | Western Union, T/T, MoneyGram |
| Packaging/Case: | dip | application: | electronic product |
| Package preview: | brand: | BYZGR | |

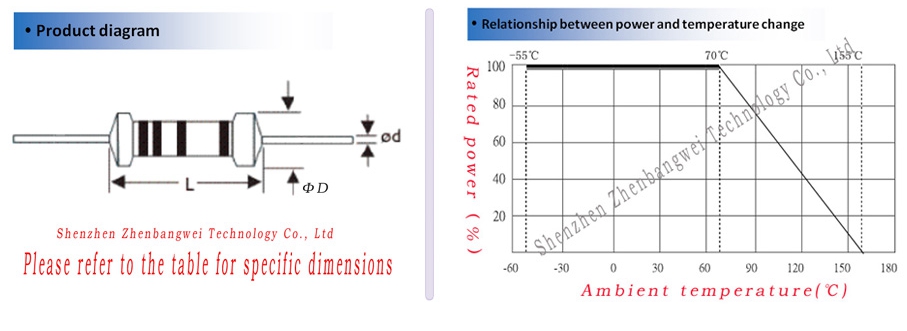

| Dimensions/dimensions: | D=2.3±0.4(mm), L1=6.0±0.5(mm) | application: | Electronics, LED, radar, X-ray, laser, etc. |
| Packaging Details: | plastic bag or carton | Coating, Housing Type: | ceramics |
| Terminations: | 2 | Number of Resistors: | 1 |

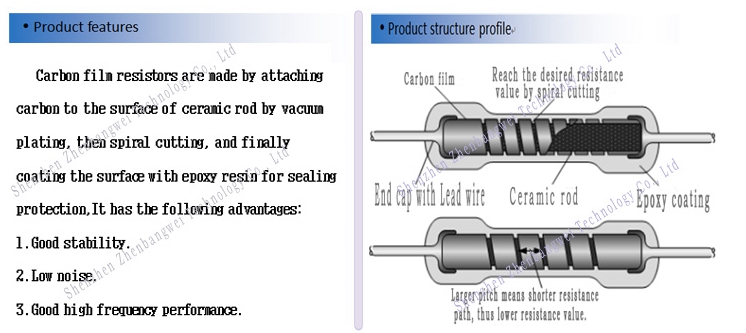

| work: | Ceramic + carbon film | Leadership style: | copper wire/iron wire |
| Number of pins: | 2 | place of origin; place of origin: | Guangdong, China |
| tolerant: | 5% | model: | 0.25W 220k ohms |
| type of packaging: | through hole | Types of: | fixed resistor |
| Pack: | plastic bag or carton |
Product Description

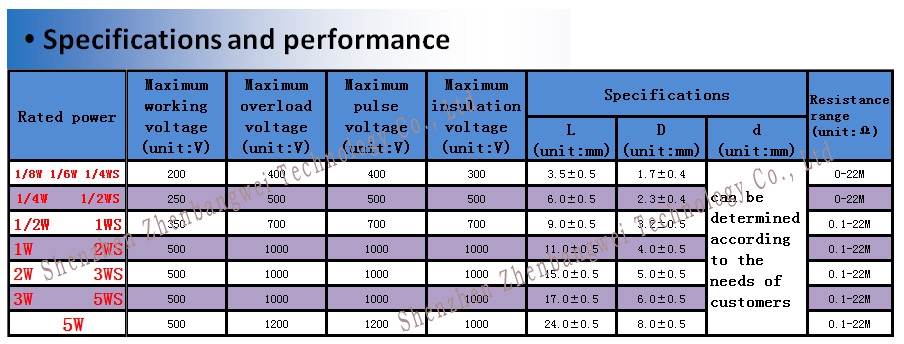

Specification

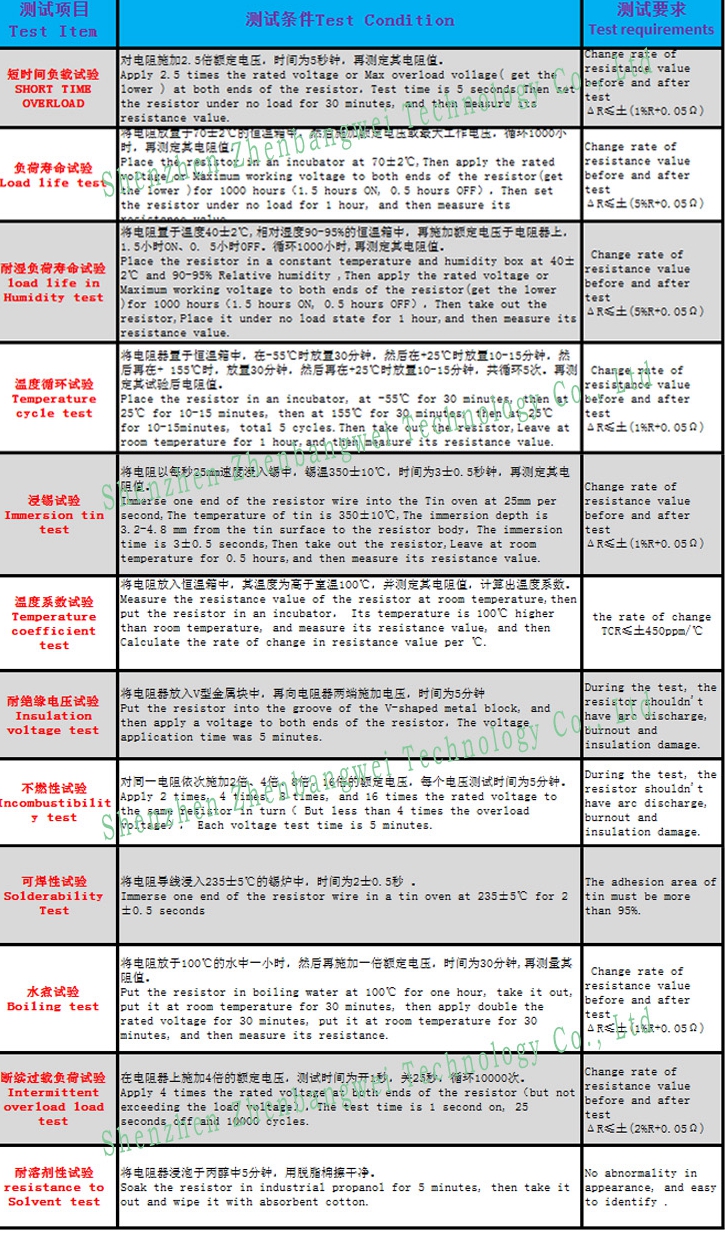

Bonding strength test of wire and body | Bonding strength test of wire and body | |||
tensile strength | Apply a force of 2.5KG to the wire for 30 seconds | Wires must not be broken or loose after testing | ||
Torsional strength | Fix the wire first, then use the wire as the axis of rotation, rotate the resistor 360° clockwise, then rotate 360° counterclockwise, 5 consecutive cycles. | Wires must not be broken or loose after testing | ||
Bending strength | Apply a force of 0.5KG to the wire so that the wire is at 90° to the body, then bring the wire back to level and repeat once | Wires must not be broken or loose after testing | ||
