High Quality Low Price Four Cavity 1800-2000 BPH Semi Automatic PET Plastic Blow Molding Machine Price

Click here to contact
Product details
Video shipment inspection:ifPlastic processing:pet
year:2020breaker:Tracy
Open itinerary:160mmDimensions (L*W*H):1870mm*630mm*1450mm
Weight (kg):2060 kgMaximum bottle diameter (mm):38mm
Applicable industries:manufacturing plantbrand:double fly
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramMechanical test report:if
Marketing Type:New Products 2020Package preview:
Core components:Motor, PLCPower (kW):17.5 kW
Heater Dimensions:1870*630*1450mmPackaging Details:Wooden box or wooden base
Voltage:380V/3 phase/50HZSupply capacity:20 sets per month
Clamping force(kN):45 kNmaximum. Bottle diameter:38mm
State of health:newHollow part volume:200ml---1500ml
Blow valve:YongchengMain selling points:high productivity
Drum brand:YongchengWarranty:1 year
Installed power:23kwBlow molding type:stretch blow molding
Operating valve:Yongchengbottle height(mm):350 mm
brand:FigoNeck Diameter (mm):15mm
application:bottleMold Thickness:210mm
place of origin; place of origin:Jiangsu, ChinaRecommended air compressor:1.2 cubic meters per minute, 30 kg
Core component warranty:1 yearautomation:semi-automatic
Theoretical output:1600-2000pcs/hourport:Shanghai
Showroom location:not anyBottle volume (ml):1500 ml
Product Description

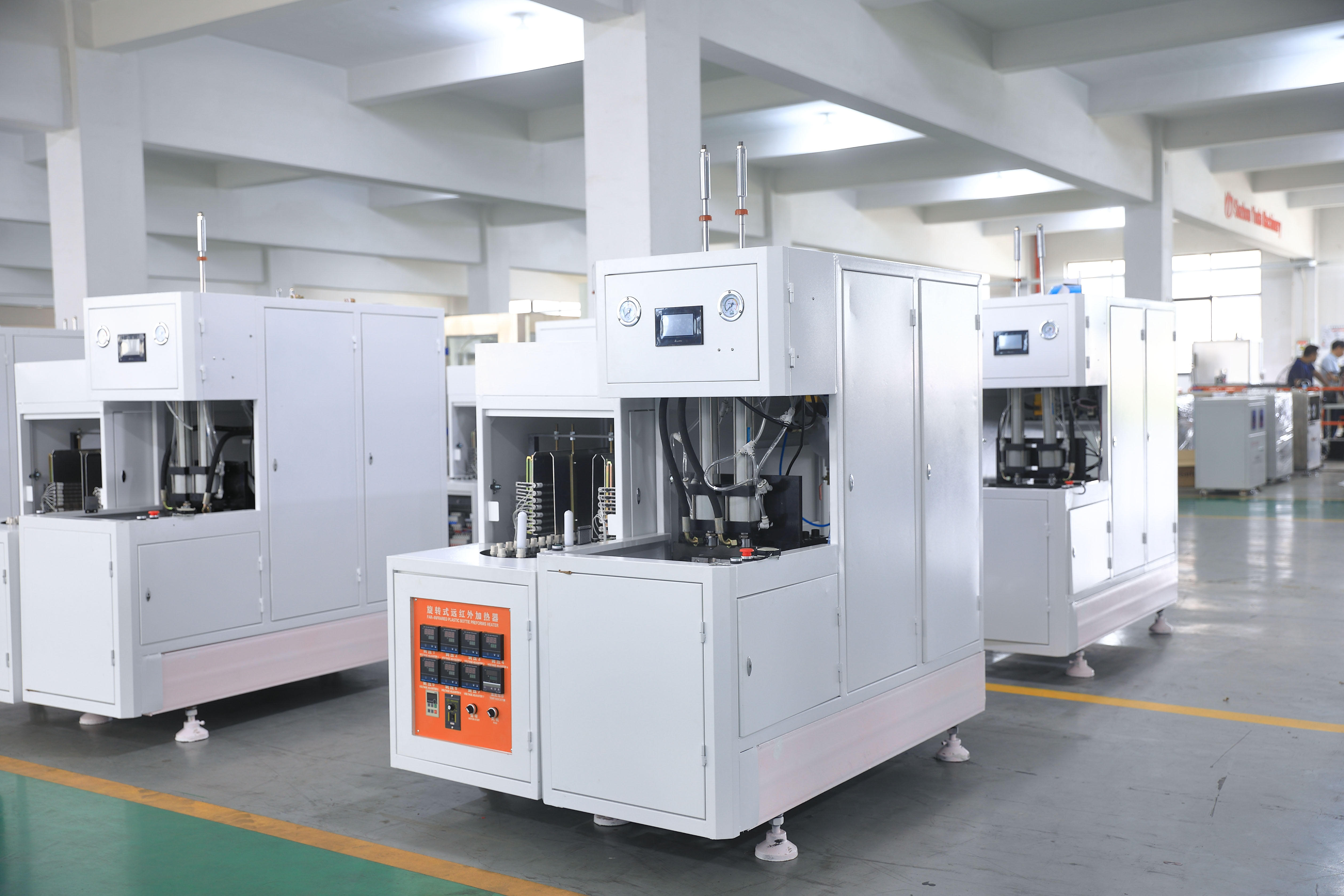

4 cavity semi-automatic PET blow molding machine
configuration
component name
brand
origin
Programmable Controllers
double fly
China
cylinder
Yongcheng
China
Blow valve
Yongcheng
China
operating valve
Yongcheng
China
breaker
Tracy
China

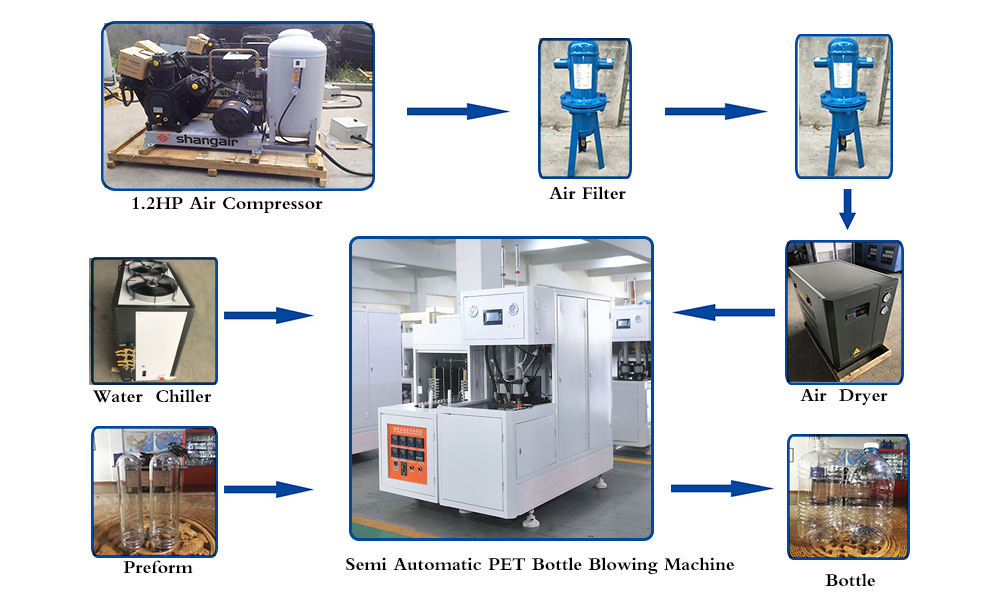

Workflow (take 2cavity as an example)
technical parameter
Model
4 cavity semi-automatic PET blow molding machine
Theoretical output
1600---2000pcs/hour



finished bottle
maximum. bottle volume
1500L
maximum. neck diameter
38mm
maximum. bottle diameter
380mm
maximum. bottle height
350mm


Mold specification
cavity
4 cavity
Mold thickness
210mm
open trip
160mm



electronic system
voltage
380v/3 phase/50HZ
Install the power supply
23kw
Actual power consumption
17.5kw
Gas source
Recommended air compressor
1.2 cubic meters / minute 30Kg
Cooling water
Recommended Chiller
3 hp
Blow molding machine size
length*width*height/weight
1600*600*1610mm/500kg
heater size
length*width*height/weight
1870*630*1450mm/200kg
detailed image

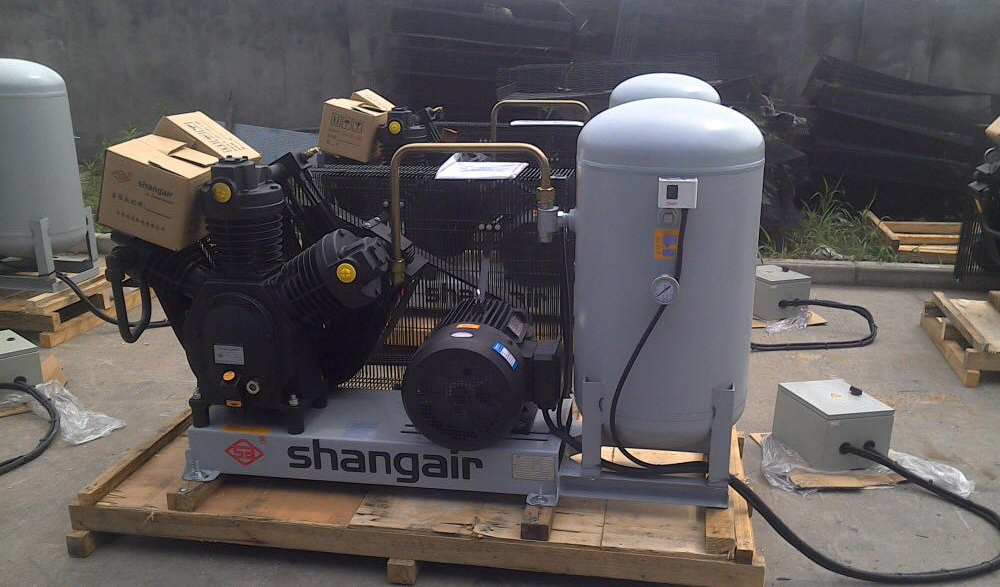

High pressure air compressor (1.2m3/30kg)
1. Exhaust volume: 1.2m3/minute
2. Pressure: 3Mpa
3. Motor power: 15kw
4. Water tank: 150L
5. Operating speed: 730 rpm
6. Weight: 600kg
7. Packing: 1900mm*1000mm*1300mm

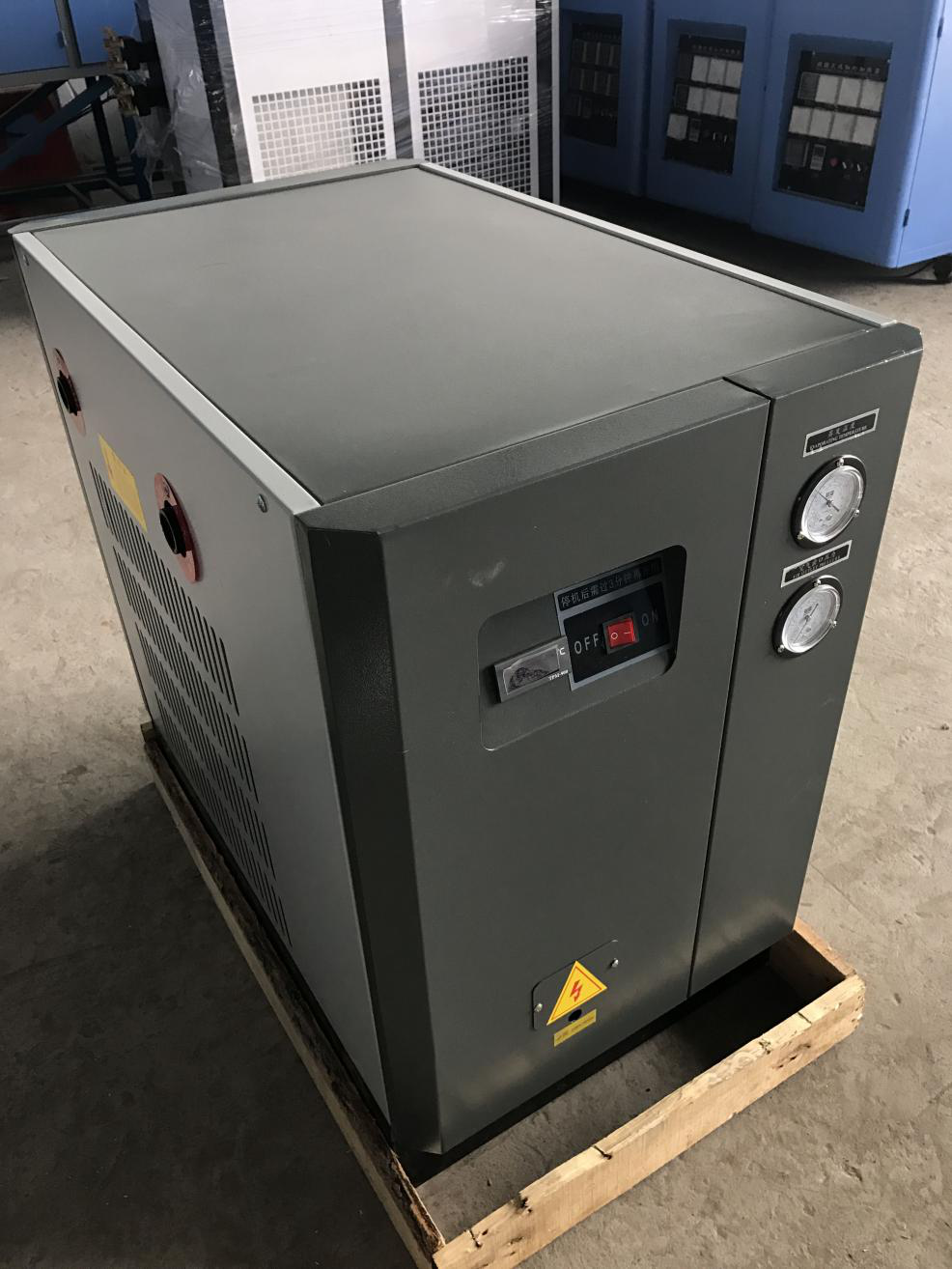

Air dryer (2.0m3/30kg)
1. Throughput: 2.6m3/minute
2. Inlet pressure: 3Mpa
3. Inlet temperature: below 80°C
4. Dew point: 2°C - 10°C
5. Refrigerant: R-22
6. Power: 0.22kw
7. Size: 630mm*420mm*800mm
8. Weight: 63kg

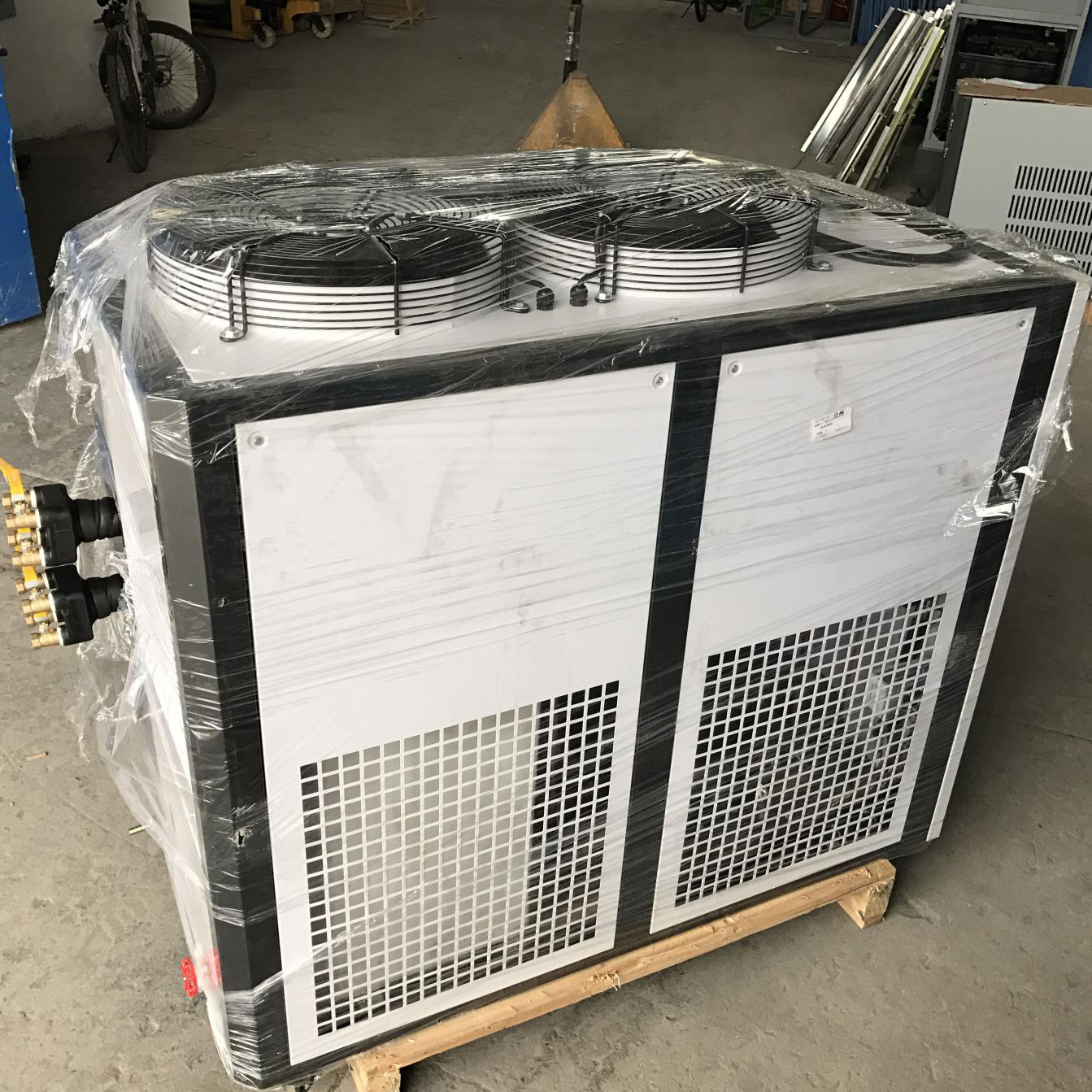

Chiller 0.5HP
1. Cooling capacity: 7188Kcal/hr
2. Maximum chilled water flow: 90 Ltr/min
3. Water tank capacity: 50L
4. Power: 2.5kw
5. Dimensions: 1100*600*1180mm
6. Weight: 150kg

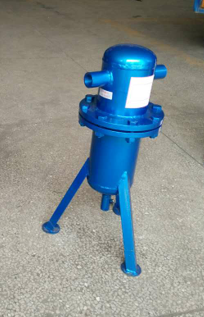

Air filter (2.0m3/min, 30kg)
1. Flow rate: 2.6m3/minute
2. Weight: 17kg
3. Height: 660mm
4. Diameter: 300mm
