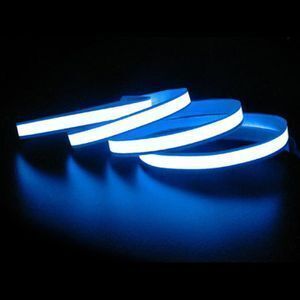

El tape electroluminescent tape el strip el sheet el panel, flexible lighting el tape, hottest high brightness el tape

Supplier: Dongguan Fokming Electroluminescence Co., Ltd.
Region: Guangdong, China
Contact: Mr Jacky Sheng
Price: $5.00 / >=100 sets
Min. Order: 100 sets

Click here to contact

Product details

Packaging Detail:	standard packing with carton;	Model Number:	FM-1101;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Delivery Detail:	8-20 working days;
Size:	can be customized;	Voltage:	DC12V-24V/ AC85V-240V;
Certificate:	ROHS, CE certification, SEDEX factory report;	Warrant:	1-6 months;
Thickness:	0.3mm-0.5mm;	Brightness:	85-120CD;
Supply Ability:	100000 Set/Sets per Week;	Shape:	regular or irregular available;
Supplier:	Factory Manufacturer;	Color:	white, red, yellow, green, blue, etc total 10 colors;
Place of Origin:	Guangdong China (Mainland);	Port:	Shenzhen ,China;
Brand Name:	Fokming;	Lifetime:	8000-15000hrs;

El tape electroluminescent tape el strip el sheet el panel, flexible lighting el tape, hottest high brightness el tape

Specifications

High quality indoor decorative pink el tape, el strip, el sheet, el panel
1.High brightness & Good quality
2.Reasonable price
3.Super-thin

EL Brief Introduction:

Cold light referred to as EL ( Electro Luminescent ), thin as paper, easy installation, can tear open outfit, high repeated usability, low carbon, energy saving, environmental protection.

With the unique novelty, fashion, dynamic effect, so both indoor and outdoor advertising application will get a good effect.

El cold light panel is composed of the phenomenon of electric energy into light energy, because it won't produce heat in the process of work, so generally known as cold light.

At present, the industry called EL cold light as EL back light, light panel, Light-emitting products.

EL Structure:

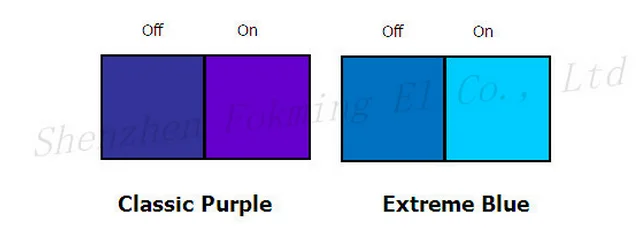

EL Colors:

Shenzhen Fokming El is available in a variety of colours. Custom colour matching is possible based on minimum volume requirements.

All colours are shown in Off/On positions.

EL Specification:

Thickness	0.3-0.5mm
Flexible	Can be bent
Size	standard size, custom size
Shape	Any shape available.
Brightness	80-120cd/m2
Life span	8000-15000 hours based on animation effect.
Safety	No Ultraviolet Radiation emitted
Service environment	Indoor, Outdoor, Vehicle
Operating temperature	-25°C to 75°C
Storage temperature	-40°C to 85°C
Humidity Range	5% to 95%
Power Resources	DC12V to 24V or AC85V to 240V
Operating current	< 0.25 mA / cm²
Operating capacitance	0.20 ~ 0.65 nf/cm²
Supply frequency	50-2000HZ
Warranty	6 months
Certificate	CE, LVD,EMC, RoHS, SEDEX
