Manufacturing stainless steel beer filling valve for filling machine

benefit:

1. Easy installation, maintenance-free, long life;

2. Self-adjusting valve stem seal, reliable operation, and the cylinder can rotate freely at 360 degrees;

3. Corrosion resistance, high flow, low fluid resistance, no water hammer phenomenon;

4. Control gas consumption is low. optical position indication,

Control Type: Double acting without spring

Specification: DN10～DN15

Contact method: threaded (NPT, BSP)

Actuator size: 27mm

Body material: cf8m (aisi316) or cf8 (aisi304)

Actuator: Cf8 (aisi304)

Seat: Teflon (PTFE)

Applicable fluid: water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and alkali

Fluid pressure: Max.0.7 mpa

Fluid temperature: -10c----+200c

maximum. Viscosity: 300mm2/s

Control fluid: neutral gas, air

Control pressure: 0.35-0.4mpa

Ambient temperature: -10c---+120c

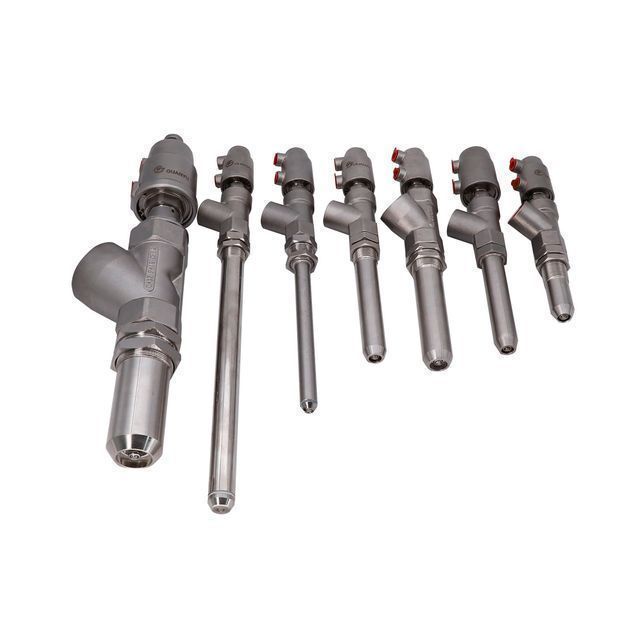

Can choose according to your needs, we have filling valves in different sizes and lengths
