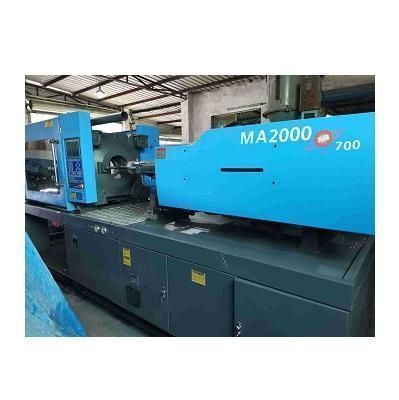

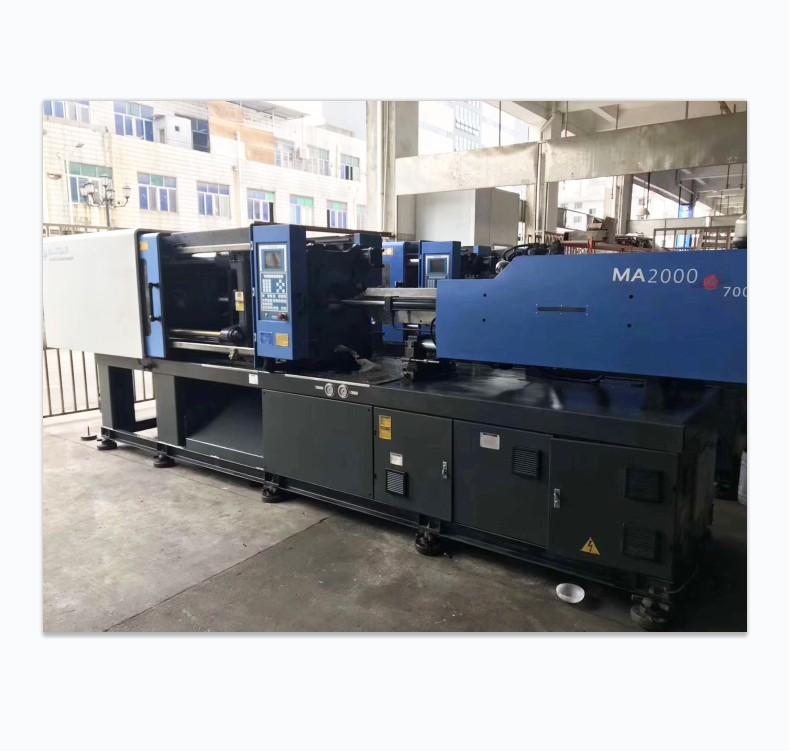

Used Haitian 200 Ton MA2000/700 Servo Motor Injection Molding Machine Haitian
- 5890.00 1 - 1 sets
- 5600.00 >=2 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Shenzhen | Supply capacity: | 5 sets per month |
| Used for: | PE PET PVC ABS full plastic material | brand: | sea sky |
| State of health: | used | operating hours: | 0-2000 |
| Shot Weight (grams): | 375 grams | Weight (kg): | 5300 kg |
| Machine weight: | 5.3T | motor: | servo |
| Fuel tank capacity: | 240L | Hopper capacity: | 16KG |
| Type of machine: | hydraulic | Video shipment inspection: | if |
| Machine size (length*width*height): | 5.07*1.35*1.99 | year: | 2017 |
| Injection Rate (g/s): | 182 g/s | Heater power: | 9.75KW |
| Mechanical test report: | if | Package preview: | |
| payment terms: | Western Union, T/T, MoneyGram | Applicable industries: | Manufacturing plants, machinery repair shops, food and beverage plants, construction works, energy and mining industries, others |
| style: | horizontal | Maximum pump pressure: | 16MPA |
| Showroom location: | not any | place of origin; place of origin: | China |
| Injection pressure: | 169MPA | Core components: | motor, engine |
Product Description
Specification
thing | value |
plastic processing | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, polylactic acid |
State of health | used |
2017 | |
style | horizontal |
530mm | |
530mm | |
Clamping force(kN) | 2000 kg |
Plasticizing capacity (g/s) | 182 |
Mold height(mm) | 140mm - 490mm |
Ejection stroke(mm) | 140mm |
Ejection force(kN) | 62kN |
Theoretical injection volume (cm³) | 412 cubic centimeters |
Injection rate (g/s) | 182 g/s |
type of machine | hydraulic |
Injection weight (g) | 375 grams |
Screw speed (rpm) | 1rpm - 196rpm |
Screw diameter(mm) | 50mm |
Screw aspect ratio | 20 |
distance between rods | 530*530 |
Weight (kg) | 5300 |
Types of | Tube head injection |
place of origin; place of origin | China |
Open stroke(mm) | 490mm |
model | MA2000 |
brand | Haiti |
certified | CE ISO9001 |
Power (kW) | 18.5kW |
Warranty | 1 year |
Video technical support, online support | |
main selling point | energy saving |
Applicable industry | Manufacturing plants, machine repair shops, food and beverage plants, construction works, energy and mining, other |
After Warranty Service | Video technical support, online support |
local service point | not any |
Showroom location | not any |
marketing type | used product |
Mechanical inspection report | if |
Video shipment inspection | if |
Core component warranty | 1 year |
core components | motor, engine |
for | PE PET PVC ABS full plastic material |
machine weight | 5.3T |
brand | sea sky |
motor | servo |
Injection pressure | 169MPA |
Maximum pump pressure | 16MPA |
Heater power | 9.75KW |
Machine size(L*W*H) | 5.07*1.35*1.99 |
Hopper capacity | 16KG |
Fuel tank capacity | 240L |
