100% Original Japanese NTN 37431 / 37625 Roller Bearing
- 9.90 1 - 199 pieces
- 9.30 200 - 499 pieces
- 8.50 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| in stock: | huge | Applicable industries: | Clothing stores, manufacturing plants, mechanical repair shops, construction, energy and mining, automotive |
| Single package size: | 17X12X3 cm | Bearing size: | 109.54 x 158.75 x 21.44 mm mm |
| Rows: | single row | Bearing Type: | 37431 / 37625 |
| Bearing material: | 100% chrome steel Gcr15 | Gross weight per piece: | 1.500 kg |
| Pressure sample: | usable | pack: | Personal NTN Package |
| Bearing weight: | 1.33 kg | Sales unit: | single product |
| Types of: | roller | model: | 37431 / 37625 |
| Serve: | best service | Accuracy class: | P6 P5 P4 P2 |
| Package preview: | structure: | Taper | |
| feature: | High quality and long service life | Seal type: | Open |
| Packaging Details: | Single NTN carton | brand: | NTN |
| lubricating: | oil lubrication | place of origin; place of origin: | Japan |
100% Original Japan NTN Tapered Roller Bearing 37431 / 37625
1. 100% original Japanese NTN tapered roller bearing 37431 / 37625 Appearance:

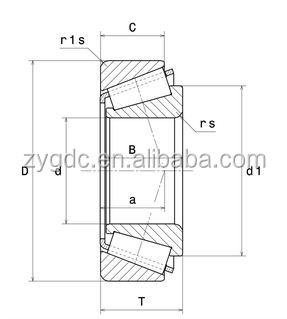

2. 100% original Japanese NTN tapered roller bearing 37431 / 37625 product definition
| d | 109.54mm |
| Ding | 158.75mm |
| Second | 21.44mm |
| C | 15.88 mm |
| Ton | 23.02mm |
| d1 | 133mm |
| A sort of | 37.02 mm |
| electronic | 0.61 |
| Y2 | 0.99 |
| Y0 | 0.54 |
| Lots of | 1.33 kg |
| brand | NTN |
3. 100% original Japanese NTN tapered roller bearing 37431 / 37625 Product performance:
| Dynamic load, C | 102 kN |
| Nominal life factor, A2 | 1.4 |
| Static load, C0 | 166 kN |
| Fatigue limit load, Cu | 18.6 kN |
| Nlims (oil) | 2,800 t/min |
| Nlim (grease) | 2,100 t/min |
| Minimum working temperature, Tmin | -40°C |
| Maximum working temperature, Tmax | 120°C |
| Eigencage frequency, FTF | 0.46 Hz |
| Characteristic rolling element frequency, BSF | 12.73 Hz |
| Characteristic Outer Ring Frequency, BPF0 | 14.84 Hz |
| Characteristic inner ring frequency, BPFI | 17.16 Hz |

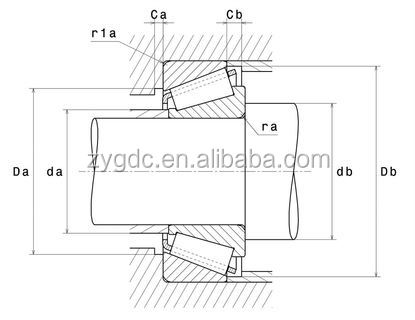

4. 100% original Japan NTN tapered roller bearing 37431 / 37625 Abutment size:
| Lamax | 3.5 mm |
| r1a max | 3.3 mm |
5. 100% Original Japan NTN Tapered Roller Bearing 37431 / 37625 Picture:
6. 100% Original Japan NTN Tapered Roller Bearing 37431 / 37625 Payment and Shipping:

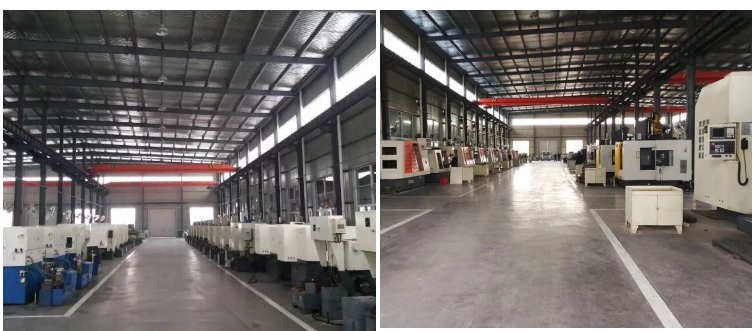

7. Our Team & Exhibition:
8. For more information, please contact us directly:
