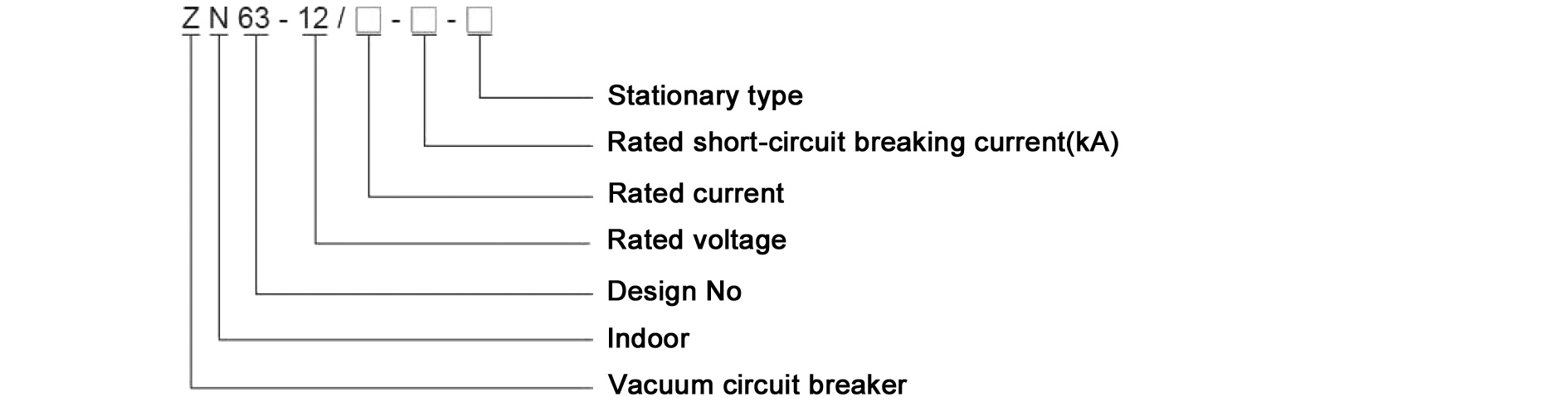

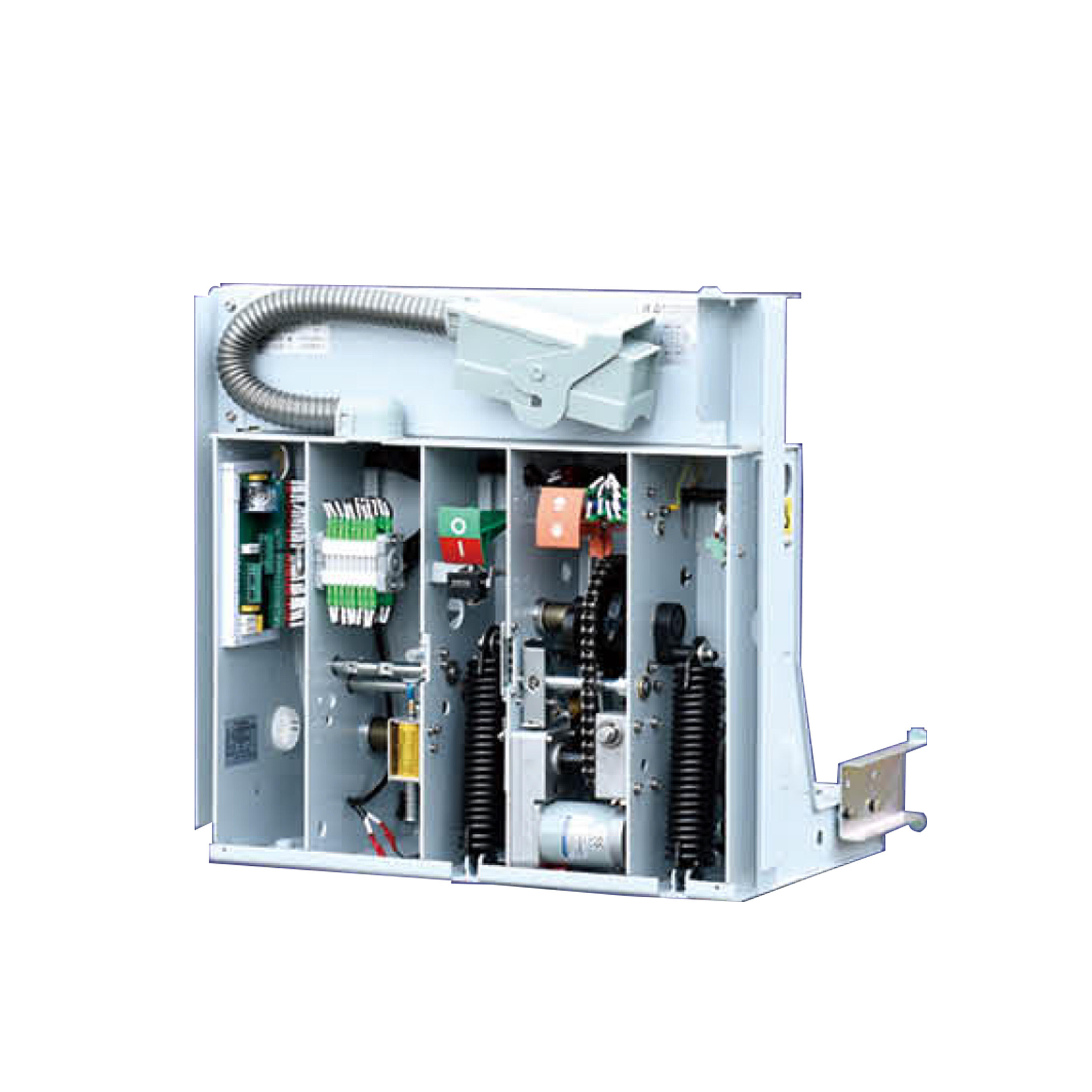

ZN63(VS1)-12KV indoor high-voltage vacuum circuit breaker with DPC chassis for high-voltage withdrawable circuit breaker switchgear

Supplier: Zhejiang Tongye Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tingwei Liu
Price: $615.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rated short circuit duration:	4	Lightning impulse voltage (kV):	75
Installation type:	trolley	Rated withstand current (kA):	63
Rated current:	630A	place of origin; place of origin:	Zhejiang, China
Rated voltage:	12kV	model:	ZN63(VS1)-12
Package preview:		Mechanical life (times):	10000
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Nominal sequence of operations:	O-0.3s-CO-180s-CO
Packaging Details:	Generally we wrap the products with polyethylene bags first, and then seal them with wooden boxes. If the buyer has other packaging requirements, we can negotiate	Breaking capacity:	25kA
Short-time withstand current (kA):	25	Rated current (A):	630 1250
brand:	TOYECP

If you have any question,

Welcome to contact customer service!

Product Description

product description:

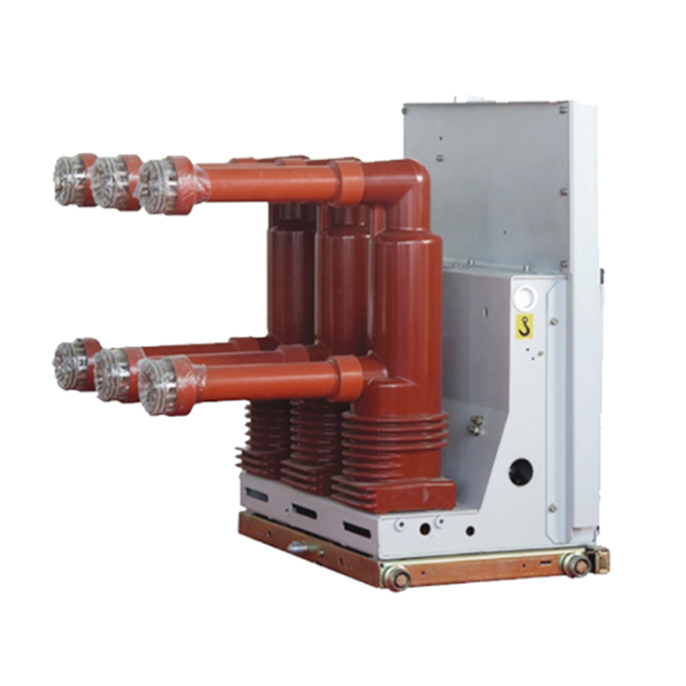

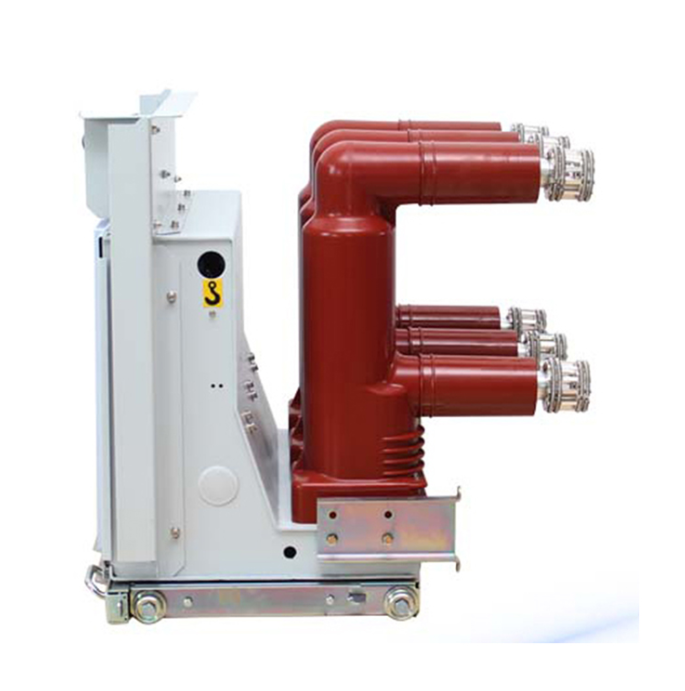

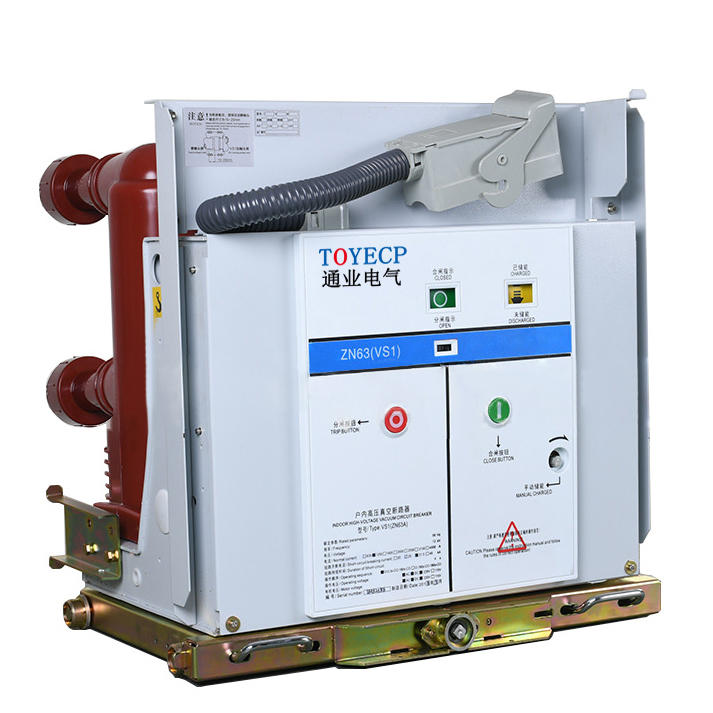

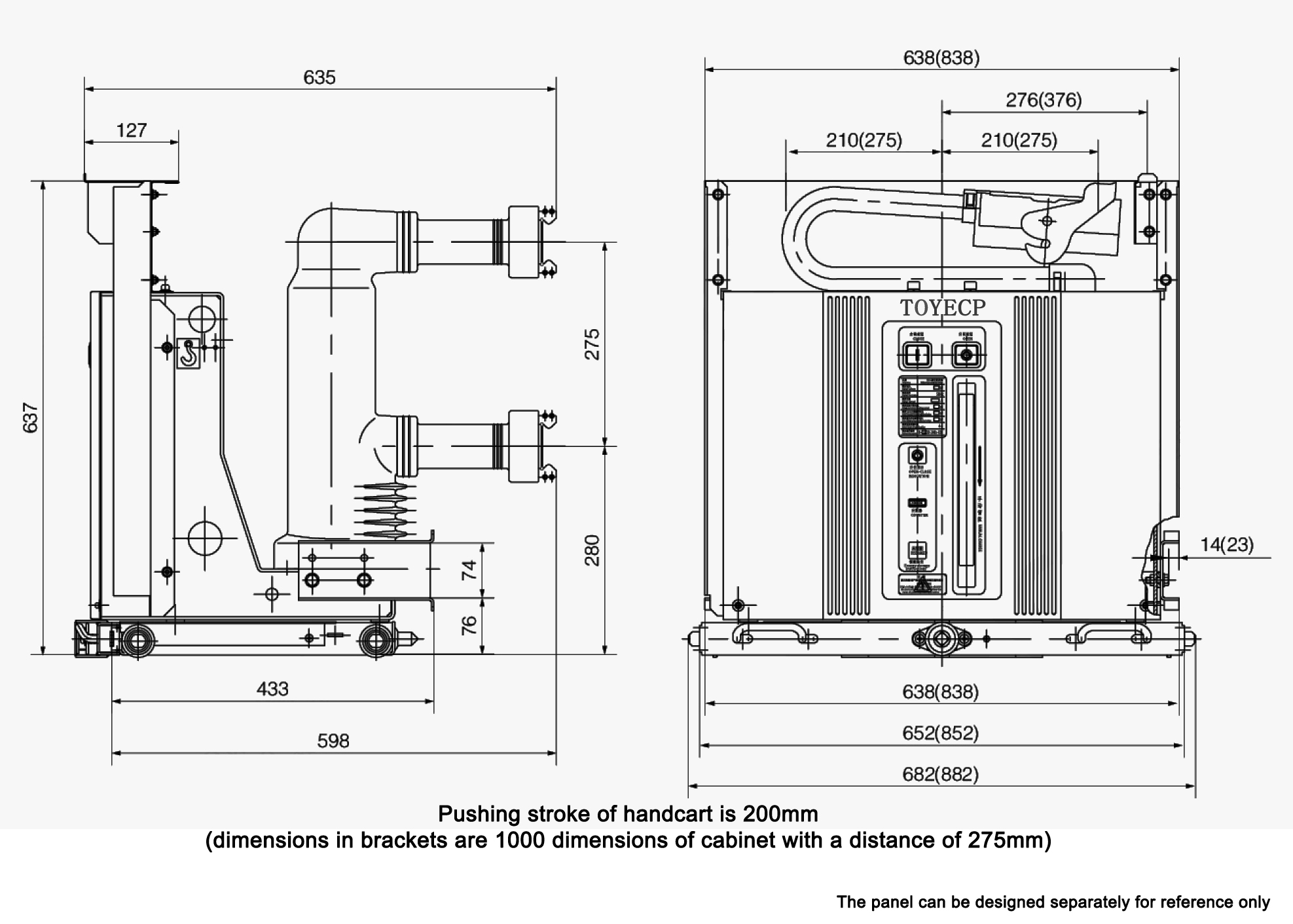

ZN63-12 indoor high-voltage vacuum circuit breaker is an indoor switchgear for a three-phase AC 50HZ power system with a rated voltage of 12kV. It is used as a protection and control unit for power grid equipment and industrial and mining enterprise power equipment. It is suitable for places where frequent operations are performed under rated operating current or where short-circuit current is repeatedly interrupted. The circuit breaker adopts the integrated design of the operating mechanism and the circuit breaker body, which can be used as a fixed installation unit or equipped with a special propulsion mechanism to form a handcart unit.

name			unit	scope
Rated voltage			kV	12	12	12	12
Working current			A sort of	630, 1250	630, 1250, 1600	1250, 1600	2000, 2500, 3150
Rated insulation level	1min power frequency withstand voltage	kV	42	42	42	42
Rated insulation level		Lightning impulse voltage	kV	75	75	75	75
Rated short-circuit breaking current			Ka	20	25	31.5	40
Rated short-circuit making current (peak value)			Ka	50	63	80	100
Rated (peak) withstand current			Ka	50	63	80	100
Rated short-time withstand current			Ka	20	25	31.5	40
Rated short-circuit breaking current breaking times			Second-rate	50	50	50	30
Rated short circuit duration			Second	4
Nominal operating sequence				Open - 0.3 s - Close Open - 180 s - Close Open On-180s-off On-180s-off On (40kA)
Mechanical life			Second-rate	20000	20000	20000	20000

Operating environment:

1. Ambient air temperature: upper limit +40°C, lower limit -15°C;

2. Altitude: ≤1000m (if the altitude needs to be increased, the rated insulation level should be increased accordingly)

3. Amplitude: the seismic sequence shall not exceed 8 degrees;

4. The daily average relative humidity of the air is not more than 95%, and the monthly average is not more than 90%.
5. Places free of fire, danger, severe pollution, chemical corrosion and severe vibration.

Transport and storage:

1. Traffic

The entire circuit breaker must be packed in a closed packing box and fixed during transportation.

2. Storage
The circuit breaker should be stored in a dry, ventilated, moisture-proof, shock-proof, and harmful gas-proof room. Long-term storage should add lubricating oil to the transmission part, and check whether the environment meets the requirements.
The storage period of the vacuum interrupter is 20 years.

Ordering information:

Users should indicate:

A sort of. Circuit breaker model, name, order quantity;

b. The rated voltage, rated current and rated short-circuit breaking current of the circuit breaker;
c. Rated working voltage of energy storage motor and opening and closing coil;
d. Number of overcurrent tripping coils and tripping current value;
e. The name and quantity of spare parts;
F. In case of any ambiguity or special requirements, please contact the manufacturer.
