Professionally designed for locking coils of vacuum circuit breakers and switchgears to lock electromagnetic tripping coils
- 7.50 2 - 499 pieces
- 7.00 500 - 1999 pieces
- 6.50 >=2000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Types of: | magnetic, vacuum | product name: | VS1 vacuum circuit breaker locking coil |
| Material: | steel and copper | model: | VS1 |
| port: | Shanghai/Ningbo | Rated voltage: | 12kv |
| Rated current: | Not applicable | brand: | Yuan Tai |
| Packaging Details: | Individual package size: 50X40X20 cm Individual gross weight: 1.000 kg Package type: The product is covered with a layer of film and then placed in a standard export carton. | payment terms: | L/C, T/T |
| place of origin; place of origin: | Zhejiang, China | BCD curve: | C |
| Mechanical life: | 10000 times | Breaking capacity: | Not applicable |
| application: | Circuit Breakers and Switchgear | Voltage: | DC12~24V |
| Rated frequency: | 50/60 Hz |
Product Description
product name | DC AC VS1 frame electromagnetic trip coil circuit breaker coil for vacuum circuit breaker and switchgear |
describe: | This type of trip coil is mainly used in circuit breakers as a circuit breaker switch on a control module. This type of closing coil (opening and closing electromagnet) is driven by an iron core, and is mainly composed of a coil, a moving iron core, a mounting seat, and a return spring. The blocking coil is a protective coil. When the secondary circuit is de-energized, the main switch cannot be closed, indicating that there is a mechanical interlock. When the secondary circuit is energized, the locking electromagnet is closed, the mechanical interlock is released, and the switch is normally closed. It is characterized by perfect manufacture, reliable performance, long life and high temperature resistance. 1. Circuit breaker part 2. For medium and high pressure 3. Good quality 4. Good after-sales service |

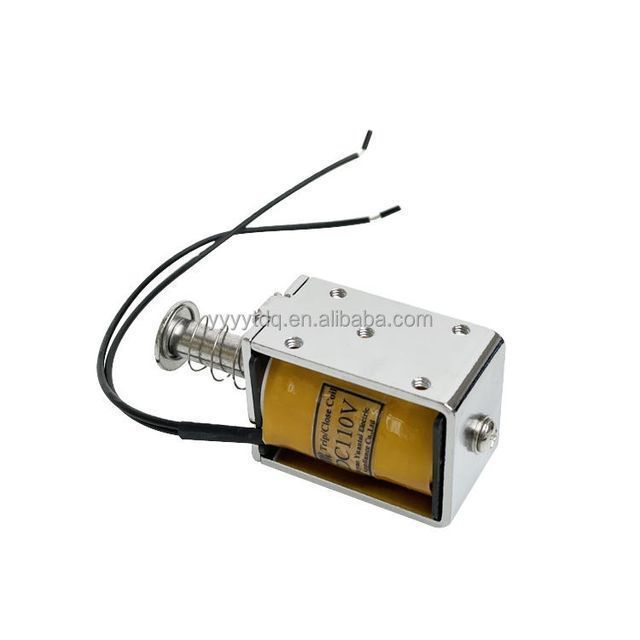

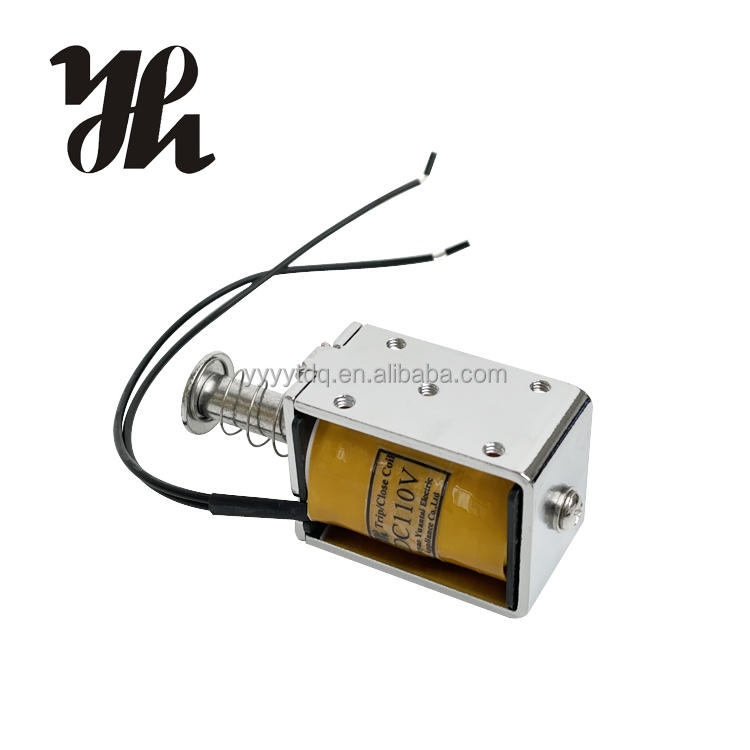

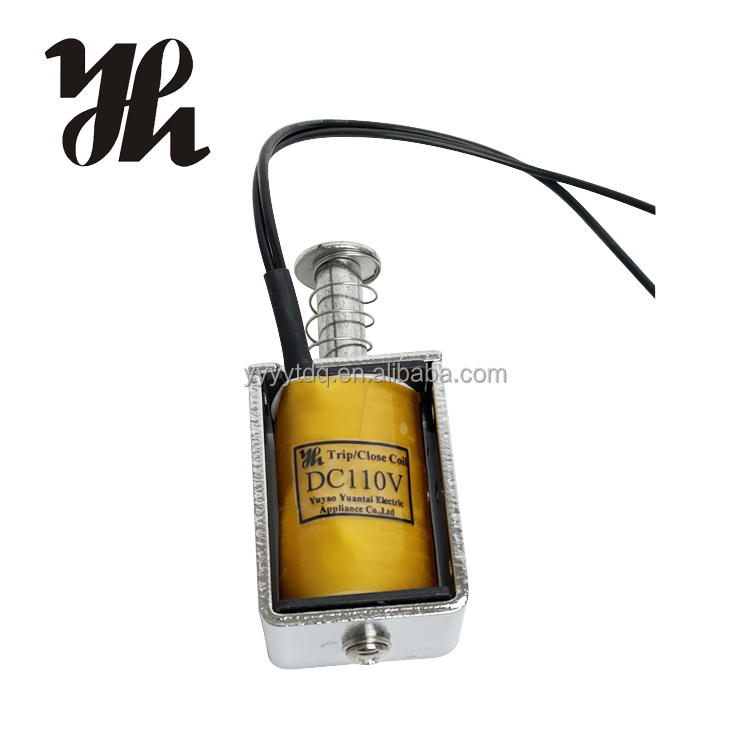

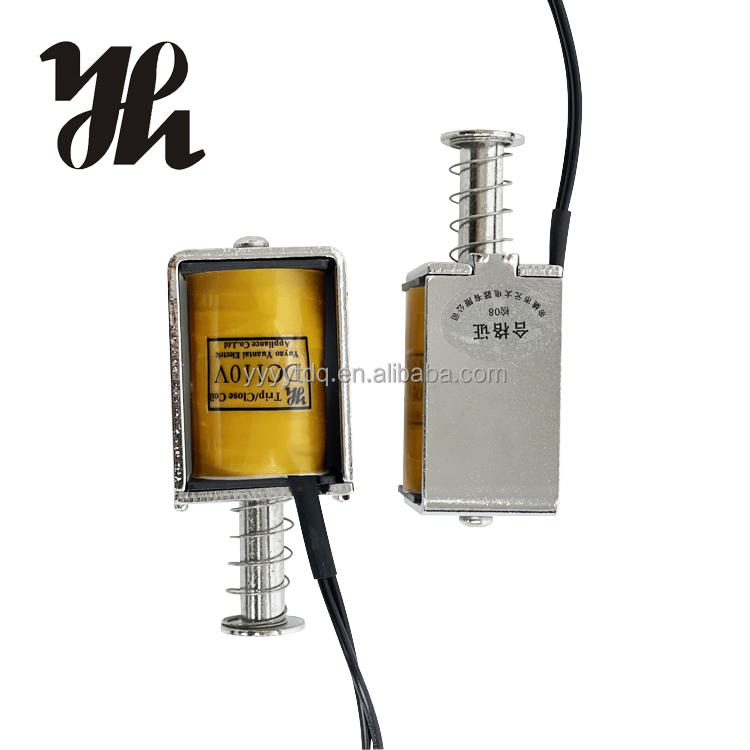

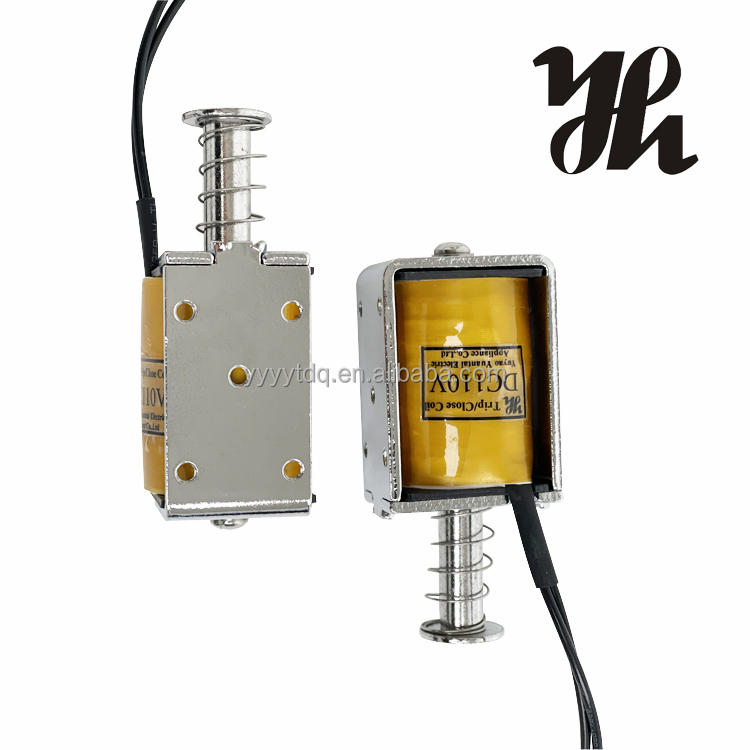

product display
