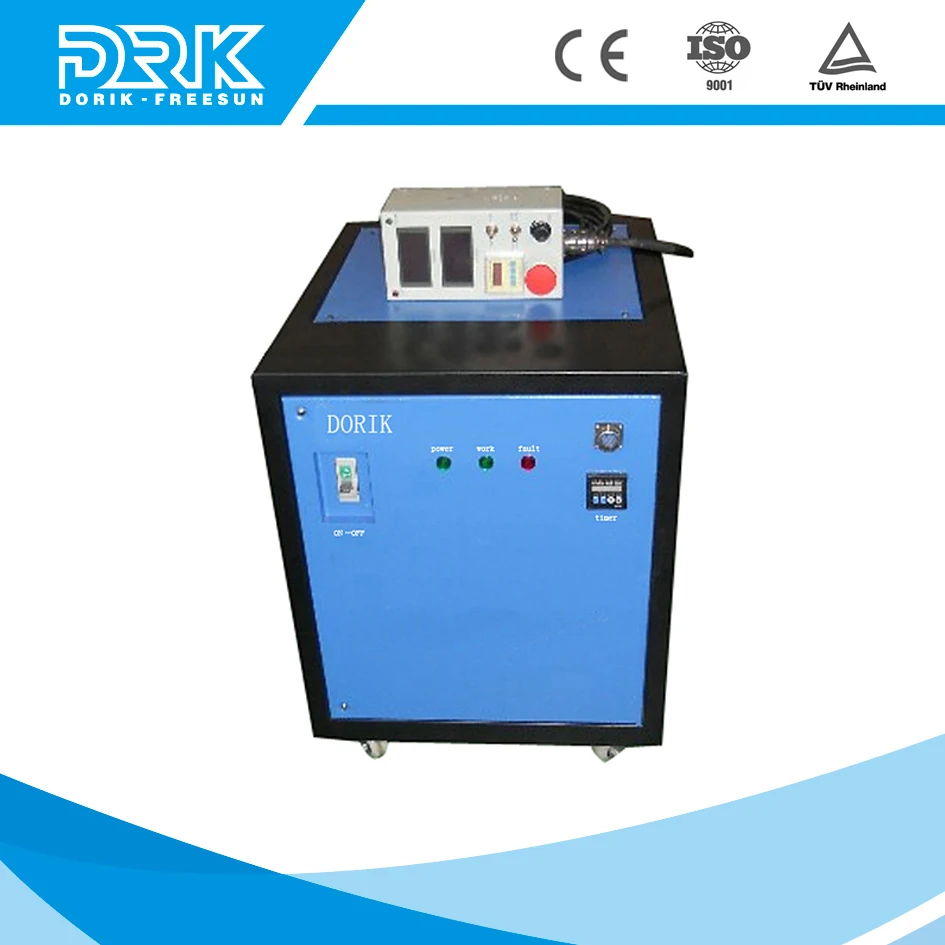

High frequency IGBT plating rectifier DRK-1000A-15V for chrome copper zinc nickel gold silver anti-corrosion

Supplier: Ningbo DORIK Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Rita Yuan
Price: $1150.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Operation mode:	remote box , front panel , touch screen;	Package Type:	Other;
Control accuracy:	Rated value within±1%;	Output voltage:	0~100%rated value. (no limited);
Brand Name:	DORIK;	Input voltage:	Three phase AC 220V/380V/440v±15% 50HZ;
Mean On-State Current:	1000A;	Selling Units:	Single item;
communication:	Plc, Profibus, RS485;	Single gross weight:	56 KG;
Control mode:	Forced by air cooling;	Package Type:	PLT;
Output current:	50A-20000A as your requirement;	Peak Repetitive Reverse Voltage:	15V;
Place of Origin:	Zhejiang China (Mainland);	Output voltage:	12V18V 36V 72V as your requirement;
warranty:	12-24months;	Delivery Detail:	0 days after payment;
Peak Non-Repetitive Reverse Voltage:	15V;	Model Number:	DRK-1000A-15V;
Type:	high frequency dc power supply rectifier;	Dimensions:	Customized;
Application:	electroplating;	Application:	Other;
Single package size:	750X610X340 cm;

High frequency IGBT plating rectifier 1000A for chrome copper zinc nickel gold silver anti-corrosion

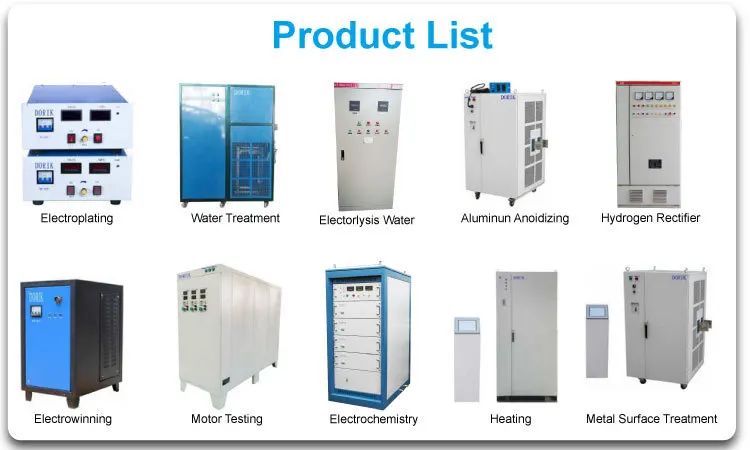

Product List

We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.

Advantage:

1) Small, light and high efficiency.

2) High frequency pulse current output .

3) Flexible use, simple operation.

4) Complete protection function .

Product Overviews

Product Parameters

ITEMS	Technical parameters.
AC input voltage	3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz
Output voltage	DC 0-RatedV adjustable
Output current	DC 0-RatedA adjustable
Regulation range	0-100%
Power factor	≥0.9(full load)
Accuracy of output current, voltage	≤0.1%
Efficiency	≥90%(full load)
Protection grade	IP54 for water cooling, IP30 for forced air cooling
Cooling method	Water cooling or forced air cooling
Control mode	CC,CV,PWM Pulse control
Operation mode	Local touch screen, front pannel, remote control box or communication
Communication protocol	RS485, Profibus DP, MODBUS
Working method	Long time full load continuous operation
Protections	Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure.

Specification	Size(mm) Outline
	A	B	C	D	E
DR-50A-36V	400	360	150	260	50
DR-100A-36V	400	360	150	260	50
DR-200A-36V	460	460	150	380	60
DR-500A-36V	480	520	180	350	80

Working Principle

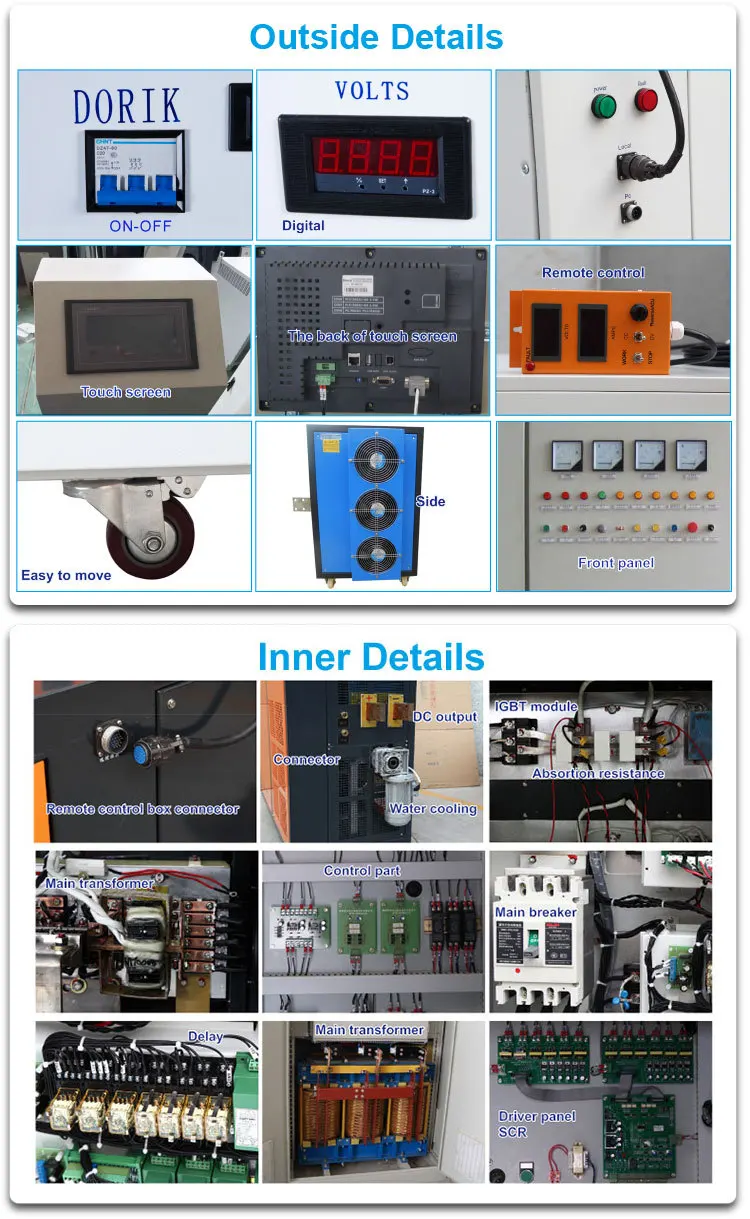

Products Details

Quality Control

1. All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions.

2. Strong technical ability ensures reasonable, professional and safe design.

3. Good quality components are used.

4. Full load testing before shipment.

5. Complete protections.

6. Meet CE requirement.

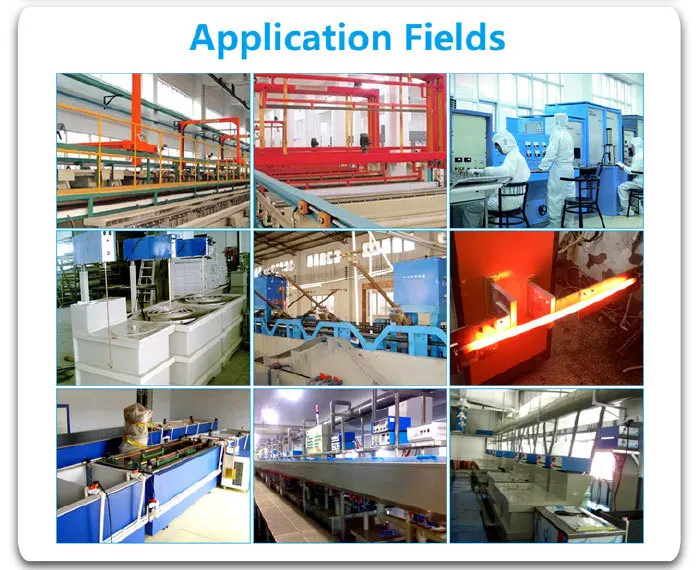

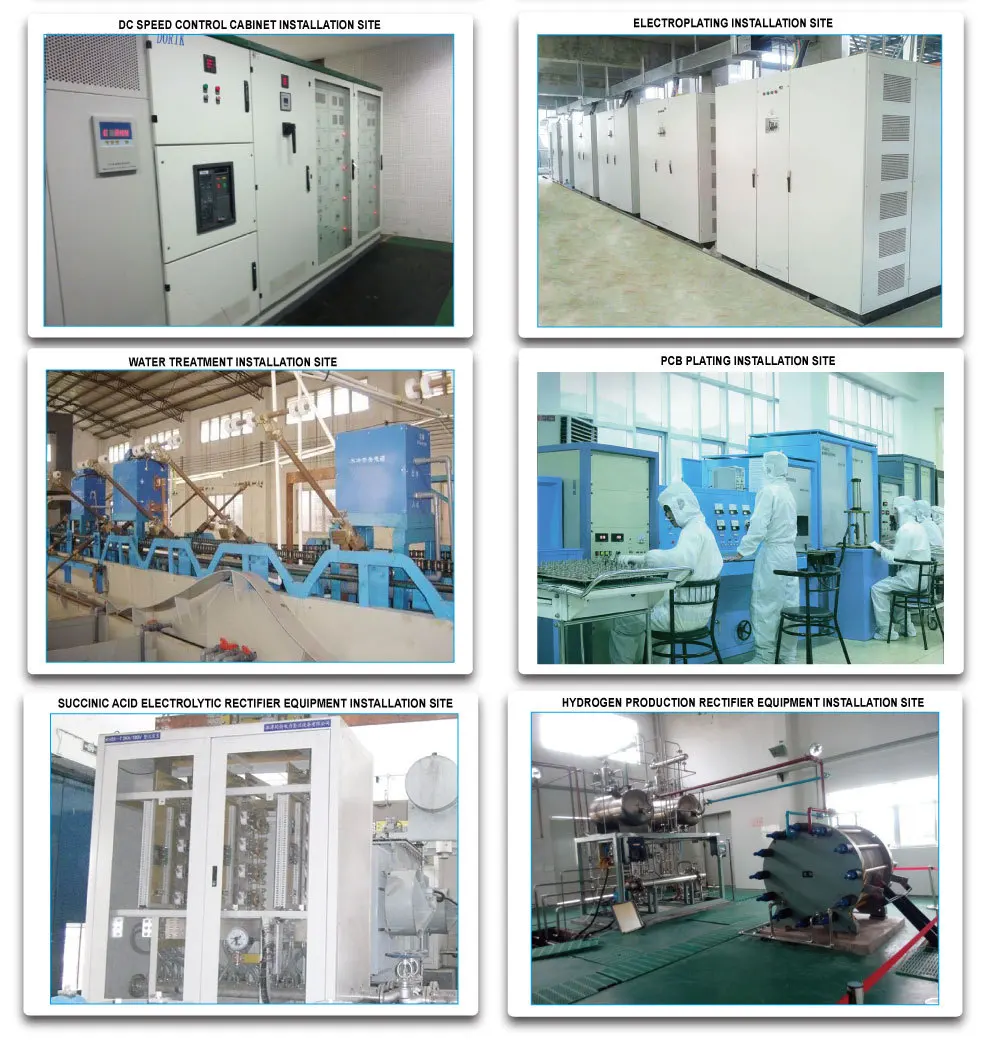

Application Fields

1) Surface treatment: Electroplating. Electrolytic metal treatment. Metal finishing. Base metals. Non metals and plastics. Barrel plating. Rack plating. Continuous plating. Hard aluminum anodizing. Decorative anodizing.

2) Electrolysis: All major applications. Metal electrowinning. Electrorefining. Sodium hydroxide electrolysis. Salt electrolysis. Sodium chloride electrolysis. Chlor alkali electrolysis. Water electrolysis.

3) Cathodic protection water purification. Water electrocoagulation and inductive heating.

Packing &Shipment
