Gz Customizable Emulsification Vacuum Mixer Homogenization Equipment/Touch Screen

Supplier: Guangzhou Promake Machinery Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Golden Promake
Price: $10500.00 /set
Min. Order: 1 set

Click here to contact

Product details

capacity:	100-3000L	engine:	Siemens
After warranty service:	Video Technical Support	State of health:	new
product name:	Homogenizer	Processing:	Emulsifier
Supply capacity:	200 sets per month	Warranty:	1 year
brand:	Promark	payment terms:	L/C, Western Union, T/T
Packaging Details:	plywood	Core components:	Engines, motors, pressure vessels
After-sales service provided:	online support	port:	Whampoa Port
Core component warranty:	1 year	Certification:	CE certification
Product Category:	fixed	Voltage:	220V
Showroom location:	France, Vietnam, Nigeria	Marketing Type:	Hot Deals 2021
control:	Programmable Controllers	Dimensions (LWH):	420036503300mm (can be customized)
weight:	900 kg	Video shipment inspection:	if
strength:	90KW	place of origin; place of origin:	Guangdong, China
Applicable industries:	Manufacturing plants, food and beverage plants, farms, restaurants, food stores, food and beverage stores, other	Function:	Mixing and Homogenization
Processing type:	juice	Mechanical test report:	if

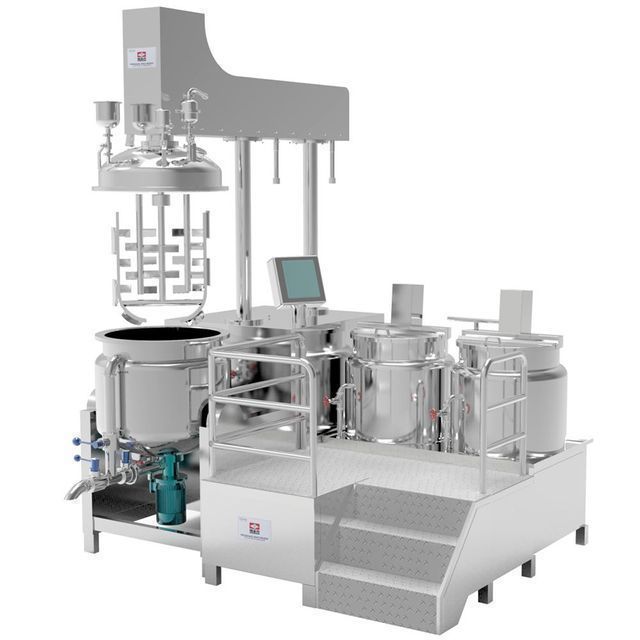

Touch screen control vacuum homogeneous emulsifier

Product Description

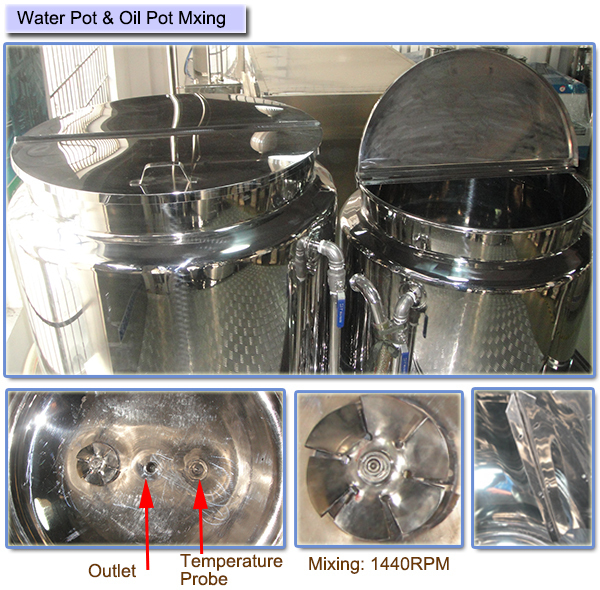

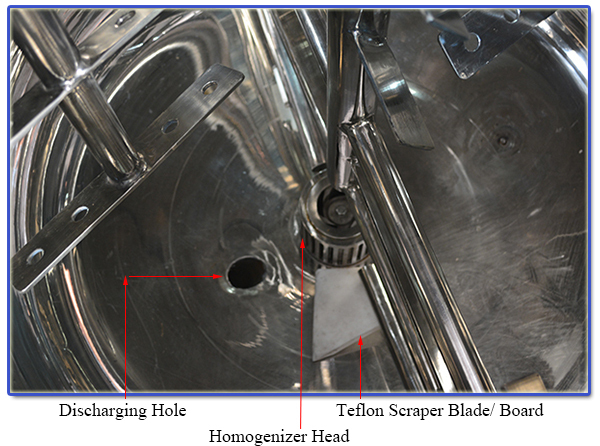

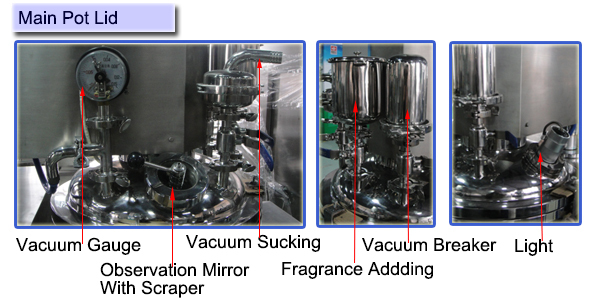

The vacuum emulsification mixer is mainly composed of water pot, oil pot, emulsification pot, vacuum system, lifting system (optional), electric control system (optional PLC), operating platform, etc.

Use and Application of Vacuum Emulsifier

Products are mainly used in daily chemical care products, biopharmaceuticals, food industry, coating ink, nano-materials, petrochemicals, printing and dyeing auxiliaries, pulp and paper, pesticides, fertilizers, plastic rubber, electronics, fine chemicals, etc. The emulsification effect of materials with high solid content is more prominent.

Technical parameters of vacuum emulsifier

Model	PMK-B800	Homogenizer power	11 kW	Material	All contact materials are SUS316L
main pot	800L	Homogenizer speed	3000 rpm	way to heat up	steam heating
kettle	640L	stirring power	5.5kw	Ultimate vacuum	-0.085Mpa
oil can	400L	stirring speed	0-50rpm	control	button

Performance and Features

1. The vacuum emulsifying machine produced by our company has a wide variety of emulsifying machines. The homogenization system includes upper homogenization, lower homogenization, and inner and outer circulation homogenization. The mixing system has one-way mixing, two-way mixing and spiral mixing. The lifting system includes single-cylinder lifting and double-cylinder lifting. Various high-quality products can be customized according to customer requirements.

2. Triple mixing adopts imported frequency converter for speed regulation, which can meet different process requirements.

3. The homogeneous structure manufactured by German technology adopts the imported double-end mechanical seal function, the maximum emulsification speed can reach 4200 rpm, and the maximum shear fineness can reach 0.2-8μm.

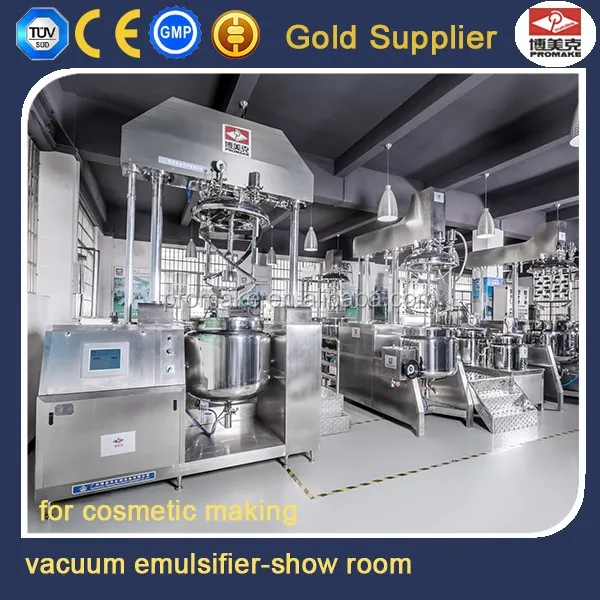

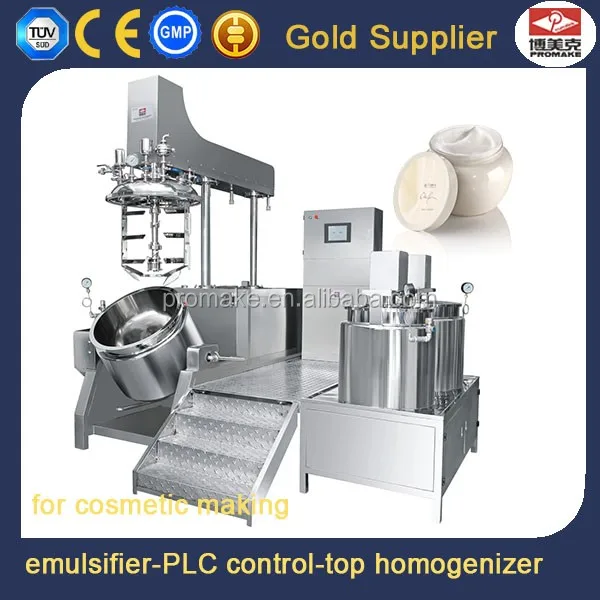

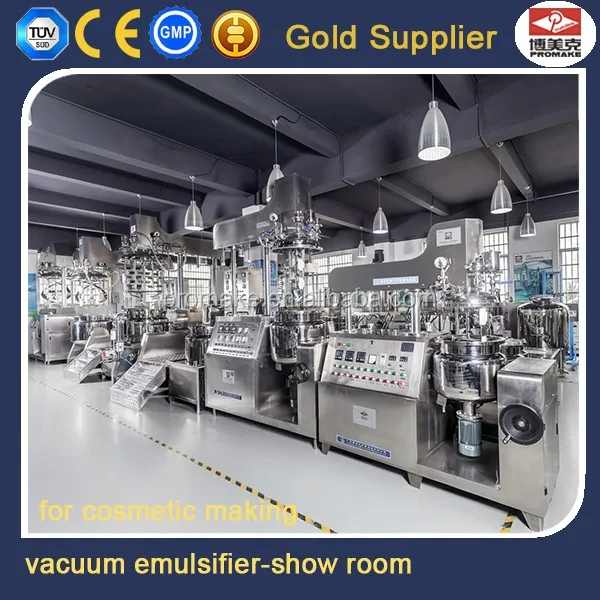

Picture of cream emulsifying machine
