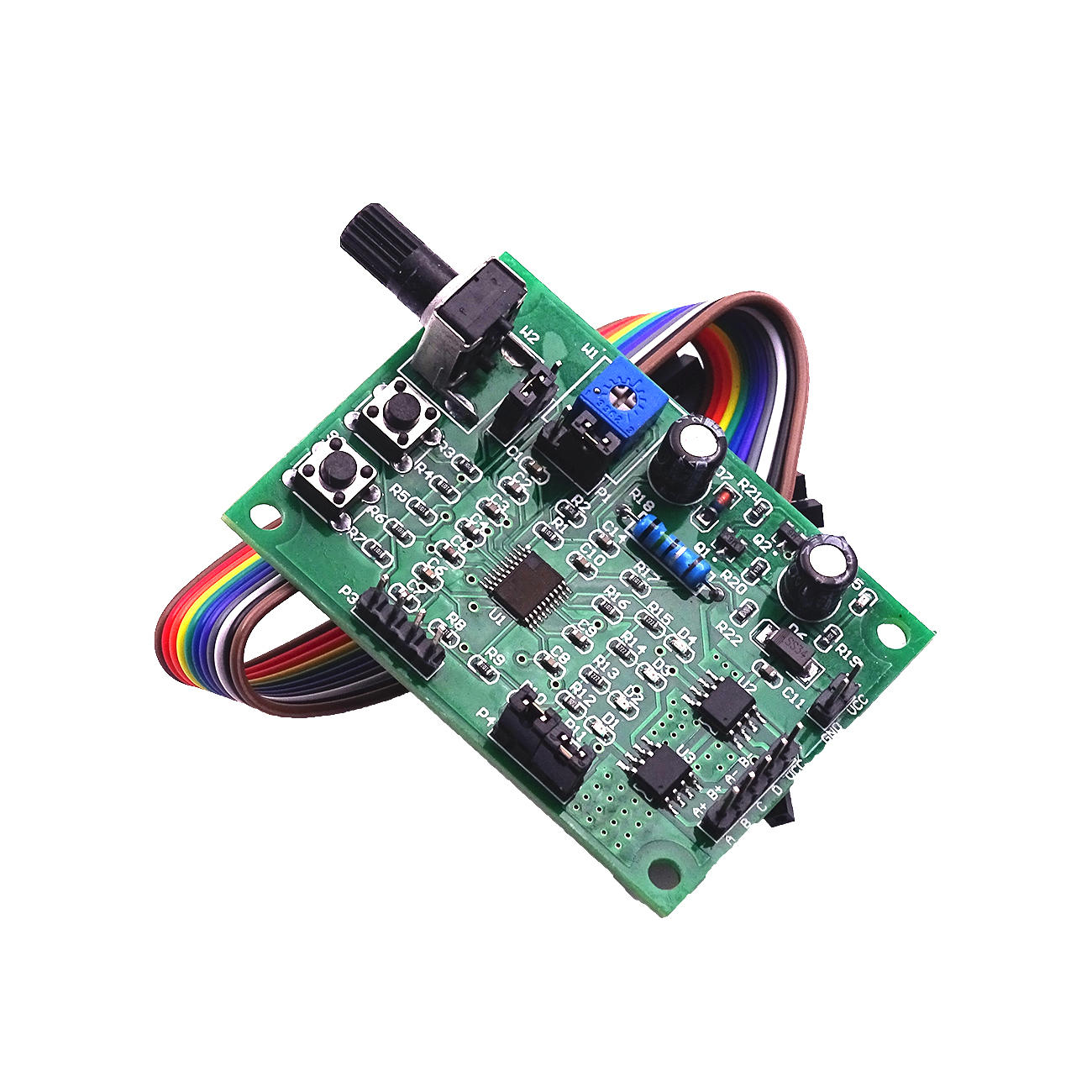

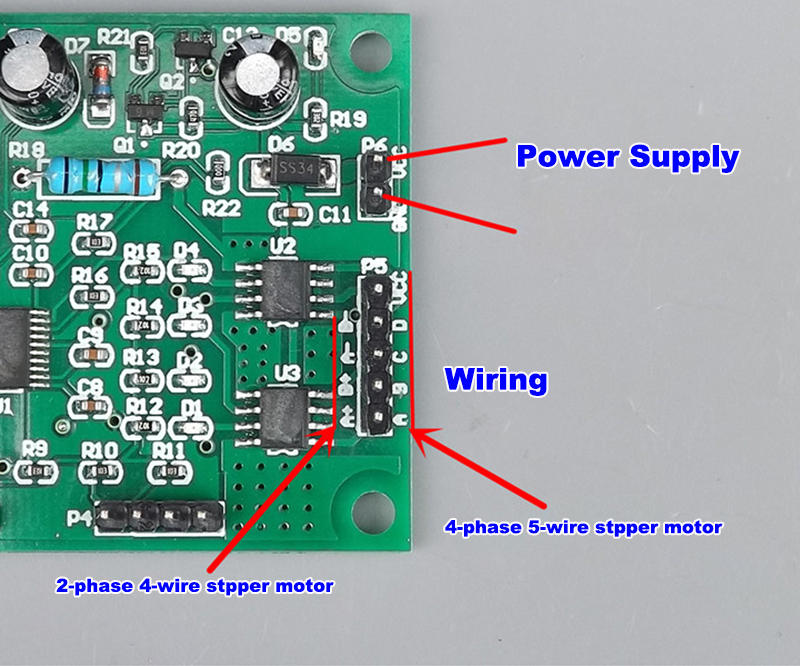

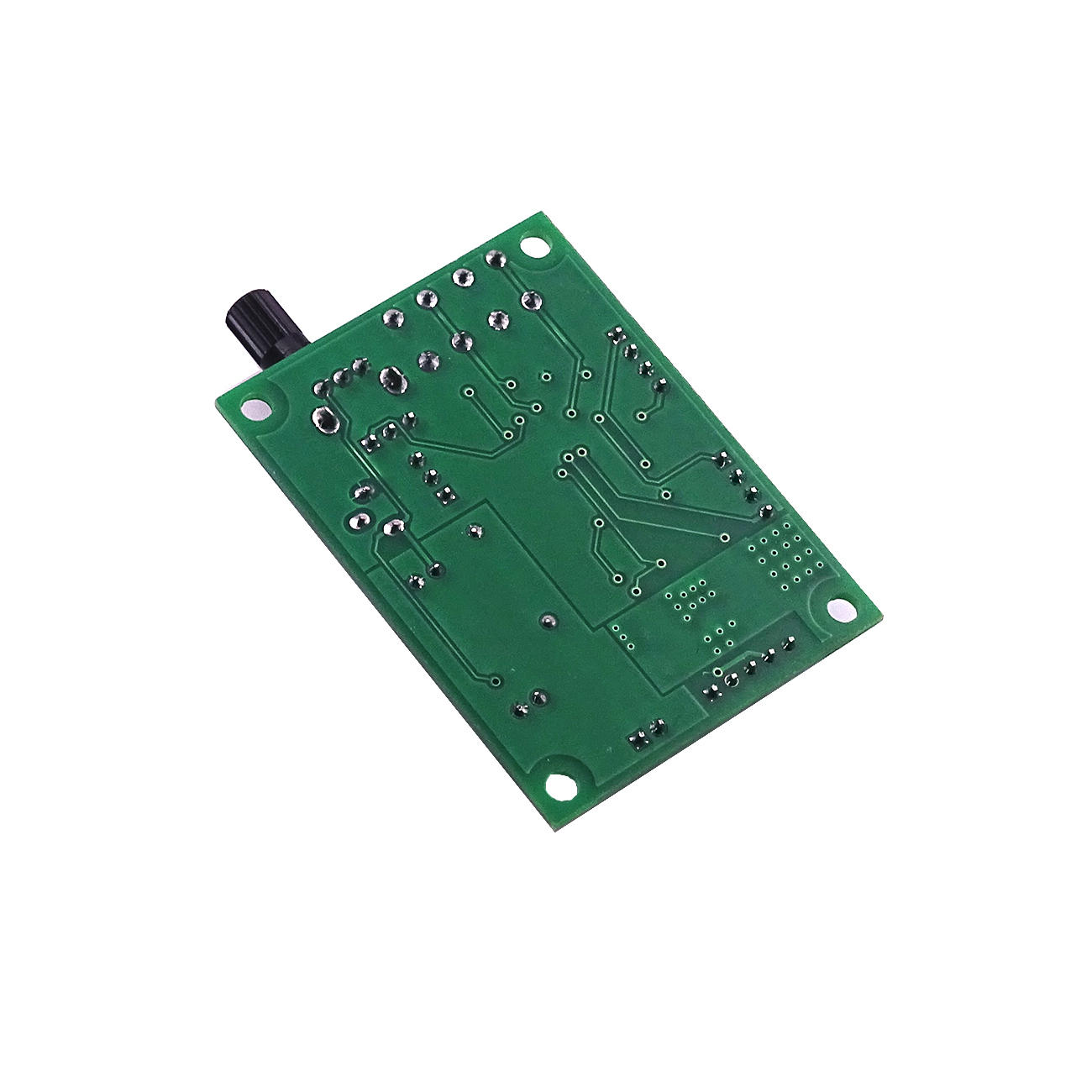

DC 5V-12V 6V stepper motor driver mini 2-phase 4-wire 4-phase 5-wire multifunctional stepper motor speed control module board

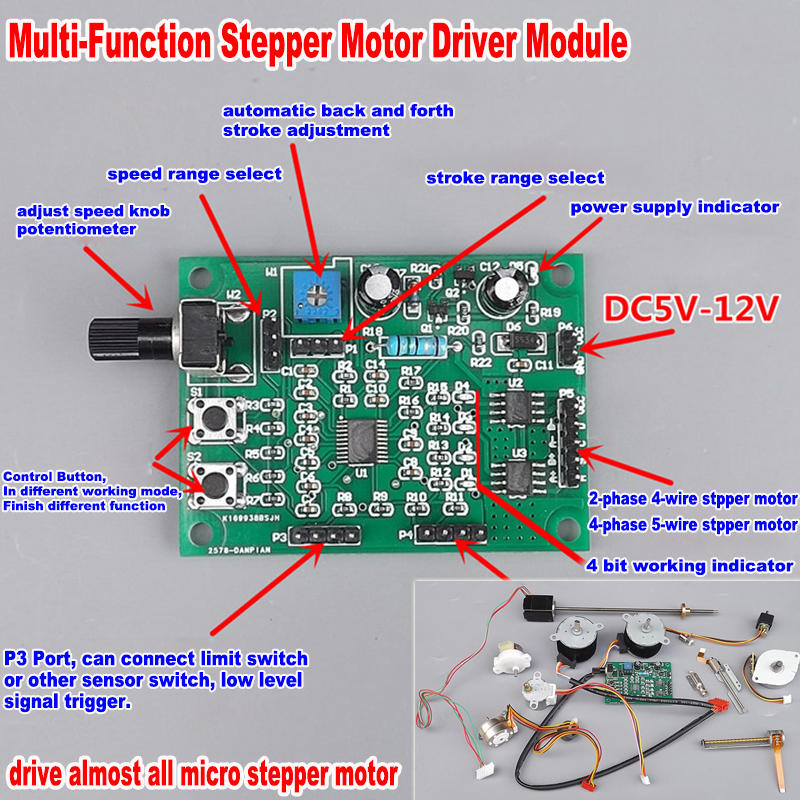

[1] Normal mode 1: S1 start/stop button, S2 forward/backward button, W2 potentiometer to adjust speed. If limit inversion is
When necessary, two limit switches can be connected to the P3 pin, and the motor movement shaft is equipped with contacts, so that
The motor will reciprocate within the travel between the two limit switches.

[2] Normal mode 2: Press the S1 button once to run forward, S2 to reverse, press any button again to stop. W2 potentiometer speed regulation
Regulation. If a limit stop is required, two limit switches can be connected to the P3 pin to stop the motor from moving
When it hits the limit switch, the motor will reverse after pressing the opposite button.

[3] Jog mode: press S1 to rotate forward, release to stop, press S2 to reverse, release to stop, W2
The potentiometer adjusts the speed. If a limit stop is required, the upper limit switch can be connected to P3.

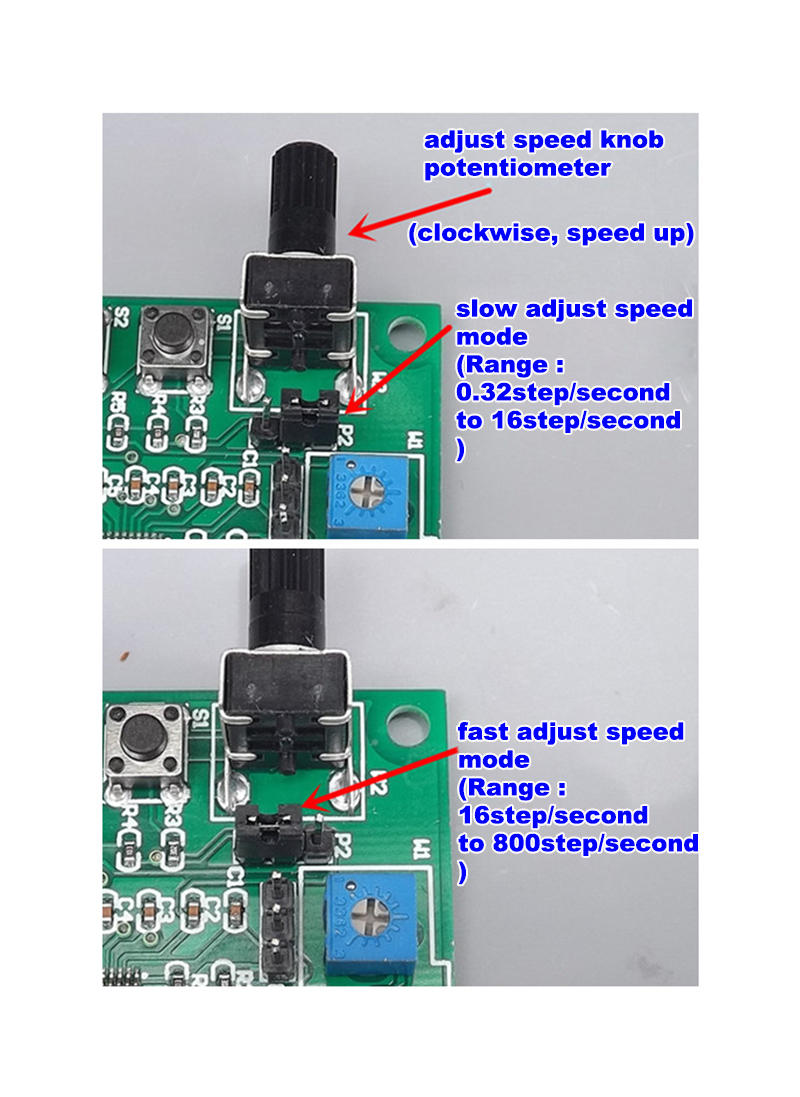

[4] Automatic shuttle mode: S1 start and stop, S2 reverse, W2 potentiometer speed regulation, W1 potentiometer adjustment
Automatic round trip steps. After starting, the motor automatically reciprocates within the number of steps adjusted by W1.
