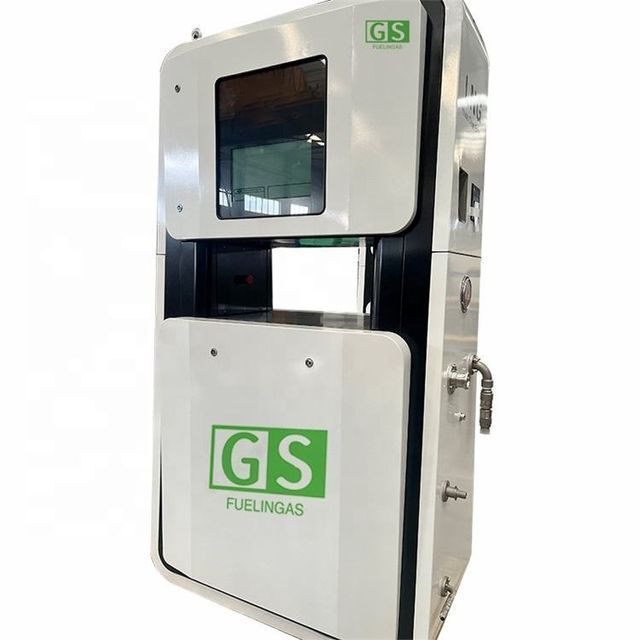

Mobile Lng CNG filling station with CNG Lng filling machine

Supplier: Chengdu Gas Trading Co., Ltd.
Region: Sichuan, China
Contact: Ms Jasmine Zhou
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, T/T	cabinet:	Stainless steel
place of origin; place of origin:	Sichuan, China	Arnbart Herudli:	<=95%
atmosphere:	86kPa-110kPa	Operating Voltage:	AC220v
Power Kate:	<=200W	lotalVolume Conger:	0-999999 99kglL Nm1
flow:	3-70kg/min	product name:	LNG dispenser
Single range range:	0-9999 99 kiloliters. cow rice

Specification

product name	LNG dispenser
Moderate:	Liquefied Natural Gas (LNG)
Flow range:	3-80kg/min
Ambient air pressure	86KPa-110KPa
work pressure	1.6MPa
strength	200w
power supply	220V 50HZ
Working power	220VAC 5A
refueling hose	1 inch stainless steel hose 4m
fuel nozzle	1 inch LNG special filling nozzle
environment humidity	<95%
ambient temperature	-25°C-50°C
pipe temperature	-196°C
measurement accuracy	+1.0%
minimum reading	0.01 kg (L, Nm3)
single range	0～9999.99 kg (liter, standard cubic meter)
Cumulative measurement range	99999999.99 kg (liter, standard cubic meter)
Gas phase hose:	1/2 inch stainless steel hose 4 m
Gas phase pipe joint:	1/2 inch quick connector

Product Description

The separator integrates a vacuum insulated tube and an insulated hose, and is compatible with a variety of mass flow meters. IC card and receipt printers are optional. It can refuel with one button and is designed with mechanical and electronic separation protection.

Functions:

1. Double-sided LCD with high-brightness backlight display unit price, quantity and amount

2. Cabinet body: stainless steel;

3. The low temperature valve is automatically controlled, with one-button processing pre-cooling and refueling functions.

4. Automatic shutdown after refueling;

5. Refuel according to the preset amount;

6. Protection function, separate coupling;

7. PTC function

8. Automatically save data when power off, display data persistently

9. The IC card vending machine has the functions of IC card management, automatic settlement and preferential unit price.

10. Long-distance data transmission.
