Price of automatic magnetic ring inductance lead shaping and correction machine
-
Supplier: Dongguan Huiyue Automation Equipment Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr HongYue Li -
Price: $997.00 / 1 - 9 sets
$965.00 / 10 - 99 sets
$933.00 / >=100 sets -
Min. Order: 1 set
Product details
| CNC system: | CNC | Gross weight per piece: | 30.000 kg |
| Cutting thickness (mm): | 0.4 - 3 mm | Marketing Type: | New Products 2020 |
| Video shipment inspection: | if | Coil Width (mm): | 2.8 - 15mm |
| Applicable industries: | manufacturing plant | Cutting width (mm): | 0.4 - 3 mm |
| State of health: | new | Cutting speed (m/min): | 35 - 40 m/min |
| Sales unit: | single product | place of origin; place of origin: | Guangdong, China |
| Wire diameter: | 0.4-3.0 (mm) | Weight (kg): | 11 |
| Single package size: | 37X22X12.3 cm | Feed form: | manual |
| Equipment size: | L370*W220*H123mm | Warranty: | 1 year |
| Core components: | Bearings, motors, pressure vessels, gears | Dimensions (L*W*H): | 370L*220W*123H |
| Main selling points: | High precision and high efficiency | Packaging Details: | Inspection-free wooden box packaging |
| Mechanical test report: | if | Core component warranty: | 1 year |
| Air source pressure: | Below 0.6MPA | Maximum number of slitting strips: | 10000 |
| Alias: | Magnetic ring inductor coil lead automatic shaping machine | Package preview: | |
| Foot length range: | 2.8-15 (mm) | weight: | 11KG |
| Coil inner diameter (mm): | 0.4 - 3 mm | brand: | Meeting month |
| Width cutting error (mm): | 0.01 - 0.02 mm | Showroom location: | not any |
2.8-15 (mm)
Product Description

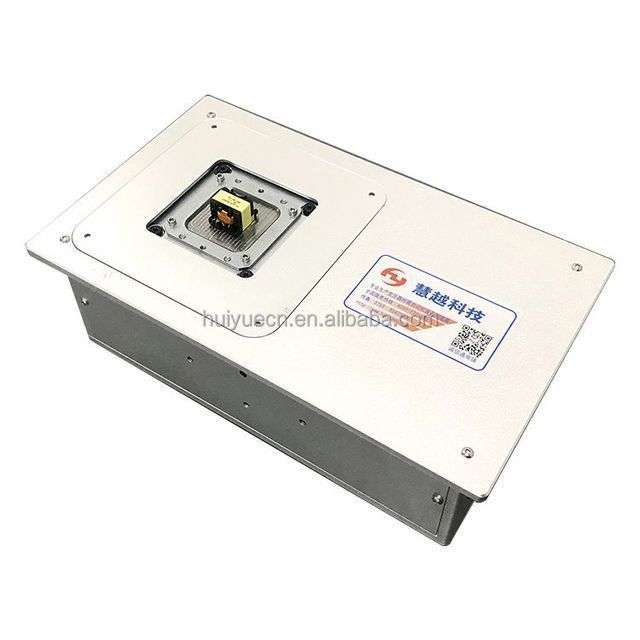

HY-J01 magnetic ring inductance coil lead automatic shaping and correcting machine price
The stitch correction machine is developed by ourselves for the stitch correction of transformers, magnetic ring inductors, filters, etc. After the stitches are corrected by this machine, they can be easily removed without damaging the stitches and frame. Insert the product directly into the round hole of the fixture, gently press down the pedal with your hand, and step on the pneumatic pedal to start the machine. The whole process is completed within 2-3 seconds. The utility model has the advantages of convenient and fast use, high processing efficiency and wide application range.
main feature
Overall small and compact. The surface of the whole machine is made of aluminum plate, and the surface is sandblasted and oxidized. The design is flat and ergonomic. Appearance The overall packaging is made of aluminum alloy, which makes the whole machine lighter and more beautiful in appearance.
The fixture is made of two kinds of steel materials with uniform appearance and equipped with fool-proof pins for easy and accurate replacement.
Installation Precautions
1. The 8MM joint of the filter is connected to the air inlet, and the other 6MM is connected to the air duct of the machine. Check the water and water filters daily. There is a water outlet at the lower end of the water cup, and lightly press the water to avoid affecting the quality of the cylinder.
Note: If the air pressure is adjusted below 0.6MPA, try to reduce the air pressure of the rebound pin.
2. 220V to 24V external power conversion, safe and reliable. The two electrical connections for the foot switch and the power supply must be connected as marked. Four: parameters
1. Equipment size: length 370*width 220*height 123, weight about 11KG
2. Single-station quick correction needle, suitable for splicing pitch 2.3-55, row pitch 2.3-55, and product size between 5-60.
3. The main components are made of S45C steel, the shell is made of 5052 aluminum plate, and the surface is oxidized.
4. The jig material is A3, 304 stainless steel, brass and other materials, depending on the product. Five: Function
1: Any high and low frequency transformers, inductance coils, magnetic rings, and digital display pins can be easily adjusted, and the fixtures are easy to replace, fast, wide in range, and easy to fine-tune.
2: Main body equipment: now it is mainly manual, which is convenient for adding automatic attack energy, and can be connected to automatic lines.
Adjustment instructions
Adjusting the machine is mainly to loosen and tighten 8 adjustment screws, and adjust to the position where the round holes of the upper and lower plates of the fixture are staggered during operation. For products, when identifying the inclination direction of the pins/the overall inclination to the diagonal direction, the 1#2# screws are slightly tight, and the 5#6# screws are slightly loose. The other direction is the same. Be careful not to overtighten and try not to get stuck.
maintainance
After about a week of use, disassemble the No. 2 panel, use a spatula to clean the rosin tin powder stuck inside, and brush it clean. Try to keep the machine clean during use to prolong the service life of the machine. Note: Individual products are dirty after use, please clean them more.electronic
The stitch correction machine is developed by ourselves for the stitch correction of transformers, magnetic ring inductors, filters, etc. After the stitches are corrected by this machine, they can be easily removed without damaging the stitches and frame. Insert the product directly into the round hole of the fixture, gently press down the pedal with your hand, and step on the pneumatic pedal to start the machine. The whole process is completed within 2-3 seconds. The utility model has the advantages of convenient and fast use, high processing efficiency and wide application range.
main feature
Overall small and compact. The surface of the whole machine is made of aluminum plate, and the surface is sandblasted and oxidized. The design is flat and ergonomic. Appearance The overall packaging is made of aluminum alloy, which makes the whole machine lighter and more beautiful in appearance.
The fixture is made of two kinds of steel materials with uniform appearance and equipped with fool-proof pins for easy and accurate replacement.
Installation Precautions
1. The 8MM joint of the filter is connected to the air inlet, and the other 6MM is connected to the air duct of the machine. Check the water and water filters daily. There is a water outlet at the lower end of the water cup, and lightly press the water to avoid affecting the quality of the cylinder.
Note: If the air pressure is adjusted below 0.6MPA, try to reduce the air pressure of the rebound pin.
2. 220V to 24V external power conversion, safe and reliable. The two electrical connections for the foot switch and the power supply must be connected as marked. Four: parameters
1. Equipment size: length 370*width 220*height 123, weight about 11KG
2. Single-station quick correction needle, suitable for splicing pitch 2.3-55, row pitch 2.3-55, and product size between 5-60.
3. The main components are made of S45C steel, the shell is made of 5052 aluminum plate, and the surface is oxidized.
4. The jig material is A3, 304 stainless steel, brass and other materials, depending on the product. Five: Function
1: Any high and low frequency transformers, inductance coils, magnetic rings, and digital display pins can be easily adjusted, and the fixtures are easy to replace, fast, wide in range, and easy to fine-tune.
2: Main body equipment: now it is mainly manual, which is convenient for adding automatic attack energy, and can be connected to automatic lines.
Adjustment instructions
Adjusting the machine is mainly to loosen and tighten 8 adjustment screws, and adjust to the position where the round holes of the upper and lower plates of the fixture are staggered during operation. For products, when identifying the inclination direction of the pins/the overall inclination to the diagonal direction, the 1#2# screws are slightly tight, and the 5#6# screws are slightly loose. The other direction is the same. Be careful not to overtighten and try not to get stuck.
maintainance
After about a week of use, disassemble the No. 2 panel, use a spatula to clean the rosin tin powder stuck inside, and brush it clean. Try to keep the machine clean during use to prolong the service life of the machine. Note: Individual products are dirty after use, please clean them more.electronic
|
Model: HY-J01 |
|
Working voltage: 220V to 24V external power conversion |
|
Pressure requirement: below 0.6MPA |
|
Wire diameter: 0.4-3.0 (mm) |
|
Foot length range: 2.8-15 (mm) |
|
Feeding method: manual |
| Machine size: 370L*220W*123Hmm. |
|
Weight 11KG |
our service
24 hours online technical support and 100% quality guarantee for 12 months, except for wearing parts.
Our vision: Create a century-old brand and achieve a century
Our mission: to promote the progress and development of the most cost-effective automation technology
Our Values: Customer First, Teamwork, Loyalty, Dedication, Passion, Dedication
Our business purpose: to satisfy the material and spiritual happiness of customers, employees and enterprises
Our quality policy: quality is life, progress is endless; service-oriented, innovation wins
Our Promise: No Excuses
Our two styles: serious and fast
Our three gratitudes: gratitude to customers for creating my performance, gratitude to my career platform company, gratitude to colleagues who work with me
