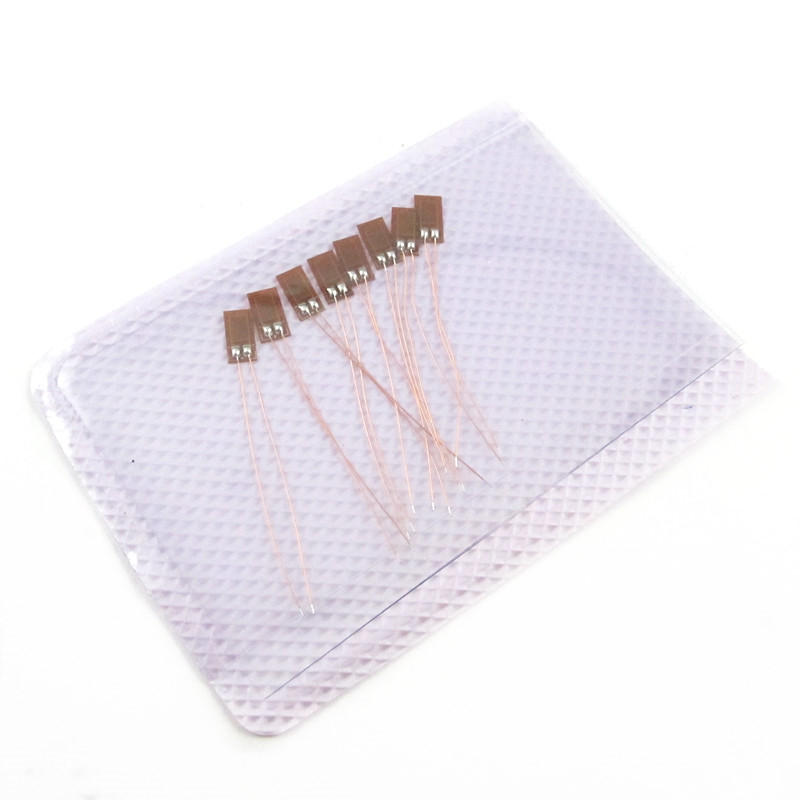

Foil Type Bf120-3aa Strain Gauge High Quality Precision Resistance Strain Gauge for Pressure Sensor/Load Cell
- 0.35 10 - 99 pieces
- 0.30 100 - 499 pieces
- 0.26 500 - 999 pieces
- 0.23 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| resistance: | 120±1Ω | output: | 3-10V |
| Substrate: | Novolak epoxy resin | Mesh Material: | Constant alloy |
| Mechanical Hysteresis: | 1.2 μm/m | Types of: | Strain gauge |
| Package preview: | Sensitive grid size: | 3.0*2.44mm | |
| place of origin; place of origin: | Guangdong, China | brand: | new kolding |
| port: | Shenzhen | usage: | Load Cell Strain Gauge |
| model: | BF120-3AA | Applicable to room temperature: | -30- +60°C degrees |
| Sensitivity factor: | 2.0±1% | Average Tolerance: | ≤0.3Ω |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Base size: | 6.6*3.4mm |
| Strain limit: | 20000μm/m |

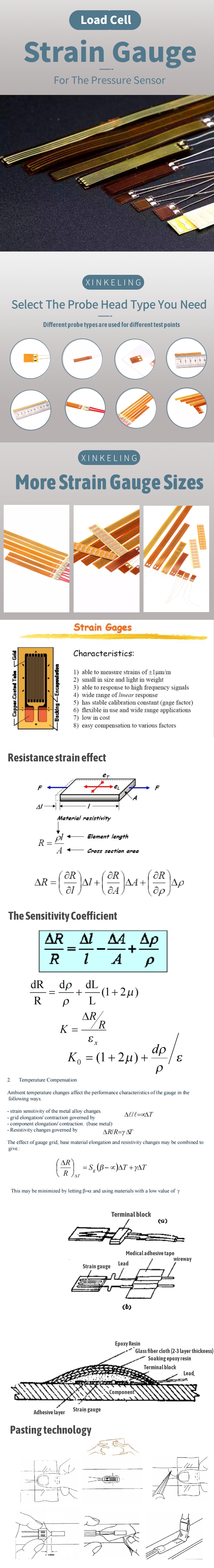

Product Description
Specification
thing | value |
model | BF350-3AA |
Types of | Strain gauge |
place of origin; place of origin | China |
Guangdong | |
brand | new kolding |
usage | Load Cell Strain Gauge |
output | 3-10V |
Resistance | 120±1Ω |
average tolerance | ≤0.3Ω |
basic size | 6.6*3.4mm |
Sensitive grid size | 3.0*2.44mm |
Sensitivity coefficient | 2.0±1% |
Applicable to room temperature | -30- +60°C degrees |
Substrate | Novolak epoxy resin |
mesh material | Constant alloy |
strain limit | 20000μm/m |
mechanical hysteresis | 1.2 μm/m |
