ridge moulder bound farming

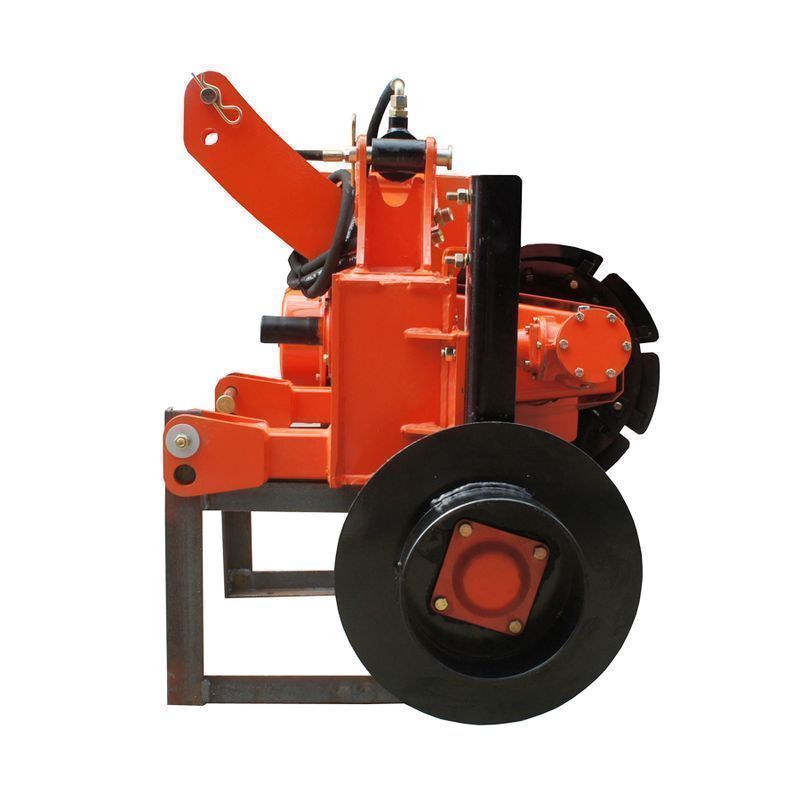

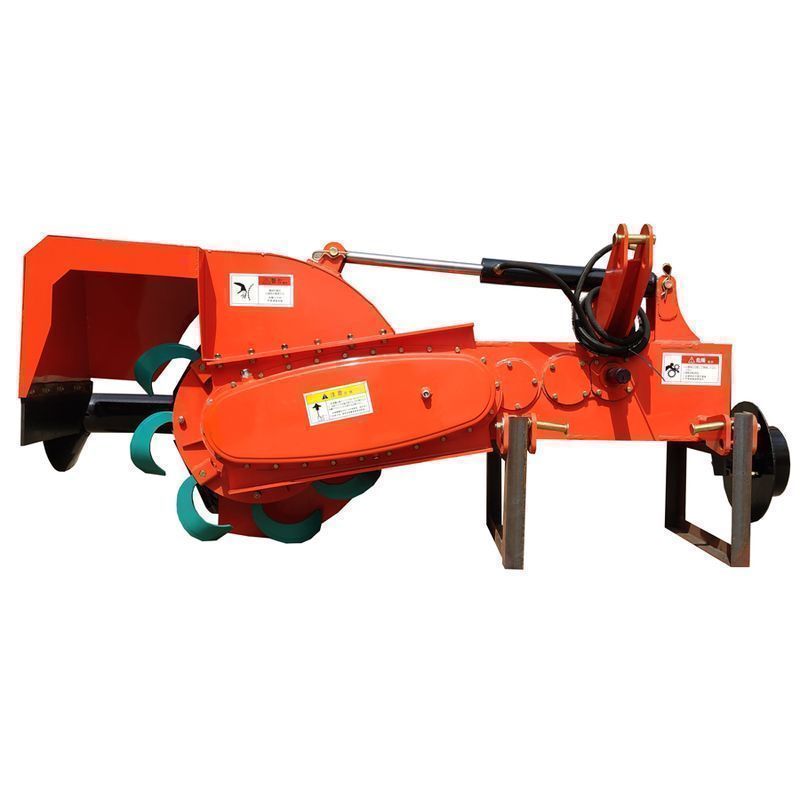

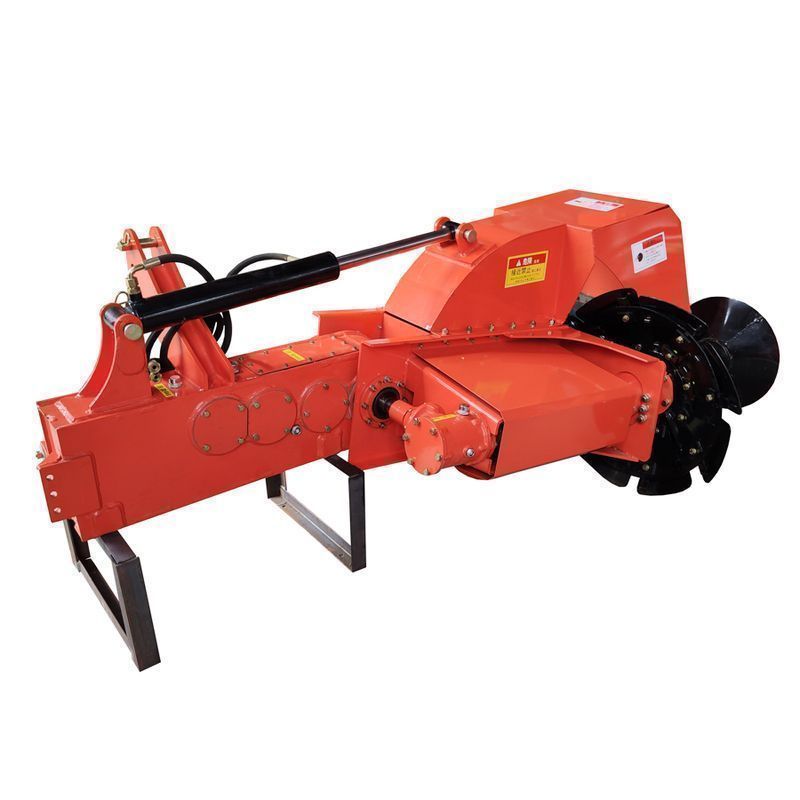

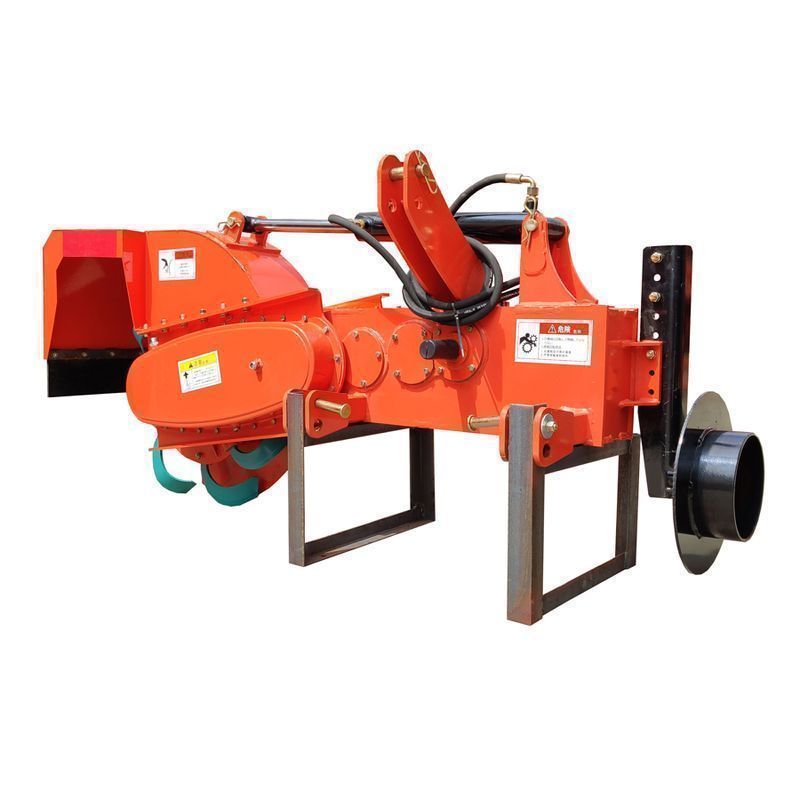

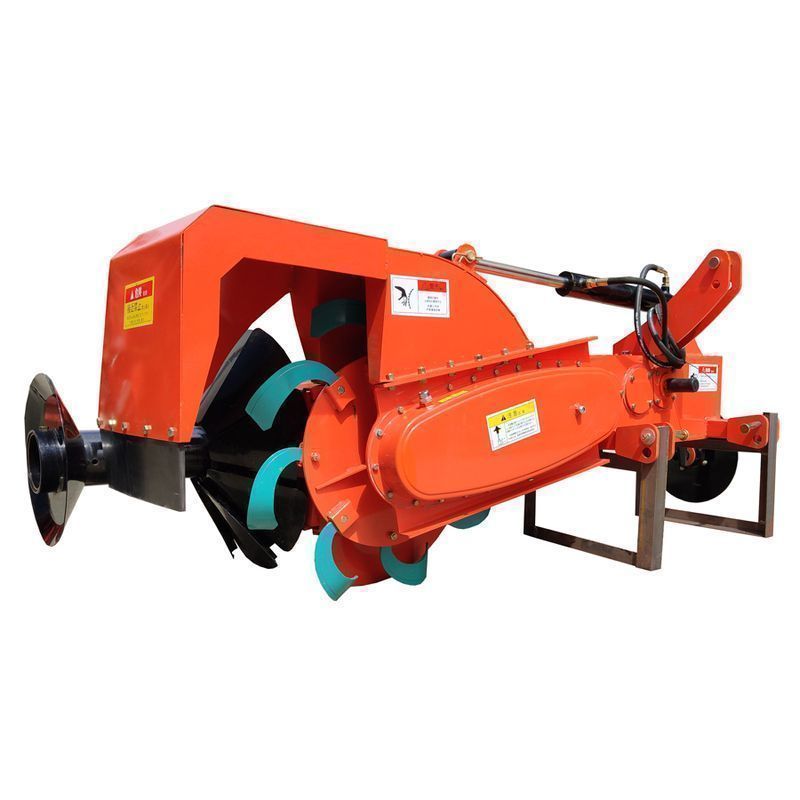

Single side rice field Ridge plastering machine

Configuration tractor: 40-90HP.

Drive type: all gear drive

Ridge height: 25-30cm,Top width 25-30cm，bottom width50-60cm .

Application range: Paddy field ridges, building, repairing, especially large-area operations are very convenient.

Model ZGJ-300H

Name Single side ridging making machine

Work speed 1200-2000 m/h

Configuration tractor More than 29.4 kw   (40HP) Tractor

Transmission type tractor PTO / shaft drive

on-link mode After the tractor mounted

Height adjustment After the tractor mounted / hydraulic cylinder adjust

Oil consumption ≤3kg/km

Overall size Length 950mm

Width  2040 mm(working) width1150 mm (moving)

Height 1000 mm

Net weight 400 KG

Speed 240-280 r/min

Optimum operation conditions The soil moisture content 30% - 60%
