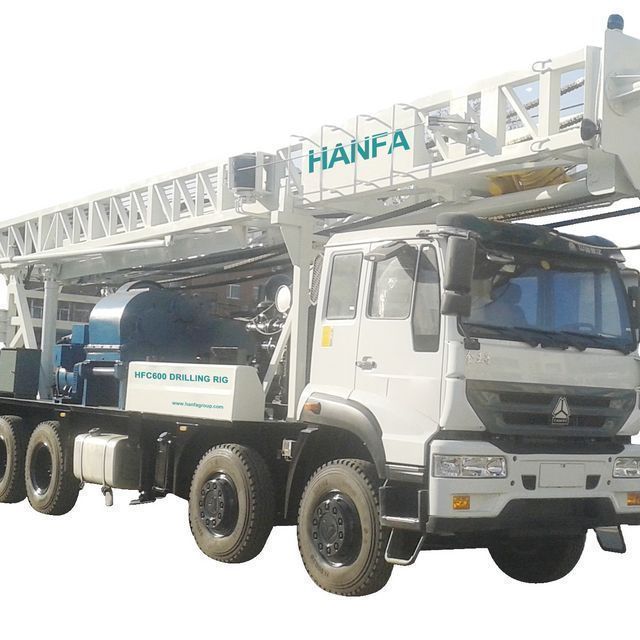

Vehicle-mounted 600m deep HFC600 water well drilling rig

Supplier: Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.
Region: Henan, China
Contact: Mr Vincent Guo
Price: $10000.00 / 1 - 1 sets
$8000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

weight:	85000 kg	Drilling diameter:	300mm, 200mm, 450mm, 600mm, 500mm
product name:	600m water well drilling rig	Warranty:	1 year
port:	Qingdao	Power type:	diesel engine
Applicable industries:	Farms, home use, construction, energy and mining	Dimensions (LWH):	1332525004215mm
Drive form:	8*4	brand:	high frequency
Kelly (mm):	10810810500	Showroom location:	not any
Inner tank diameter (mm):	100-140	Marketing Type:	New Products 2021
flexibility:	mobile	Packaging Details:	Standard export packing or as your request
Mechanical test report:	if	usage:	well
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Supply capacity:	30 sets per month
Voltage:	diesel engine	Input power kW(HP):	95 (130)
Straw diameter:	152mm	Piston stroke (mm):	160
Core component warranty:	1 year	Hydraulic hoist capacity (KN):	20
State of health:	new	Core components:	motor, engine
Package preview:		Main selling points:	automatic
Drilling depth:	600 meters	place of origin; place of origin:	Henan, China
Video shipment inspection:	if	application:	industry and agriculture
Types of:	Vehicle-mounted water well drilling rig

Product Description

main feature:

◎HFC600 truck-mounted drilling rig is a direct-rotation drilling rig. The chassis of the truck adopts the 8×4 special chassis of Sinotruk brand, and the 11.00R20 steel off-road tread has good off-road performance. ◎The drilling rig is compact in structure, and the chassis engine adopts D10.27-40 diesel engine with a power of 196kw (high power). The drilling rig is equipped with an independent diesel engine (COMMINS 6BTA5.9-C180) with a power of 132kw. It can not only meet the drilling requirements, but also reduce energy consumption , very affordable. ◎The design principle of this drilling rig is to use advanced hydraulic cylinders for drilling, stepless lifting, and automatic drilling can be realized. The drilling speed can be automatically adjusted for different geological conditions.

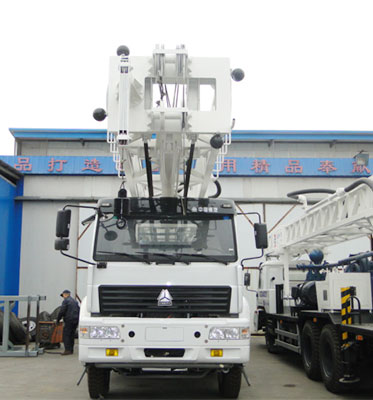

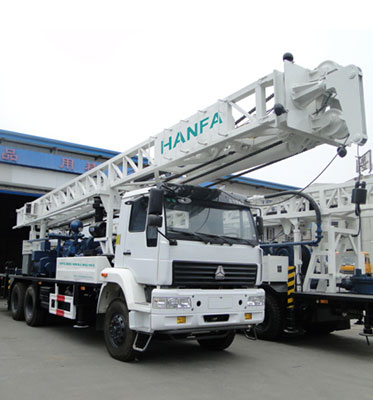

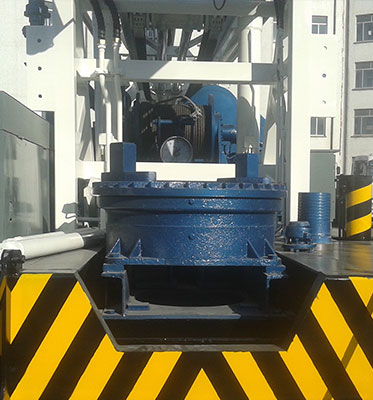

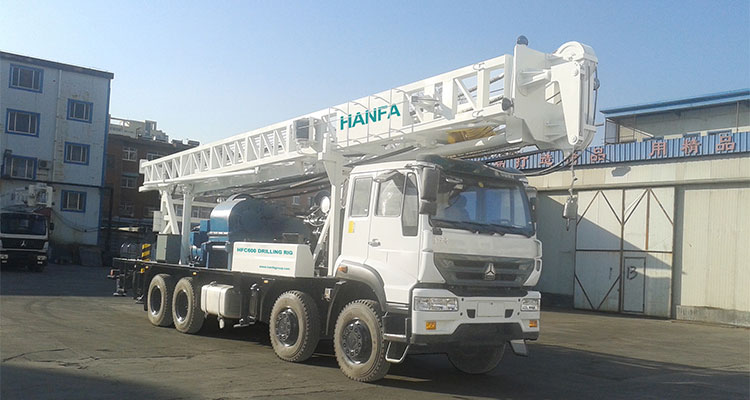

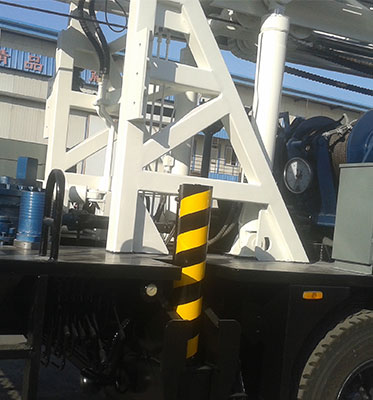

detailed image

Drilling depth (M)					600
Drilling diameter (mm)					500
Turntable speed (r/min)					110;96;56;36;21;12 (reverse)
Turntable torque (KN.m)					4.3,5,8.5,13.,22.7,40 (reverse)
Oil pump displacement (kN/MPa)					245/20
Oil supply capacity of oil pump (kN/MPa)					59/10
Hoist Single Rope Lifting Weight (KN)					50
Main hoist capacity (KN)					300
Single rope lifting capacity of tooling winch (KN)					20
Hydraulic hoist capacity (KN)					20
Hook weight (KN					300
Mast bearing capacity (KN)					360
Mast height (mm)					11800
Swivel bearing capacity (t)					36
pipeline	Kelly (mm)			108×108×10500
pipeline		Drill pipe (mm)			Ф89×10×9000
3NB-130 mud pump	Inner Diameter(mm)			100-140
		Piston stroke (mm)			160
		Theoretical flow (L/S)			8.4 10.3 12.2 14.3 16.6
		Rated pressure (Mpa)			10 8 7 6 5
		Straw diameter			152mm
		Discharge pipe diameter			65mm
		Input powerkW(HP)			95 (130)
truck chassis	drive form			8*4
		engine	brand	Dongfeng brand
				Rated power (HP)	280
				Emission Standards	Europe II
drill rig	Model			Cummins brand 6BTA-C180
drill rig		Rated power (kW)			Diesel power: 132
Maximum speed (Km/h)					75
Shipping size (LWH) (mm)					13325×2500×4215
