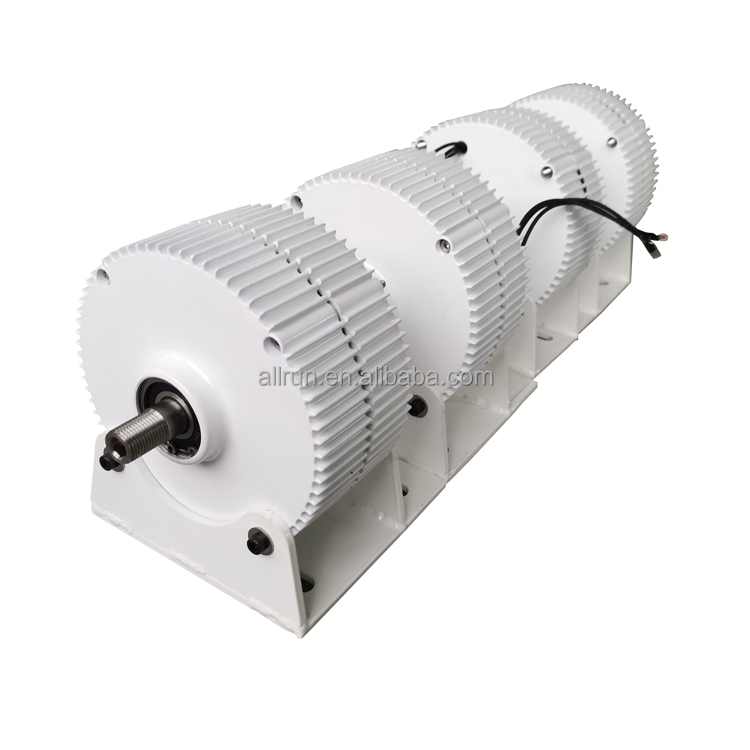

Hot sale 150kw 400V permanent magnet vawt generator

Supplier: Qingdao Allrun New Energy Co., Ltd.
Region: Shandong, China
Contact: Ms li yan
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

brand:	ALL RUN	Top net weight (kg):	According to speed and power
Rated speed (r/m):	100-300 RPM or customized	Factory direct sales:	yes
Package preview:		product name:	magnet generator for sale
Rated voltage (v):	48V-450V or customized	strength:	150KW
custom made:	yes	model:	ARPMG-150KW
Certification:	CE TUV	shell material:	Carbon steel
payment terms:	L/C, Western Union, D/P, T/T	place of origin; place of origin:	Shandong China
Warranty:	10 years	port:	Qingdao
Rated torque (N*M):	According to speed	Voltage:	110V to 600V
OEM ODM service:	yes	Supply capacity:	Fast delivery time for 50000 pcs per month magnet generator for sale
Packaging Details:	POLYWOOD CASE FOR SALE MAGNETO GENERATOR

Model	ARPMG
Rated power (w)	150kw
Maximum power (w)	100 kW
Rated voltage (v)	400V (can be adjusted according to your requirements)
Rated speed(r/m)	500 RPM (Adjustable to customer size)
Top net weight(kg)	1200kg (depending on speed and power)
Output current	air conditioner
*Rated torque(NM)**	2865 Nm (according to speed)
dynamo	Three-phase permanent magnet synchronous generator
insulation level	horizontal
service career	over 25 years
bearing	HRB or for your order
Shaft material	steel
Shell material	Carbon steel
Permanent magnet material	Rare earth NdFeB
degree of protection	IP54
lubricating	grease
Operating temperature	-40°C - 80°C

A: Grid TIE system

B: off-grid system

Allrun can provide customized generators according to customers' requirements for voltage, speed, power, frequency, etc.

rated power	rated speed	Rated voltage	frequency
0.2KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
0.3KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
0.5KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
1KW	20rpm~600rpm	12V~220Vac	10Hz~60Hz
2KW	20rpm~1000rpm	12V~400Vac	10Hz~60Hz
3KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
5KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
10KW	20rpm~1500rpm	120V~690Vac	10Hz~60Hz
15KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
20KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
25KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
30KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
50KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
80KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
100KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
150KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
200KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
250KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
300KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
500KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
700KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
800KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
1 MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
2 megawatts	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
3 MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
4 MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz
5 MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz

1. Generator type

Permanent magnet synchronous direct drive three-phase alternating current

2. Customizable

a. Customized voltage, speed, power, frequency.

b. Customized shaft size, spline shaft, double shaft extension, flange can be used.

3. Various structural designsVertical shaft, horizontal shaft, inner rotor, outer rotor, disc type can be customized. Therefore, as long as we understand your requirements, we can provide you with suitable products.

4. Feature 1

a. Gearless, direct drive, low speed generator. b. Low starting speed due to low cogging effect and resistance torque design. c. High standard, quality components for harsh and extreme environments of wind turbines.

5. Feature 2

d. The generator is designed with special materials and has undergone anti-corrosion and oxidation treatment.

e.Designed for reliable and long service life at long term full output.

F.Patent protected design.

We are a subsidiary of Qingdao Aorun Group, one of the high-tech enterprises specialized in solar panels, solar power projects and permanent magnet generators (PMG).

We have our own solar panel factory (and solar electrical products), wind energy product factory (including PMG), so we can control the quality of products very well. We have our own 25-person QC department. We also have 10 people who are experts in designing and installing solar street lights, solar power stations (solar systems) and solar water pumps of all sizes and models, solar water heaters as well as solar appliances, wind turbine systems and wind appliances. We are honored for excellent work in municipal engineering, road engineering, housing development, island engineering development, heating power supply and so on.

Currently, our main products include solar system products, such as various types of solar panels and solar systems, solar photovoltaic applications, permanent magnet generators and wind turbines.

If you are interested in our products, please feel free to contact us for more information. We look forward to working with you!

Q1: How do we use PMG?A: ALLRUN supply all kinds of permanent magnet generators, which are suitable for the following equipment drives: a. Wind drive ---------- wind power generator b. Water drive ------- hydro power generator c . Drive with motor d. Drive by motor e. Drive by perpetual motion machine f. Drive by test device g. Create drive by yourself h.Q2. What size can you supply?A: We supply 100w to 1000kw PMG.Q3. Is your PMG three-phase?A: Yes, our PMGs are three-phase.Q4. What is the RPM of your PMG?A: We can produce different RPM for the same design according to your requirements.Q5. Can we get different colors?A: Yes, yes, we can adjust according to your needs, such as white, black and so on.
