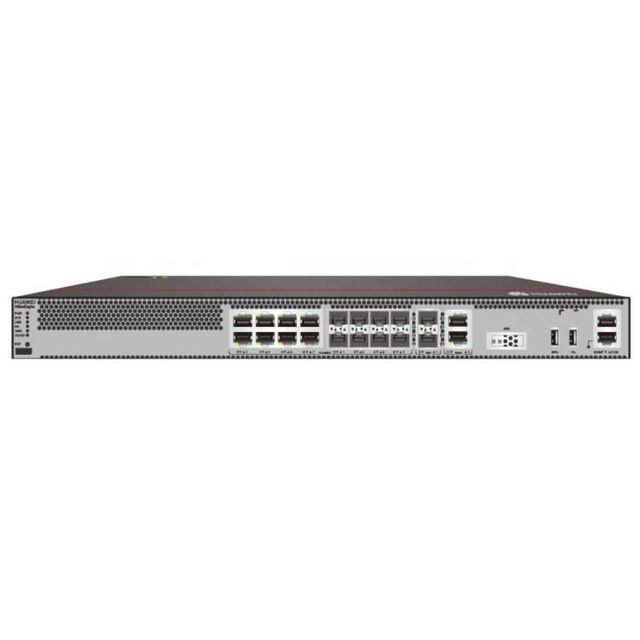

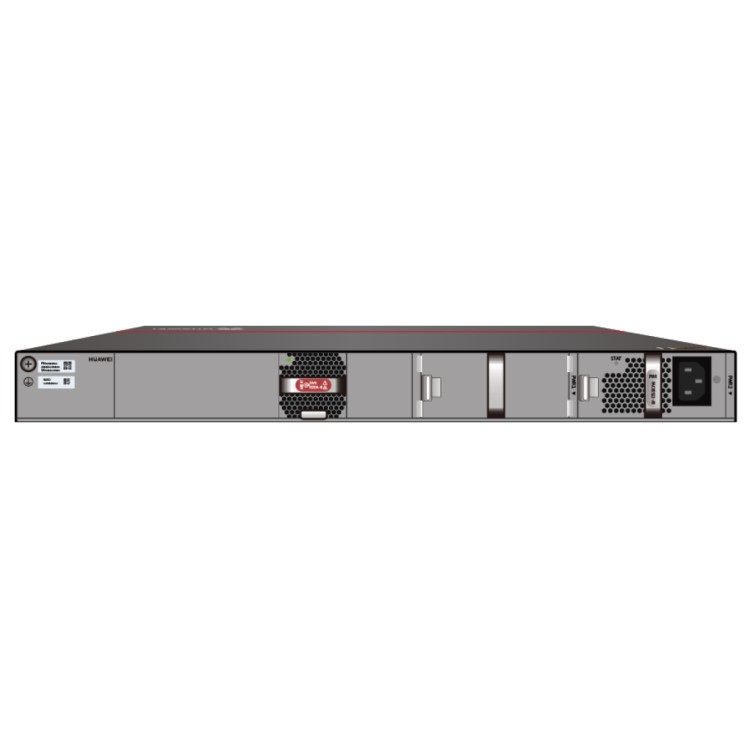

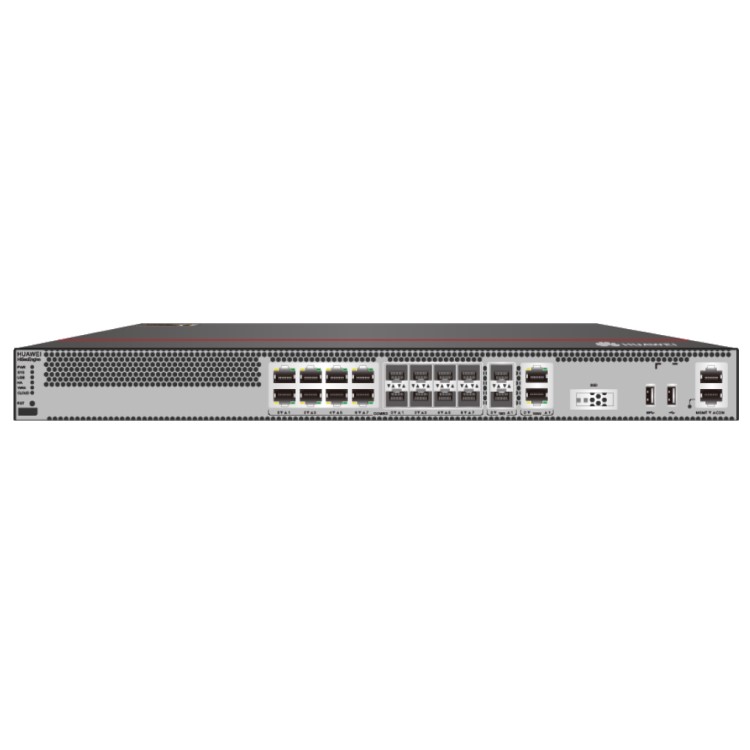

USG6585E-AC USG6585E Series USG6500E Next Generation Enterprise Security Firewall 02353ADA 2*GE WAN+8*GE Combo+2*10GE SFP+

Click here to contact
Product details
Rated input voltage:100V~240V,50Hz/60HzPackaging Details:carton
Number of power modules:1Chassis height:1 unit
use:otherport:12
Maximum power consumption:40WModel:USG6585E
type:corporate firewallplace of origin; place of origin:Guangdong, China
model:USG6585ESupply capacity:100 pieces per month
Long-term working temperature:0℃~45℃Weight without package:5.8 kg
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramDimensions (W*D*H):442mm x 420mm x 43.6mm
Storage temperature:-40℃~70℃
Product Description
USG6585E-AC Firewall
Specification
describe Part Number Model first supported version Comment
USG6555E AC Host(2*GE WAN+8*GE Combo+2*10GE SFP+,1 AC power) 02353AEK USG6555E-AC V600R007C00 -



thing Specification
installation type
  • shelf
  • workbench
Cabinet installation standard Cabinets with a depth of 600 mm or more
Dimensions without packaging (H x W x D) [mm (in)] 43.6 mm x 442 mm x 420 mm (1.72 in x 17.4 in x 16.54 in)
Packaged Dimensions (H x W x D) [mm (inches)] 220mm x 550mm x 530mm (8.66" x 21.65" x 20.87")
Chassis height [U] 1 unit
Packaged weight (base configuration) [kg(lb)] 8.75 kilograms (lbs)
Weight without packaging (base configuration) [kg(lb)] 5.8 kilograms (lbs)
CPU 1 CPU, 4 cores/CPU, up to 1.4 GHz
memory DDR4 4GB
flash memory

32MB
flash memory 2GB
hard disk optional. M.2 SSD (240GB), hot-swappable.
console port RJ45
Eth management port RJ45
Maximum power consumption [W] 40 watts
Maximum heat dissipation [BTU/hour] 136.8 BTU/hour
MTBF [year] 68.98 years old
MTTR [hours] 2 hours
Power supply built-in air conditioner
Number of power modules 1
Rated input voltage [V] 100 volts to 240 volts, 50 Hz/60 Hz
Input voltage range [V] 90 volts to 290 volts, 47 Hz to 63 Hz
Types of fans pluggable
Number of fan modules 1
cooling The fan module is located at the air outlet of the system.
Airflow direction Front air outlet Rear air outlet
Maximum number of 10GE ports 2
Maximum number of GE ports 8
Maximum number of electrical ports 8
Redundant power supply Support 2 power modules to achieve 1+1 power redundancy.
Long-term working temperature [°C(°F)] 0°C to 45°C
Storage temperature [°C(°F)] -40°C to 70°C
Long-term working relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage Relative Humidity [RH] 5% RH to 95% RH, non-condensing
Long-term working height [m(ft.)] 0m to 5000m
Storage height[m(ft.)] 0m to 5000m
