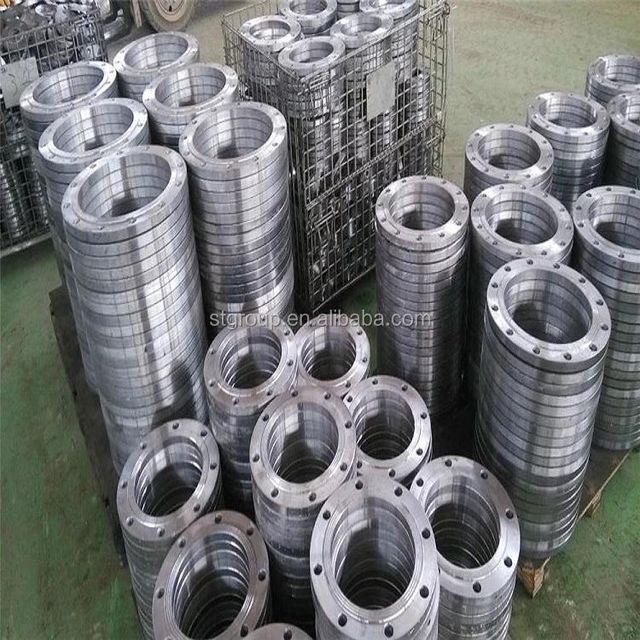

Various flanges/carbon steel flanges/sorf/wnrf/blind flanges

sorf/wnrf/blind flange

Hebei Shengtian Pipe Fittings Group has advanced high-quality steel flange equipment

1) ANSI B16.5, ASME B16.47 flange

Size range: 1/2" to 80" DN15 to DN2000

Designs: Weld Neck, Slip, Blind, Socket, Threaded, Lap

Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#

Butt welding flange wall thickness: STD, SCH40, SCH80, SCH160. SCHXXS

Material: carbon steel A105, stainless steel 304/304L, 316/316L

Coating: black paint, yellow transparent paint, hot and cold galvanized

Packing: seaworthy plywood case, wooden pallet

2) EN1092-1 flange

Size range: DN15 to DN2000

Design: Type 01 Plate Flange, Type 02 Loop Flange, Type 05 Blind Flange, Type 11 Welding Neck

Type 12 slip-on flange, Type 13 threaded flange

Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100

Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L

Coating: black paint, yellow transparent paint, hot and cold galvanized

Packing: sea plywood box, wooden pallet

3) Standard flange

Size range: DN15 to DN2000

Design: sliding flange DIN2573, 2576, 2502, 2503, 2543, 2545

Butt welding flange DIN2631, 2632,2633,2634,2635

Blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40

Threaded flange DIN2565, 2566, 2567, 2567

Loose flange DIN 2641,2642,2656,2673

Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404

Coating: anti-rust oil, transparent paint, hot and cold galvanized

Packing: sea plywood box, wooden pallet

4) National standard flange

Size range: DN15 to DN 2000

Design: plate flange 12820-80, butt welding flange 12821-80

Pressure: PN6, PN10, PN16, PN25, PN40

Material: carbon steel CT-20, stainless steel 304/304L, 316/316L

Coating: anti-rust oil, hot and cold galvanized

Packing: sea plywood box, wooden pallet

5) Japanese flange

Specification ragne: 15A to 2000A

Design: SOP, BIND, SOH,

Pressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K

Material: carbon steel SS400, stainless steel SUS304, SUS316

Coating: anti-rust oil, hot and cold galvanized

Packing: sea plywood box, wooden pallet

Material: Carbon steel: ASTM A105, A350 LF2, A694, etc.

Stainless Steel: ASTM A182 F304, 304L, , F304L, F316, 316L, AISI 304, AISI 321

Alloy steel: ASTM A182 A182 F12, F11, F22, F5, F9, F91, etc.

Hebei Shengtian Pipe Fittings Group Co., Ltd. was established in 1989. We have been in this line for over 25 years. It covers an area of ​​100,000 square meters, with a factory building of 25,000 square meters and a registered capital of 7.5 million US dollars.

There are more than 360 employees, including more than 30 professional and technical personnel.

Main product range: steel elbows, tees, elbows, reducers, caps, forged flanges and sockets, threaded joints.

Exporting countries and regions: UK, US, Russia, Germany, Turkey, Serbia, Bulgaria, Dubai, Canada, Egypt, Nigeria, South Africa, Vietnam, Panama.

Our ultimate goal is to provide high quality products with more competitive prices and better services. Help our customers win more orders. So as to win-win future.

Online eddy current testing. X-ray fault detection, direct reading spectrometer, impact testing machine. Physical and chemical testing, manganese phosphorus silicon chemical analyzer, tensile test, hardness tester, etc.

Hebei Shengtian Pipe Fittings Group Co., Ltd. has a variety of advanced equipment with international standards, perfect quality equipment, reasonable testing methods, and a high-quality testing team, providing a good guarantee for each product leaving the factory.

Used in petroleum, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction, etc.

Package:In wooden case, pallet or according to customer's requirement

Shipping:Tianjin Port, Ningbo Port, Shanghai Port and other major ports in China.

1. Q: Are you a factory or a trading company?
A: We are a factory. We also have brother factories for other steel business. Shentian is a group limited company.

2. Q: Where is your factory located? How can I get there?

A: Our factory is located in Cangzhou City, China, about 40 minutes from Cangzhou West Railway Station to our factory. 120 kilometers away from Tianjin International Airport. Warmly welcome you to visit us!

3. Q: Can I get some samples?

A: Yes, we are honored to offer you free samples.

4. Q: How does your factory do regarding quality control?

A: "Today's quality, tomorrow's market" inspection and traceability no. We strictly control the quality from raw materials to finished tubes. In this way we can be 100% sure that our goods are qualified.

5. Q: Is the price high?

A: Our price is workable. We have tried using automotive equipment to save labor costs. and control other costs. Such as Huaan supply, logistics and so on.

6. Q: After sales service.

A: The quality is guaranteed. If our product does not meet the contract requirements, we will send you the item free of charge.
