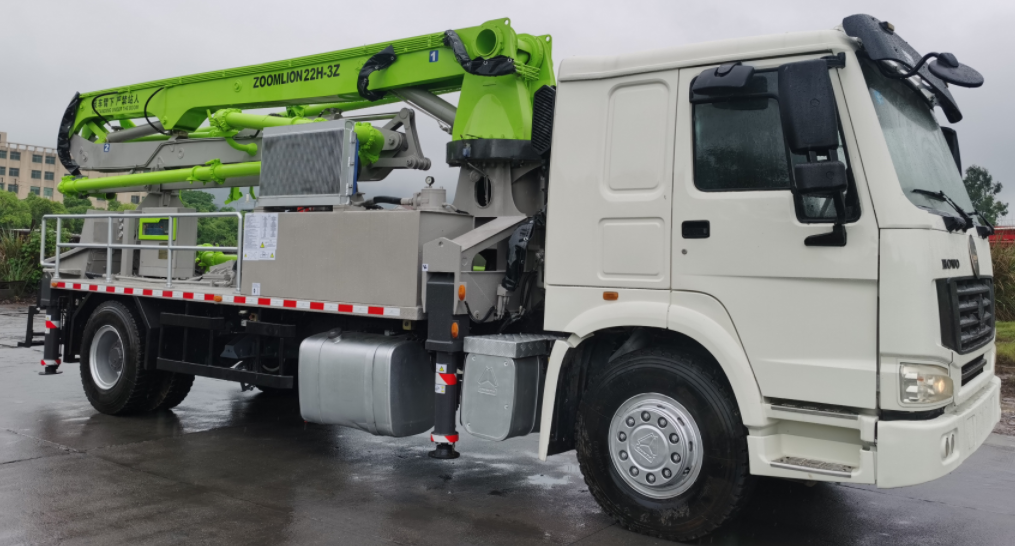

Refurbished concrete pump truck used ZOOMLION 22H-3Z Beton Pompa
- 33999.00 unit
| maximum. Horizontal conveying distance: | 18.2 million | Core components: | pumps, gearboxes, engines |
| payment terms: | L/C, T/T | operating hours: | 0-2000 |
| Packaging Details: | Export standard, will be well packed to avoid damage. | Video shipment inspection: | if |
| strength: | 240K | Mechanical test report: | if |
| year: | 2015 | Health status: | used |
| Package preview: | model: | 22H-3Z | |
| Dimensions (L*W*H): | 7990X3502X2500 | Applicable industries: | Building materials stores, machinery repair shops, manufacturing plants, construction, energy and mining |
| maximum. Vertical conveying distance: | 21.6 million | Showroom location: | not any |
| Supply capacity: | 1 unit per year | weight: | 15870 kg |
| After-sales service provided: | Video Technical Support | place of origin; place of origin: | Hunan, China |
| productivity: | 100 | Power type: | diesel engine |
| port: | All ports in China | Warranty: | 3 months |
| brand: | Zoomlion |
achievement is located inChangsha, China,
Same city as ZOOMLION & SANY.
we supplytop qualityto renovateSupply concrete pumps to our overseas customers.
Brands: Zoomlion, Putzmeister, Sany, Xugong, Junjin, etc.
Refurbishment quality is our primary focus.
|
Model |
Zoomlion 22H-3Z |
||
|
pumping system |
maximum. theory. output |
cubic meter/hour |
100/60 |
|
maximum. theory. concrete output pressure |
MPa |
8/12 |
|
|
Fixed work stress |
MPa |
35 |
|
|
pumping frequency |
min-1 |
14/23 |
|
|
Hopper capacity |
large |
550 |
|
|
fill height |
|
1540 |
|
|
hydraulic system type |
|
open loop |
|
|
distribution valve |
|
S valve |
|
|
Cylinder diameter×stroke |
mm |
Φ140mm×1700mm |
|
|
Concrete cylinder diameter×stroke |
mm |
Φ230mm×1700mm |
|
|
hydraulic oil cooling |
|
air cooled |
|
|
Recommended Concrete Slump |
centimeter |
12~23 |
|
|
maximum. aggregate dimension |
mm |
40 |
|
|
Boom |
structure type |
|
22H-3Z |
|
placement depth |
Meter |
21.6 |
|
|
Horizontal distance |
Meter |
18.2 |
|
|
placement depth |
Meter |
11.4 |
|
|
turning angle |
|
365° |
|
|
Prosperity |
|
3 |
|
|
Boom length |
mm |
6900/5700/5600 |
|
|
Section fold angle |
|
90°/180°/250° |
|
|
Diameter |
mm |
125 |
|
|
End hose length |
mm |
3000 |
|
|
Min boom opening height |
mm |
6410 |
|
|
Outrigger span (front × rear × side) |
mm |
3500×2290×5300 |
|
|
boom kit |
gross weight |
Kilogram |
10380 |
|
Dimensions |
mm |
7990×2500×3205 |
|
|
other |
Lubrication method |
|
automatic lubrication |
|
Fuel tank capacity |
large |
800 |
|
|
control method |
|
manual+remote control |
|
|
water pressure |
MPa |
7 |
|
|
Tank volume |
large |
400 |
|
|
Pipe Cleaning Mode |
|
Washing/dry cleaning |
|
Contact us for more details
Datron Innovation (Changsha) Co., Ltd.
♥. A leading supplier of high-quality domestic products in the concrete machinery industry
♥. Focus on Concrete Machinery, Used Concrete Pumps, Concrete Mixing Plants, Mortar Pumps, Custom Equipment and Parts
♥. We are a professional team with more than 15 years experience in this industry.
