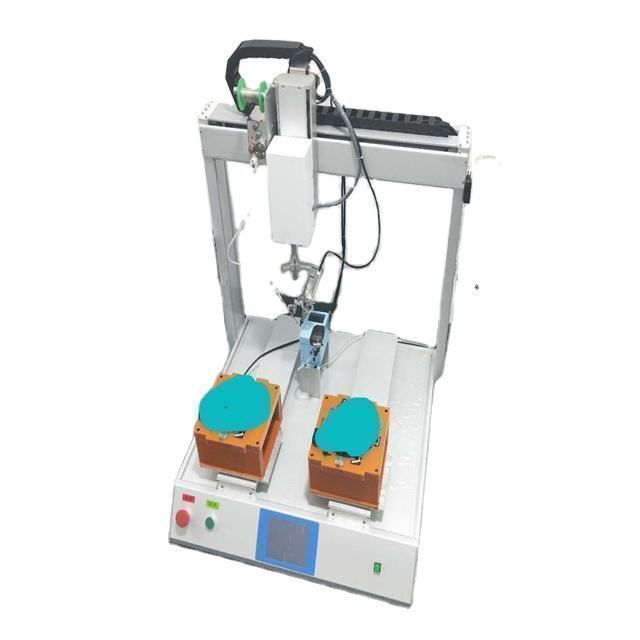

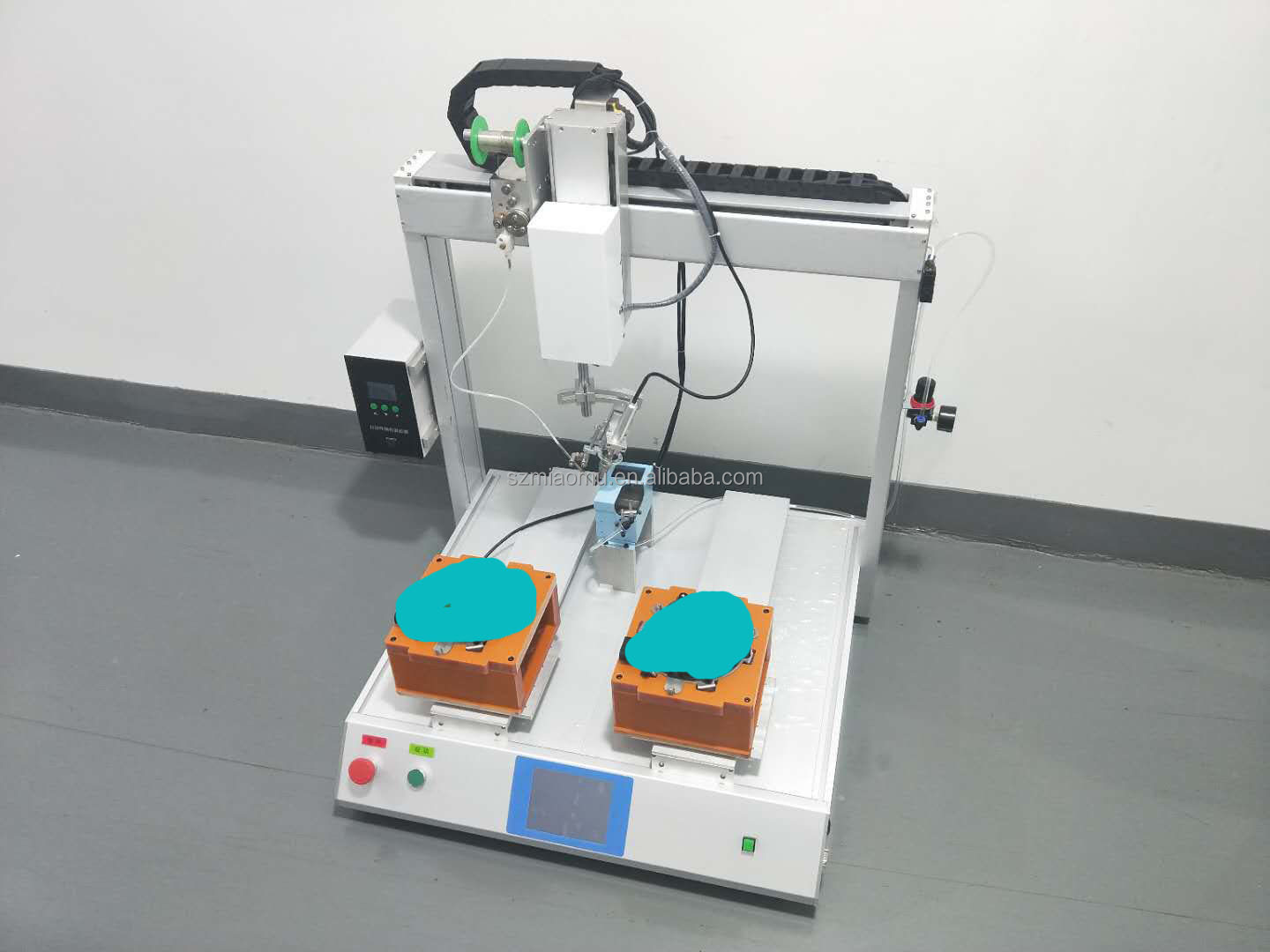

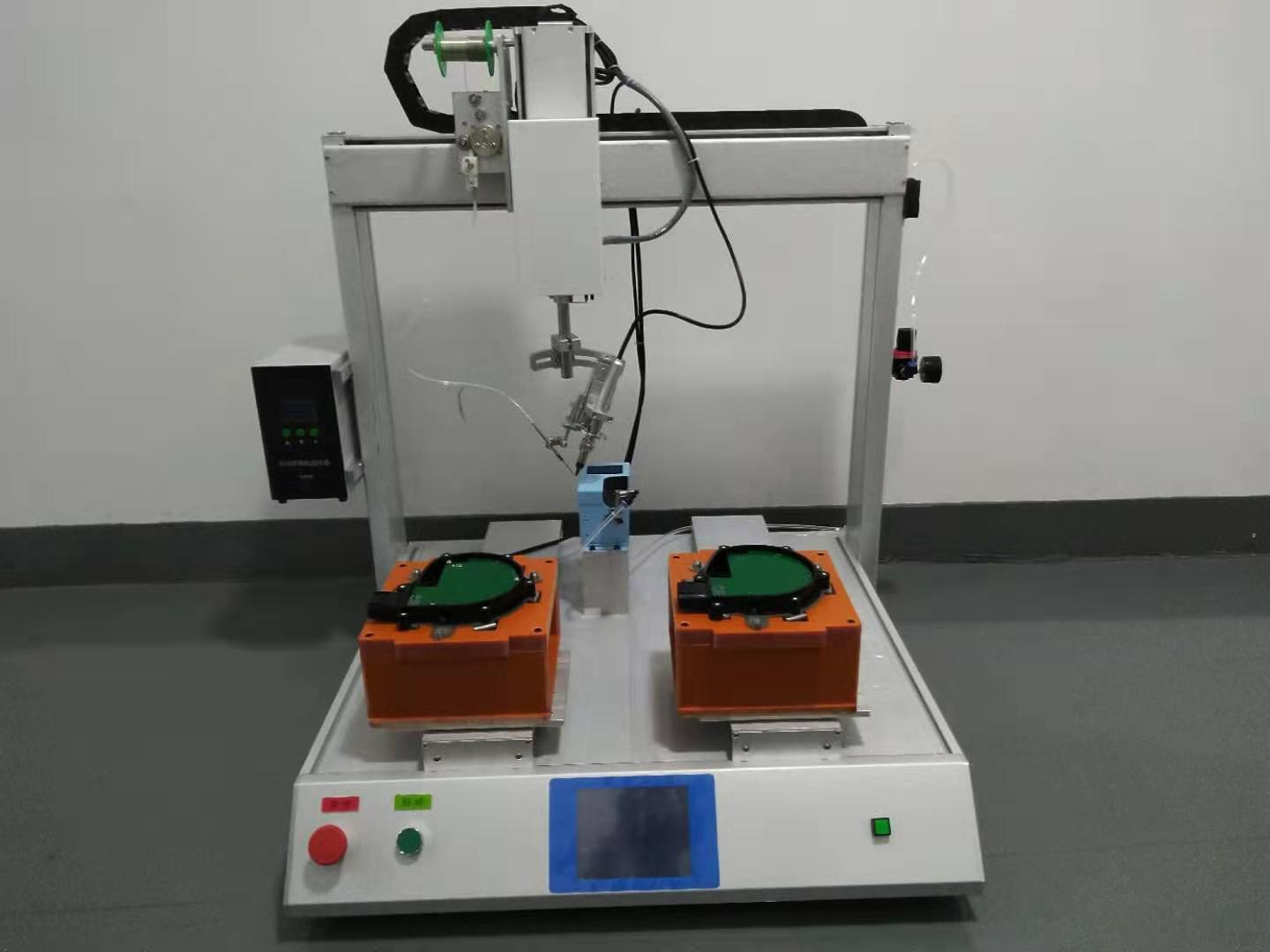

Desktop hot pressing rod automatic soldering station selective automatic soldering robot/soldering equipment

Supplier: Shenzhen Miao Mu Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Miko Miko
Price: $120.00 / 1 - 49 pieces
$100.00 / 50 - 99 pieces
$65.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	Western Union, L/C, D/P, D/A, T/T, MoneyGram	Applicable industries:	factory, other
Weight (kg):	55 kg	place of origin; place of origin:	Guangdong, China
Main selling points:	precise temperature control	Packaging Details:	carton
Marketing Type:	normal product	Core component warranty:	1 year
Mechanical test report:	if	type:	Soldering machine
Supply capacity:	100 pieces per week	port:	Shenzhen
Voltage:	220V/50HZ	Health status:	new
Showroom location:	not any	brand:	Seedlings
Warranty:	1 year	Video shipment inspection:	if
Core components:	engine, pump

Product overview

Desktop hot pressing rod automatic soldering station selective automatic soldering robot/soldering equipment

Working features: 1. Chinese interface input, easy to learn and understand, no need for external teaching device, more convenient to debug than similar products, simple and convenient, high-speed and accurate. 2. It has functions such as point, line, arc, circle and irregular curve input program continuously and welding at any position in space. 3. The amount of automatic tinning can be adjusted, and the temperature can be adjusted.

List of functions

Product features X stroke: 300mm, Y stroke: 300mm, Z stroke: 150mm U stroke: 360 degrees rotation X speed: 500mm/s, Y speed: 500mm/s, Z speed: 400mm/s U: 360 degrees/s Double-ended : Up to 4 welding seams (fixed direction) Operation interface: 5.7-inch touch screen, integrated body, Chinese operation, intuitive input. Walking graphics: point, line, circle, arc. Spot welding or continuous drag welding. Input method: teaching or file input, DXF, PLT format. Repeat accuracy: ±0.03mm Control system: Professional four-axis motion control system, independent research and development Rotation mode: stepper motor + linear guide rail + synchronous belt Maximum load: X/Y/Z 10KG/10KG/5KG Machine performance: excellent

welding equipment

product specification

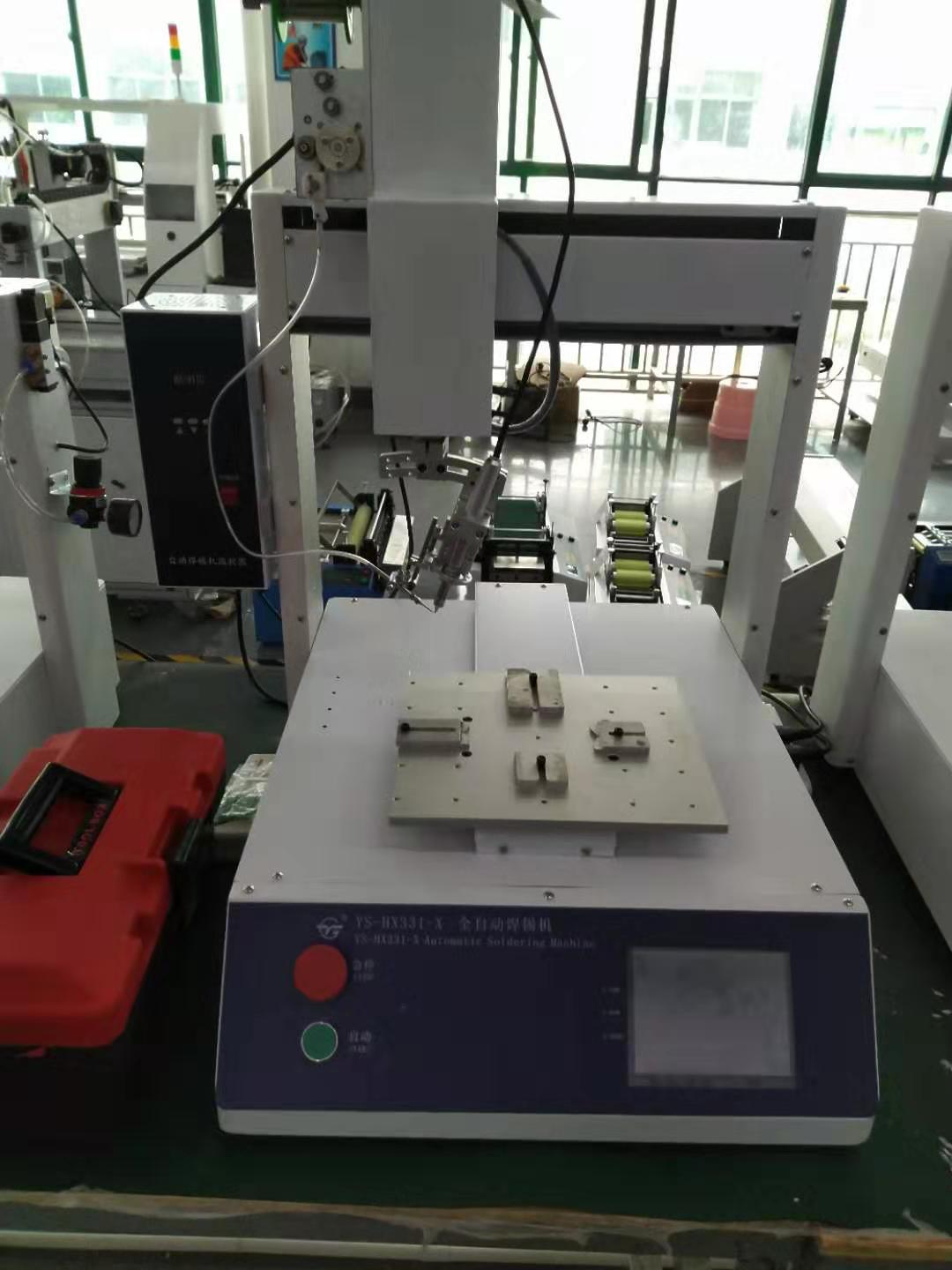

Do not	Model:	YS-HX331
1	Machine power:	300W
2	aspect:	LengthwidthheightL671W551H612mm
3	weight:	45 kg
4	resource:	4 to 6 kg
5	Gas source:	maximum. 0.99MPa (unlubricated, dry and clean air)
6	temperature range:	150-450 degrees
7	Tin Feed:	0.01mm
8	power supply:	220V/50Hz
