EN1057/BS2871 copper press-fit

Supplier: Wenzhou Kasin Valve Pipe Fitting Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jim song
Price: $0.50 / 10 - 999 pieces
$0.30 / >=1000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Package preview:		connect:	according to
Certification:	WRAS	model:	STP CV7001
standard:	EN 1057/BS 2871	place of origin; place of origin:	Zhejiang, China
Process:	forging	Supply capacity:	3,000,000 pieces per year
application:	Gas system, air conditioner or refrigerator, plumbing, water H	Warranty:	3 years
size:	12, 15, 18, 22, 28, 35, 42, 54	port:	Ningbo
shape:	equal	payment terms:	L/C, Western Union, T/T
brand:	Happy	O-ring:	EPDM rubber, hydrogenated nitrile rubber
Material:	CW024A	header code:	round
type:	Copper Press Fit	Packaging Details:	Export packaging, such as polybags, cartons, pallets.
pressure:	16 bar	Quality Control:	100% inspection

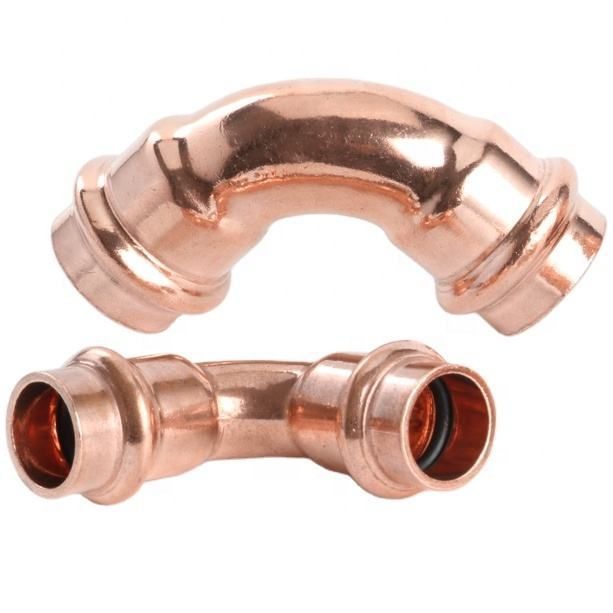

EN1057/BS2871 copper press-fit

EN1057-BS2871 copper clamps are widely used in drinking water supply, hot and cold water supply, heating, fire protection, gas supply, industrial oil pipeline system, etc.
Applicable medium: cold water, hot water, compressed air, gas, oil, etc.
Printing tool: Novopress.
proper temperature:-20°C to 120°C (for potable water systems and sanitary ware systems), 180°C for solar applications.
Pressure: up to 1.6mpa (16bar)
Fields of use: Drinking water, heating, rainwater, solar systems, fire extinguishing systems, sprinkler systems (wet), shipbuilding, intermediate gas, cooling water pipes, compressed air (oil-free), boilers, water heaters
Press range:
Coupling——straight coupling FF stamping, reducing coupling FF stamping, Fitting reducer MF stamping
Elbows -- Bend 90°FM Press, Bend 90°FF Press, Bend 45°FM Press, Bend 45°FF Press
Tee -- equal diameter tee FFF press, different diameter tee FFF press
Other Accessories - End Cap Presses, Full Crossover FF Presses, Partial Crossover FM Presses, Wall Panel Elbow Presses.
Our advantage
* Free samples:We can provide some free samples for evaluation.
* After-sales service:We provide customers with after-sales technical support.
* Strict quality control:We do 100% inspection before delivery to make sure every piece is of high quality.
