HR-150A Rockwell Hardness Tester, Rockwell Hardness Testing Equipment

Click here to contact

Product details

type:	new	port:	Shenzhen
Supply capacity:	200 pieces per month	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:	Langroy	Packaging Details:	Plywood boxes
Customization support:	OEM,ODM,OBM	Warranty:	1 year
place of origin; place of origin:	China	model:	HR-150A
Certification:	CE certification

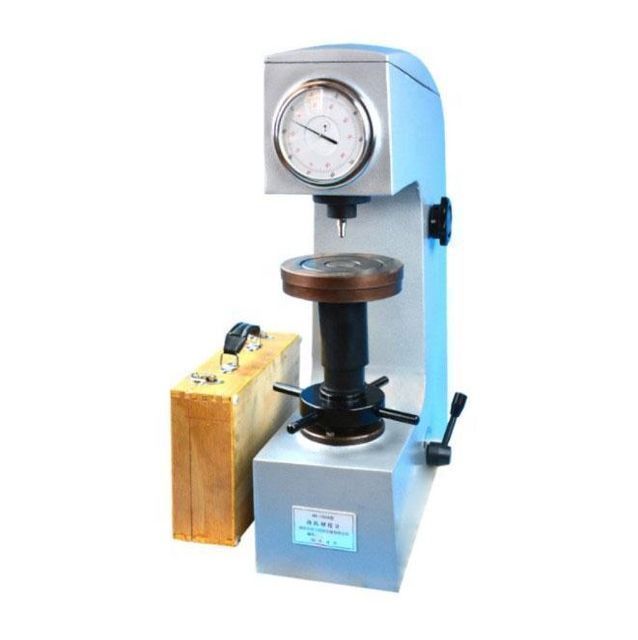

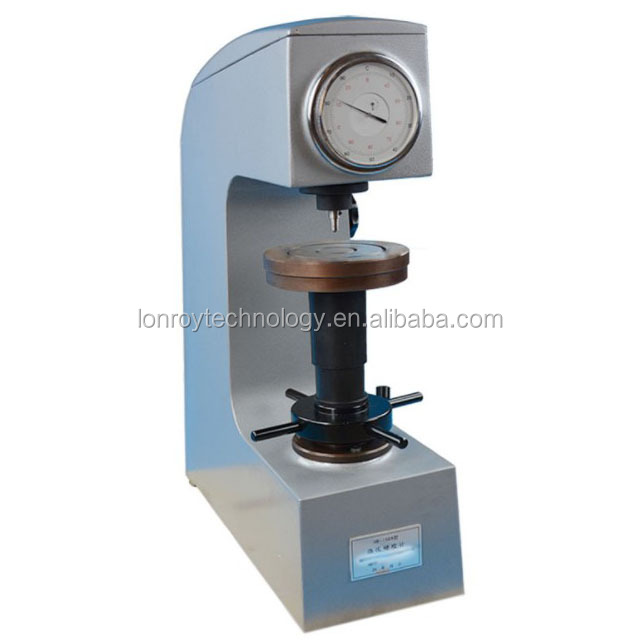

HR-150A Rockwell hardness tester, Rockwell hardness testing equipment

main feature:

Lever loading, manual operation, reliable and durable; frictionless spindle, high test force accuracy;

Dial direct reading, HRA, HRB, HRC, other lake lights are optional;

Precision hydraulic buffer, stable loading, adjustable speed;

The precision complies with GB/T230.2, iso6508-2 and ASTM E18.

HR-150A Rockwell hardness tester, Rockwell hardness testing equipment

Applicable and scope:

Determination of Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;

It is suitable for hardness measurement of heat-treated materials such as quenching and tempering.

HR-150A Rockwell hardness tester, Rockwell hardness testing equipment

Specifications:

rockwell	20-88HRA, 20-100HRB, 20-70HRC
initial strength	10kg (98.07N)
full test force	60Kg (588N), 100Kg (980N), 150Kg (1471N)
Hardness value indicates	dial
Maximum height of specimen	170mm
Dimensions	520240700mm
net weight	80 kg
carry standard	GB/T230.2 Chinese standard and JJG112 inspection rules
Standard accessories	Diamond Rockwell indenter, 1.5875mm diameter carbide steel ball indenter, large test bench, medium test bench and V-type test bench, HRC and HRB hardness blocks
application	Hardened steel, tempered steel, annealed steel, chilled castings, forgeables, castings, aluminum alloys
