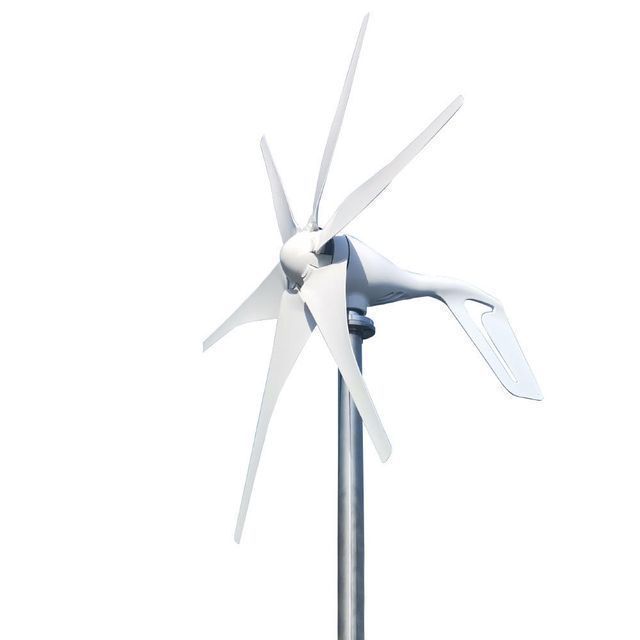

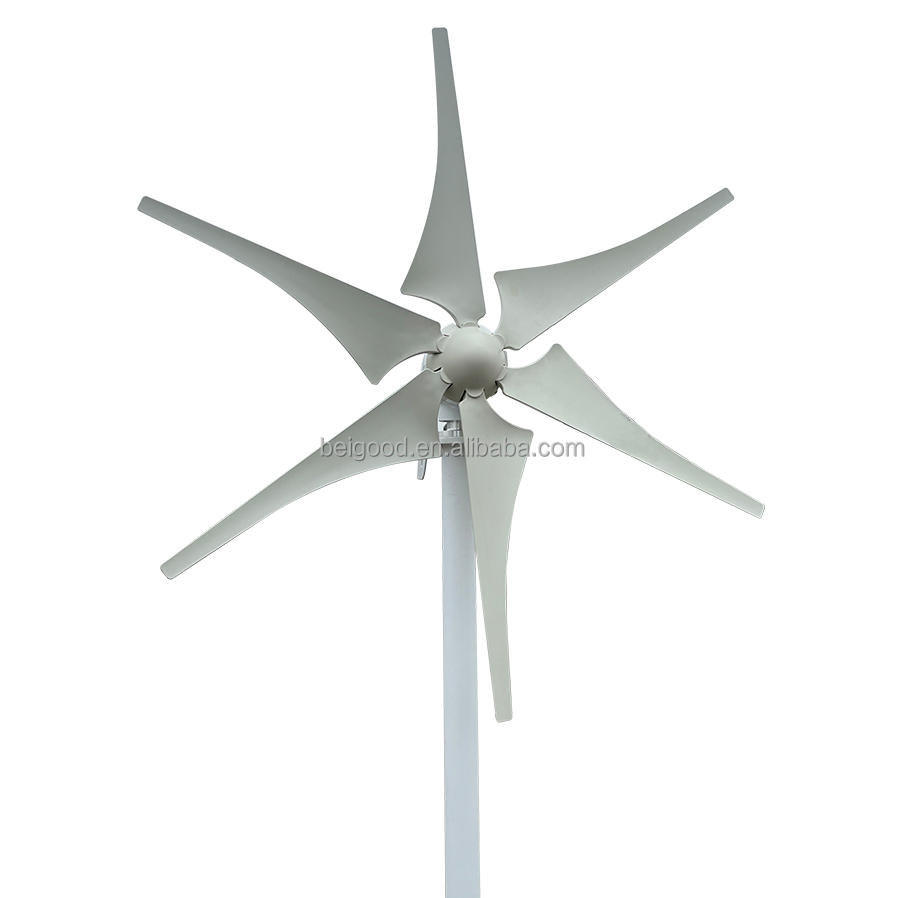

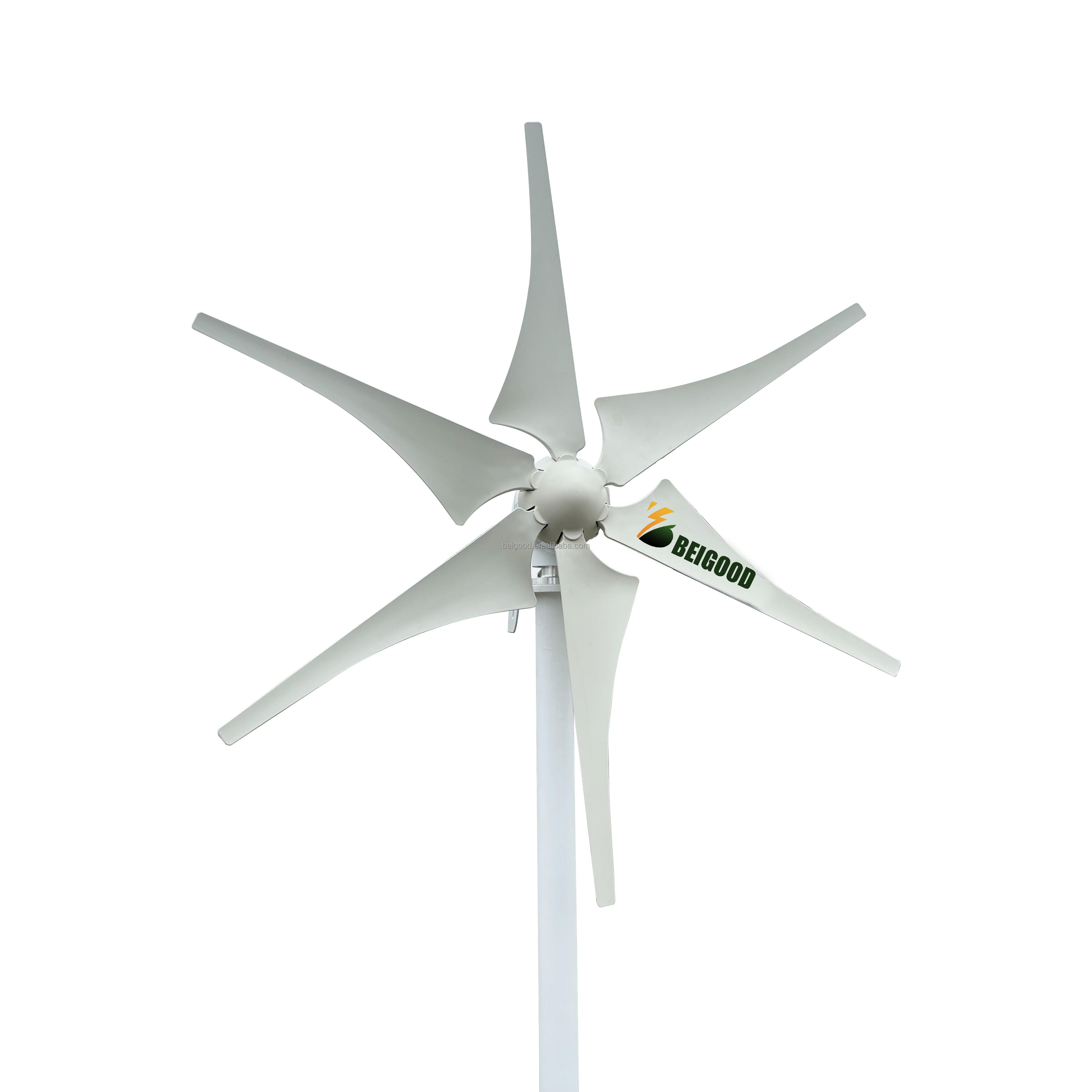

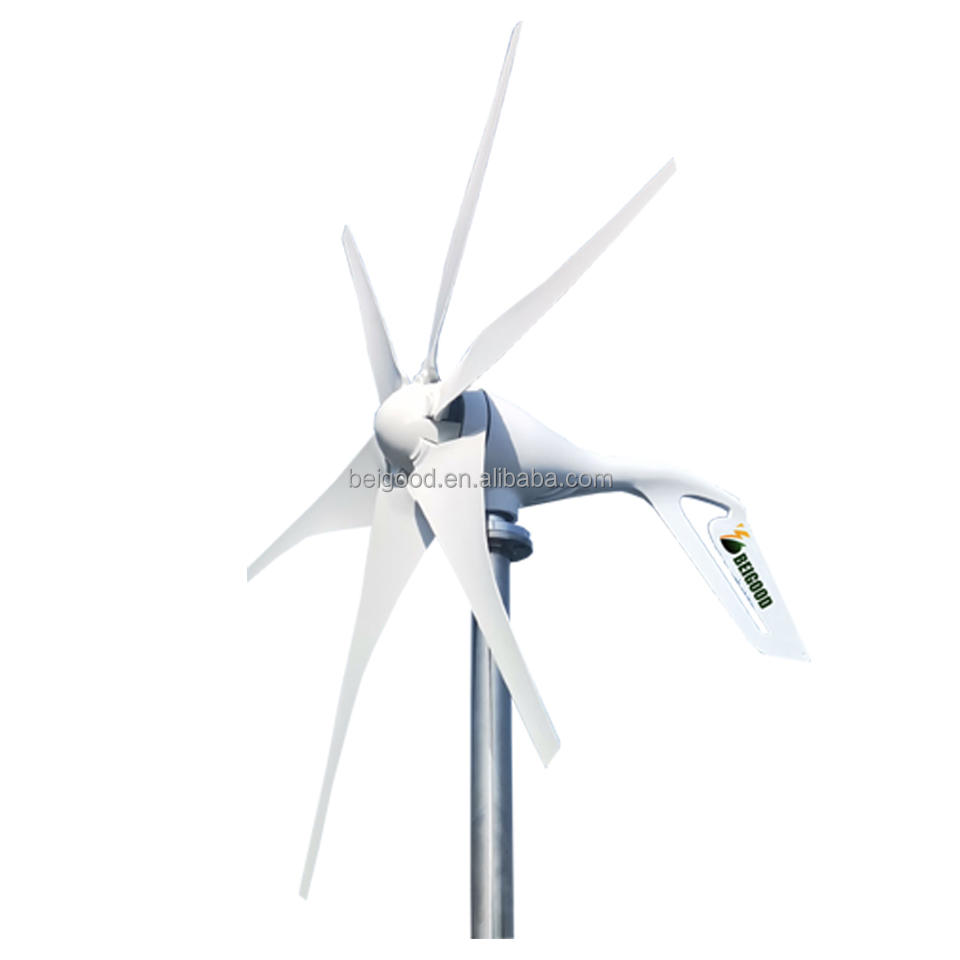

Clean Energy 1kw 12v 24v 48v Home Horizontal Wind Turbine Generator Free MPPT Controller
- 110.00 1 - 9 pieces
- 95.00 10 - 49 pieces
- 85.00 50 - 999 pieces
- 65.00 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Gross weight per piece: | 10.000 kg | Certification: | CE certification |
| Voltage: | 24V | Number of blades: | 6 |
| rated power: | 1000w | custom made: | Yes |
| Single package size: | 71X28X22 cm | Wheel diameter: | 1.2m |
| place of origin; place of origin: | Jiangsu, China | strength: | 1000W |
| model: | BGSC-1000 | color: | white |
| Sales unit: | single product | type: | horizontal wind turbine |
| Rated voltage: | 12V/24V/48V | weight: | 25 kg |
| brand: | Begood | Packaging Details: | standard package |
| Material: | alloy |
Product Description
Blade Type: Nylon Fiber
Number of blades: 6pcs
Generator type: three-phase permanent magnet generator
Power: 1000w
Specification
Model | SC-1000 | ||||||
rated power | 1000w | ||||||
Maximum power | 1050w | ||||||

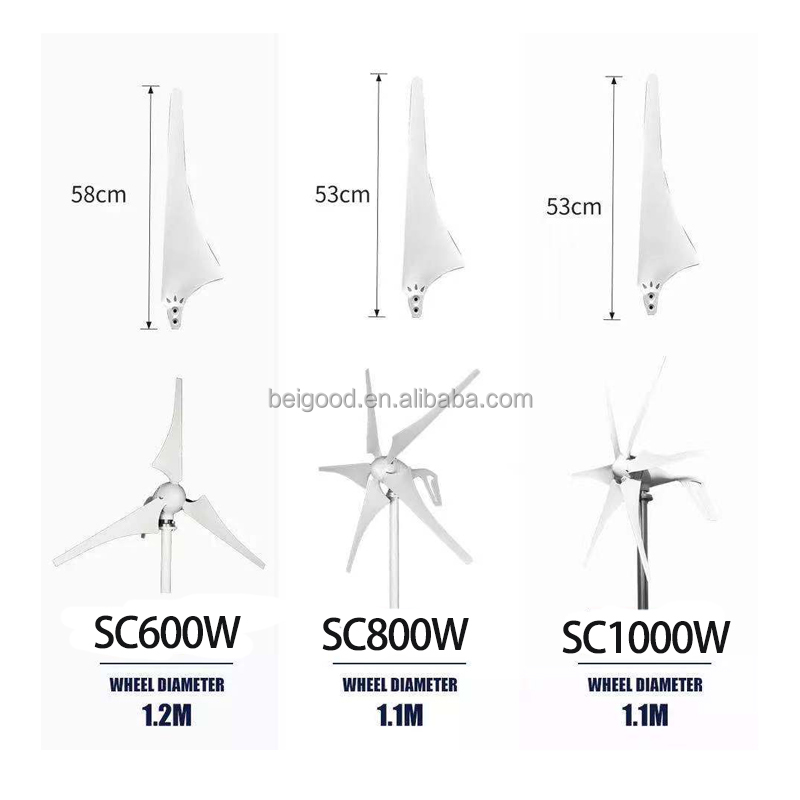

wheel diameter | 1.14m | ||||||
Rated voltage | 12v/24v/48v | ||||||
start wind speed | 1.3 m/s | ||||||
Rated wind speed | 13 m/s | ||||||
Survival wind speed | 50 m/s | ||||||
number of blades | 6 | ||||||
blade length | 550mm | ||||||
Blade material | nylon fiber | ||||||
generator type | Three-phase permanent magnet synchronous generator | ||||||
magnet material | Rare earth NdFeB | ||||||
Shell material | aluminum alloy | ||||||
Control System | electromagnet | ||||||
Operating temperature | -40°C - 80°C | ||||||
lubricating | grease | ||||||
Design life | 20 years | ||||||
