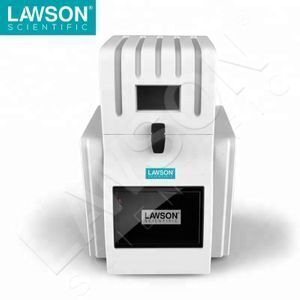

Automated Tissue Homogenizer and Cell Lyser with ball mill ultrafine Samples Tissue Grinding Machine Grinder DHFSTPRP-24

 Features:

The DHFSTPRP-24 tissue grinder is a special, fast, efficient, multi-tube, uniform system. It can extract and purify raw DNA, RNA, and proteins from any source, including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, and the like.

This instrument is also known as multi-sample tissue grinder, rapid tissue grinder, multi-sample tissue homogenizer, and rapid sample homogenization system.

• Automated mechanical disruption through bead beating, ideal for high-throughput cell lysis applications including DNA/ RNA extraction, protein extraction and pesticide residue analysis.
• Programmable touch screen control panel for run time, rate, cycles and pause time.  Up to 500 protocols can be saved for recall.
• Designed for vigorous up-and-down shaking of deep-well titer plates, vial sets, and centrifuge tubes.
• Optional Kryo-Tech Accessories enable cryogenic grinding and preserve temperature sensitive samples for RNA and protein extractions.

Compared with other existing sample preparation methods, the LAWSON-24 tissue grinder has the advantages of wide versatility, high efficiency, and flexibility. The system avoids the disadvantages of laborious, time-consuming, and inefficient methods such as grinding, homogenization, and ultrasonic treatment, and can efficiently and rapidly cleave and purify nucleic acids and proteins of various types of samples.

Grindable sample:

1. Plant tissue: roots, stems, leaves, flowers, fruits, seeds, etc.

2. Animal tissues: brain, heart, lungs, stomach, liver, thymus, kidneys, intestine, lymph nodes, muscles, bones, etc.

3. Fungal bacteria: Yeast, E. coli, etc.

4. Food and medicine: various types of food, tablets, etc.

5. Volatile Samples: Coal, oil shale, wax products, etc.

6. Plastics, polymers: PE, PS, textiles, resins, etc.

Applications: Tissue grinding, homogenization, cell disruption, homogenization, material dispersion, preparation, sample mixing, oscillation, etc.

Processing capacity: The maximum throughput in 15 seconds can handle 48 samples at the same time, including 12-bit and 24-bit liquid nitrogen freezing adapters

Compatible sample book: Compatible sample book: 24*(0.2-0.5ML) /24*2ML;48*(0.2-0.5ML) /48*2ML;64*(0.2-0.5ML)/64*2ML/24*5ML/12*(7-15)ML/2*25ML/2*50ML, any customizable Specifications grinding tube

Display mode: LCD display, touch screen display (upgradeable)

Earthquake protection principle: The patented German patent schleifen-1 works with the principle of earthquake protection, as well as the three-dimensional movement of up and down and left and right shaking. The patented grinding bead movement method ensures maximum sample handling and instant smashing effect.

Maximum feed size: no requirement, adjust according to adapter

Final discharge particle size: ~5μm

Number of grinding platforms: (Acceptable grinding tanks) >2

Fastening device: with automatic centering

Homogeneous speed: 0-70 Hz/second, working time: 0-99 minutes, users can set their own

Grinding ball diameter: 0.1~30mm

Grinding ball materials: alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand

Acceleration: Maximum speed in 2 seconds

Deceleration: Minimum speed in 2 seconds

Noise level:<55db

Grinding method: wet grinding, dry grinding, cryogenic grinding

Constant temperature can be reprovisioned: with the ability to upgrade to cryogenic liquid nitrogen refrigeration or air chiller refrigeration

Adapter material: PTFE, alloy steel

Safety instructions: Fastening device with automatic center positioning Safety lock during operation, full protection

Grinding Kit Materials: Rigid, PTFE, Teflon, Zirconia

Dimensions: 400*280*530

Weight:35 Kg

Host  DHFSTPRP-24

Adapter Ø2ml set

Cooling Adapter Ø2ml Set or Ø1.5ml Set (2 Select 1)

Grinding bead 1.Ø5 imported stainless steel grinding beads 1000 or Ø5 imported ceramic grinding beads 1000 (2 selected 1);

2. Ø3 imported stainless steel grinding beads 1000

Special grinding tube 200

Dedicated bead gun set (optional)

Object to be extracted: Animal tissue-DNA LW-D-P1 (optional)

Extraction target: animal tissue-RNA LW-D-P2 (optional)

Object of extraction: Animal tissue - Protein LW-D-P3 (optional)

Extraction target: plant tissue-DNA LW-Z-P1 (optional)

Extraction object: plant tissue - RNA LW-Z-P2 (optional)

Extraction Object: Plant Tissue - Protein LW-Z-P3 (optional)

Extraction target: Microbial DNA LW-W-P1 (optional)

Extraction target: Microorganisms - RNA LW-W-P2 (optional)

Extraction Object: Microorganisms - Protein LW-W-P3 (optional)

Grindable sample:

1. Plant tissue: roots, stems, leaves, flowers, fruits, seeds, etc.

2. Animal tissues: brain, heart, lungs, stomach, liver, thymus, kidneys, intestine, lymph nodes, muscles, bones, etc.

3. Fungal bacteria: Yeast, E. coli, etc.

4. Food and medicine: various types of food, tablets, etc.

5. Volatile Samples: Coal, oil shale, wax products, etc.

6. Plastics, polymers: PE, PS, textiles, resins, etc.

NOTICES:

Precautions before use:

1. The matching LW kit can be used to quickly, efficiently, stably, and bulkly extract DNA/RNA proteins in samples.

2. 1Hz=30 revolutions/sec / 1Hz=100RPM

3. Conventional adapters can be placed in the refrigerator to give the sample a cold environment at work. Can be equipped with a cooling adapter, can be soaked in liquid nitrogen for more than thirty minutes.

4. The noise emission value for the work environment depends on the type of sample and the settings of the mill. The parameters in the table are empty.

5. A small amount of sample, usually used for DNA and RNA separations, can be prepared in disposable centrifuge tubes. Adapters made of PTFE can be used to hold 5 or 10 disposable sample tubes for cell disruption. In multiple sample tissues The cell tissue in the mill is broken down quickly and efficiently in an extremely short period of time, eliminating the need for additional cryogenic refrigeration.
