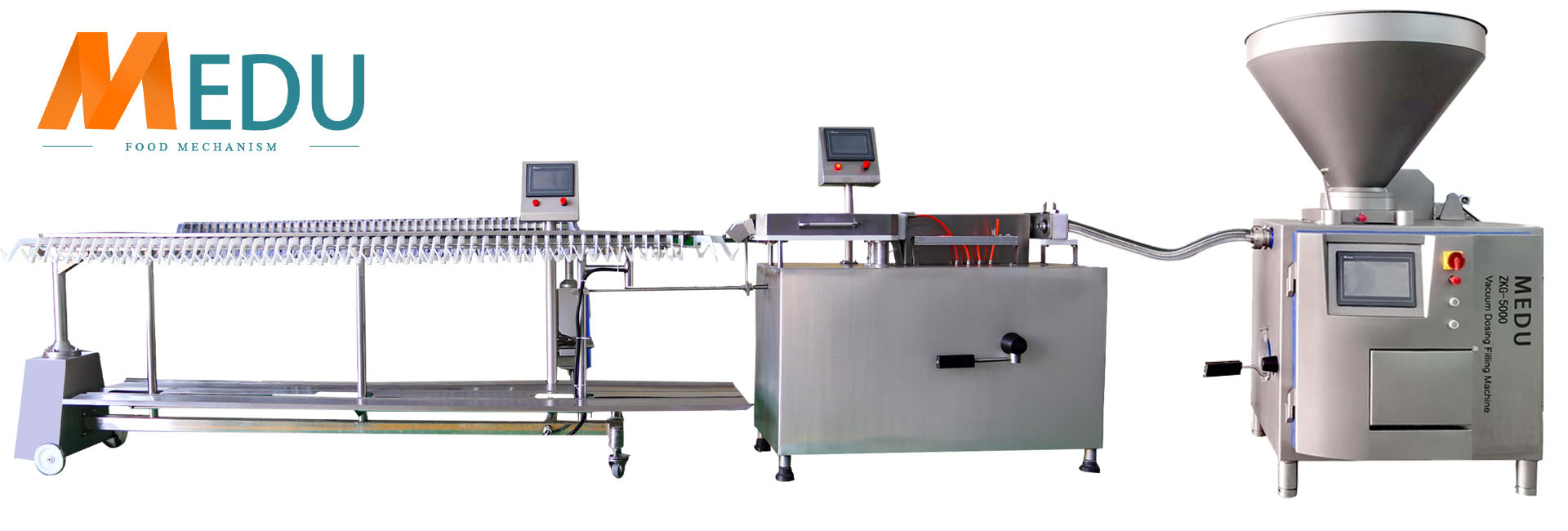

Vacuum Filling Machine Compressed Air Manufacturing Germany 30 Liters Commercial Meat Making Machine Sausage Stuffing Machine Electric Automatic

Product details
Core component warranty:1 yearVideo shipment inspection:if
Showroom location:not anyDimensions (L*W*H):2450*1180*1800mm
weight:750 kgstrength:7.9/8.35/10.8kw/customizable
brand:MidoMaterial:304 stainless steel
application:Sausage Filling Machinepayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Mechanical test report:ifServe:24 hours video guidance
Function:vacuum automaticport:Tianjin
mistake:±2gFeature 2:Improve after-sales efficiency
Production capacity:0-600/minName:vacuum sausage enema machine
Package preview:Packaging Details:Cleanup+plastic wrap+wooden box+pallet
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpHealth status:new
Warranty:1 yearApplicable industries:manufacturing plant, food and beverage factory, restaurant, food store, food and beverage store
capacity:160/240L/CustomizedTwisting speed:0-600/min
Feature 1:Independent research and developmentplace of origin; place of origin:Hebei china
Voltage:380VSupply capacity:30 pieces per month
Marketing Type:New Products 2022
product information
product name
sausage stuffing
place of origin; place of origin
Hebei china

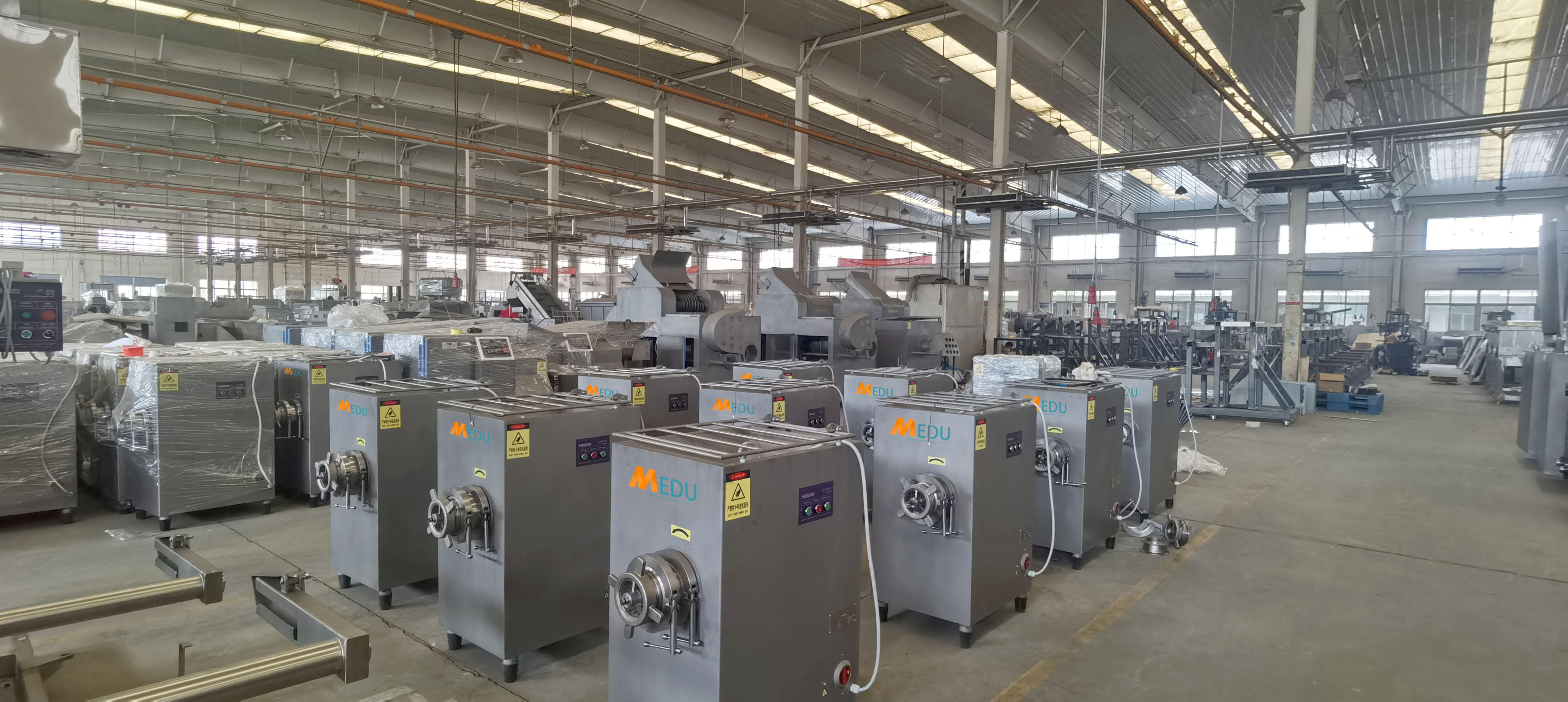

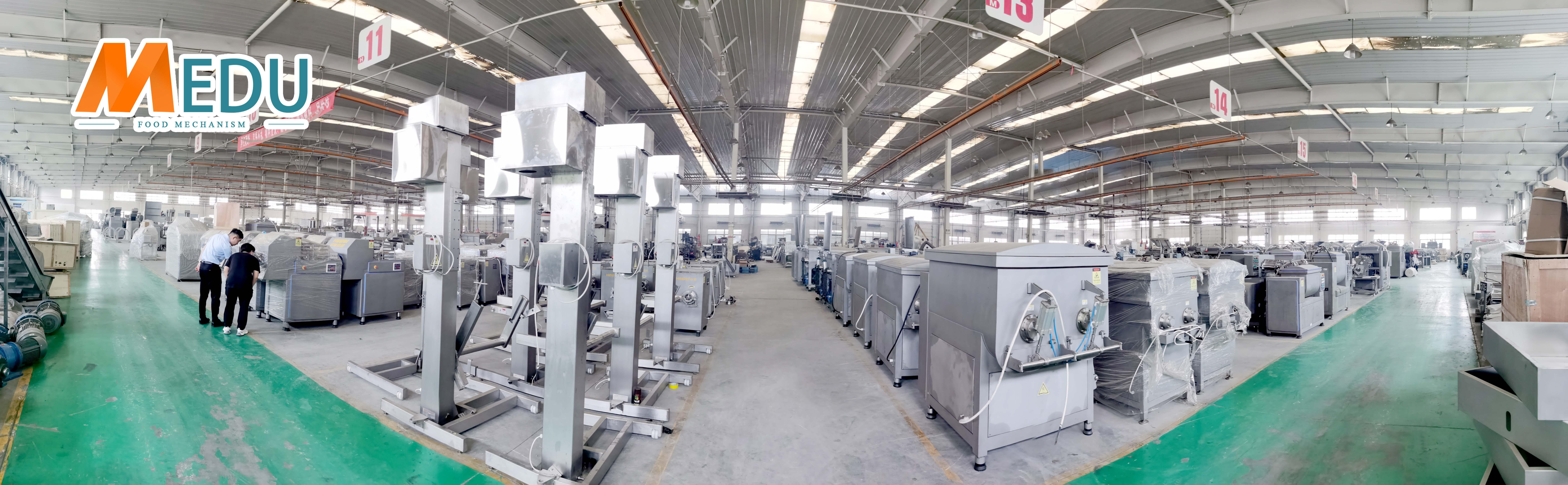

Video call to visit our factory at any time
Product advantages
1. Japanese YASKAWA or other famous brand servo motor
2. Swiss ABB waterproof button
3. Mitsubishi PLC control system
4. Touch screen, 8.4 inch Taiwan Delta true color LCD screen
5. German Busch vacuum pump
6. Quantitative deviation: ±2g (minced meat)
7. Twisting speed: 640pcs/min (eg6g/pc) (stepless speed regulation)

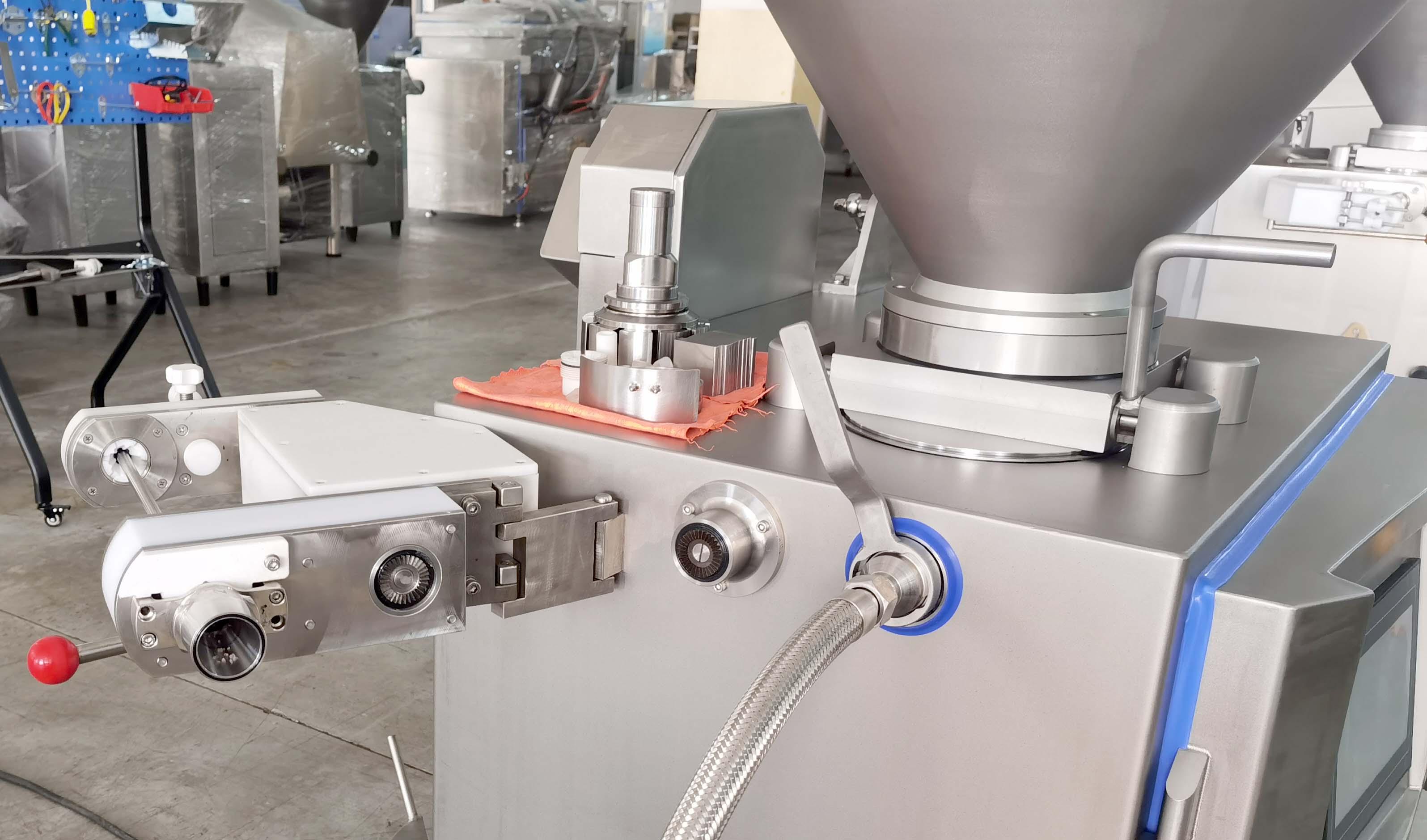

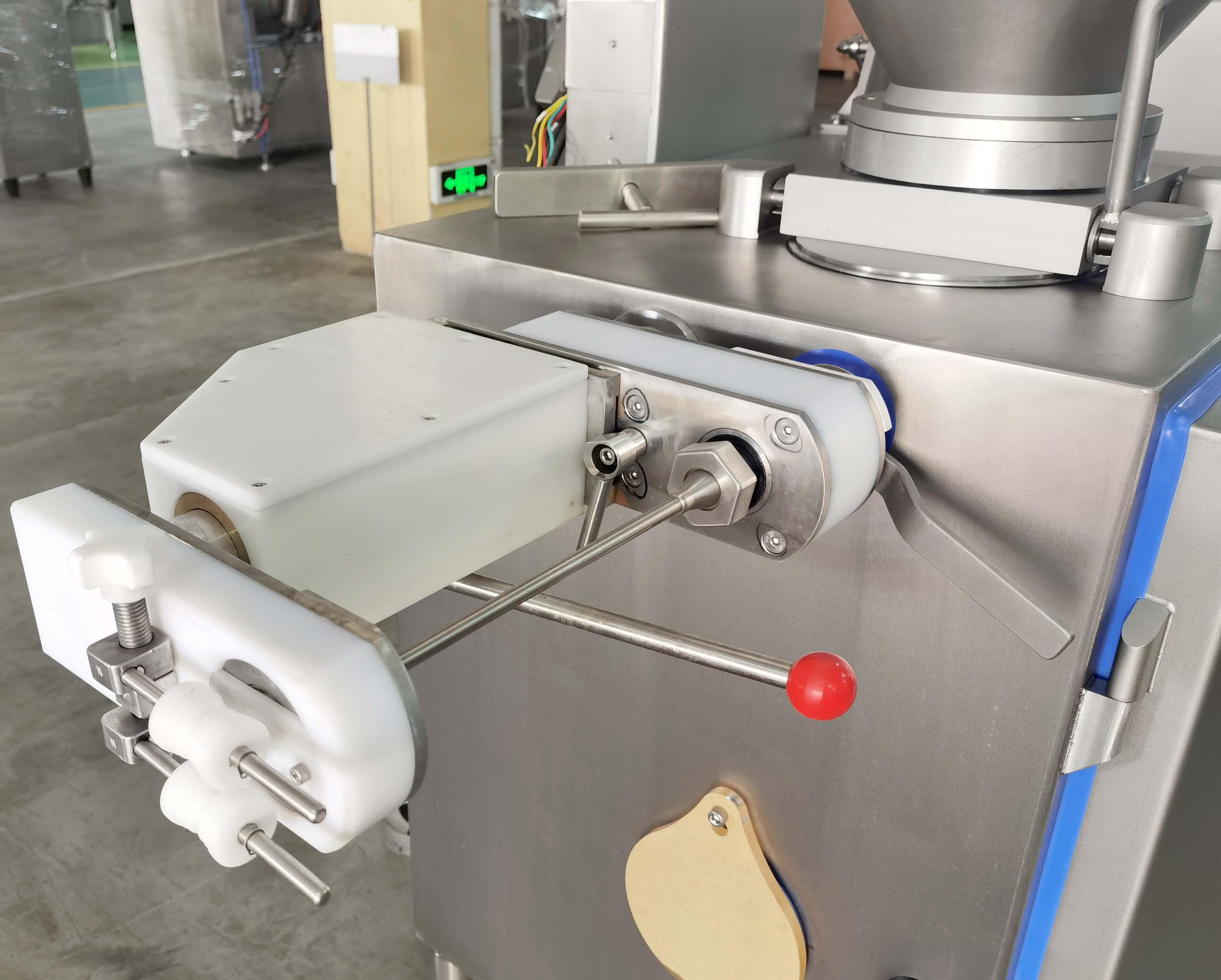

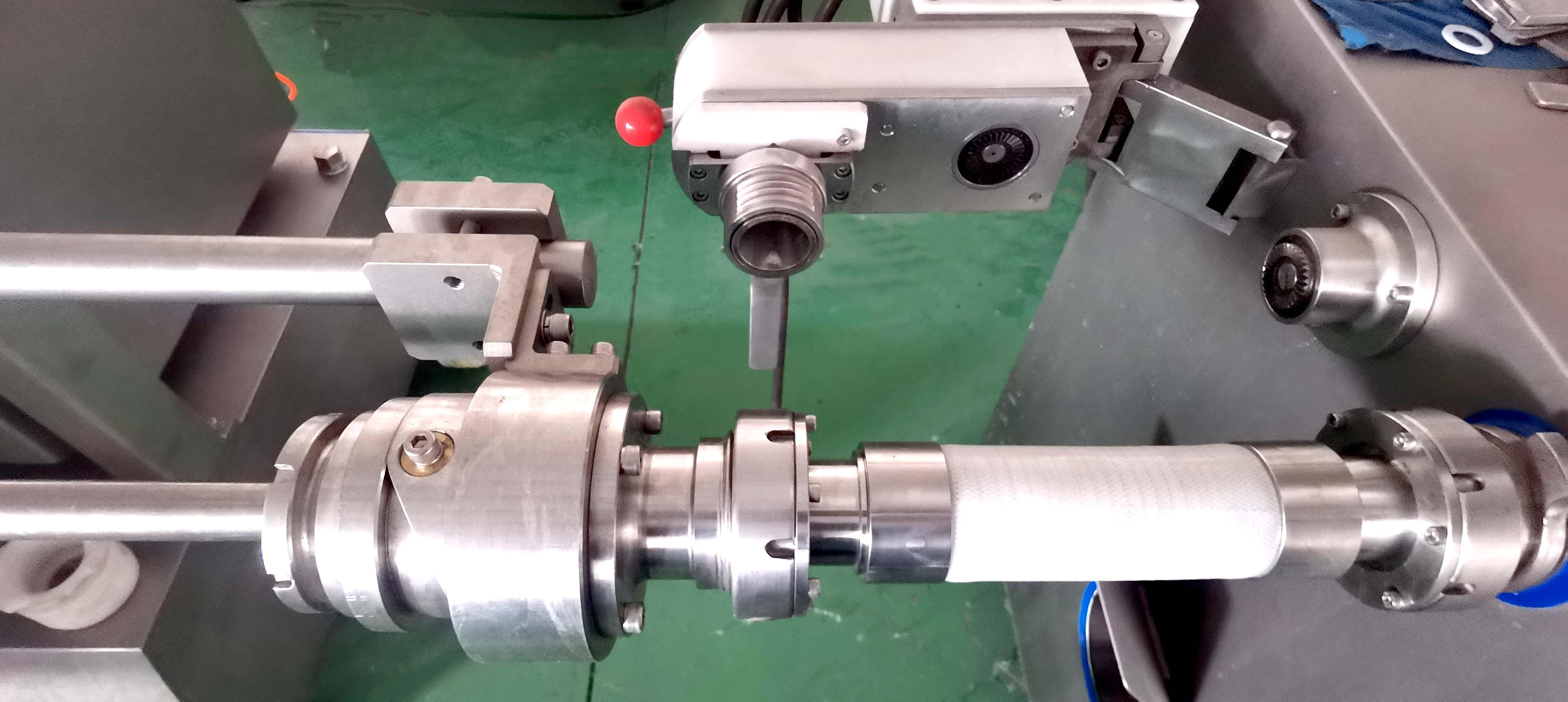

8. Stranded tube size: Φ10, Φ12, Φ14, Φ16, Φ19, Φ22 (optional 3)
9. The impeller, vane and pump body are designed with high hardness and high wear-resistant stainless steel, and the main body is made of 304 material
Stainless steel

feature of product

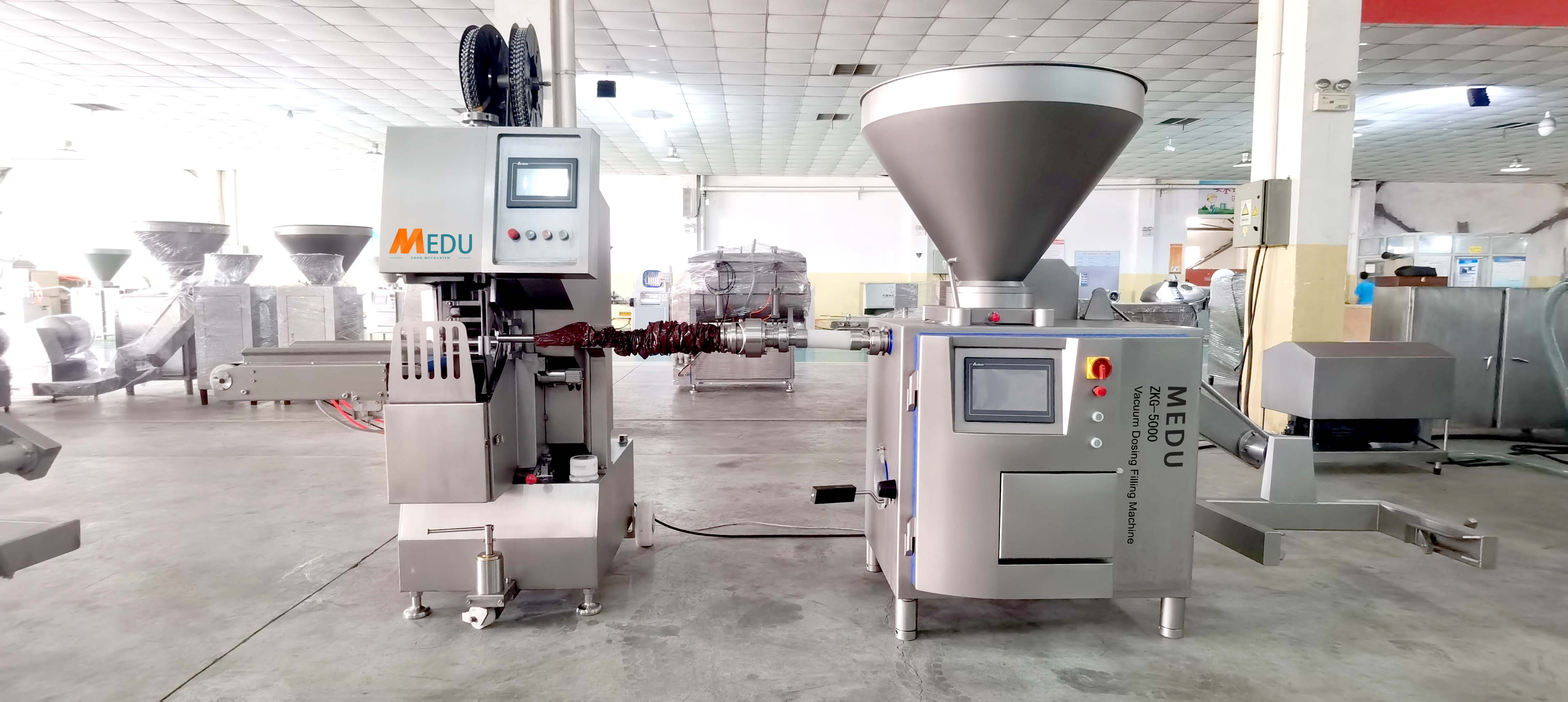

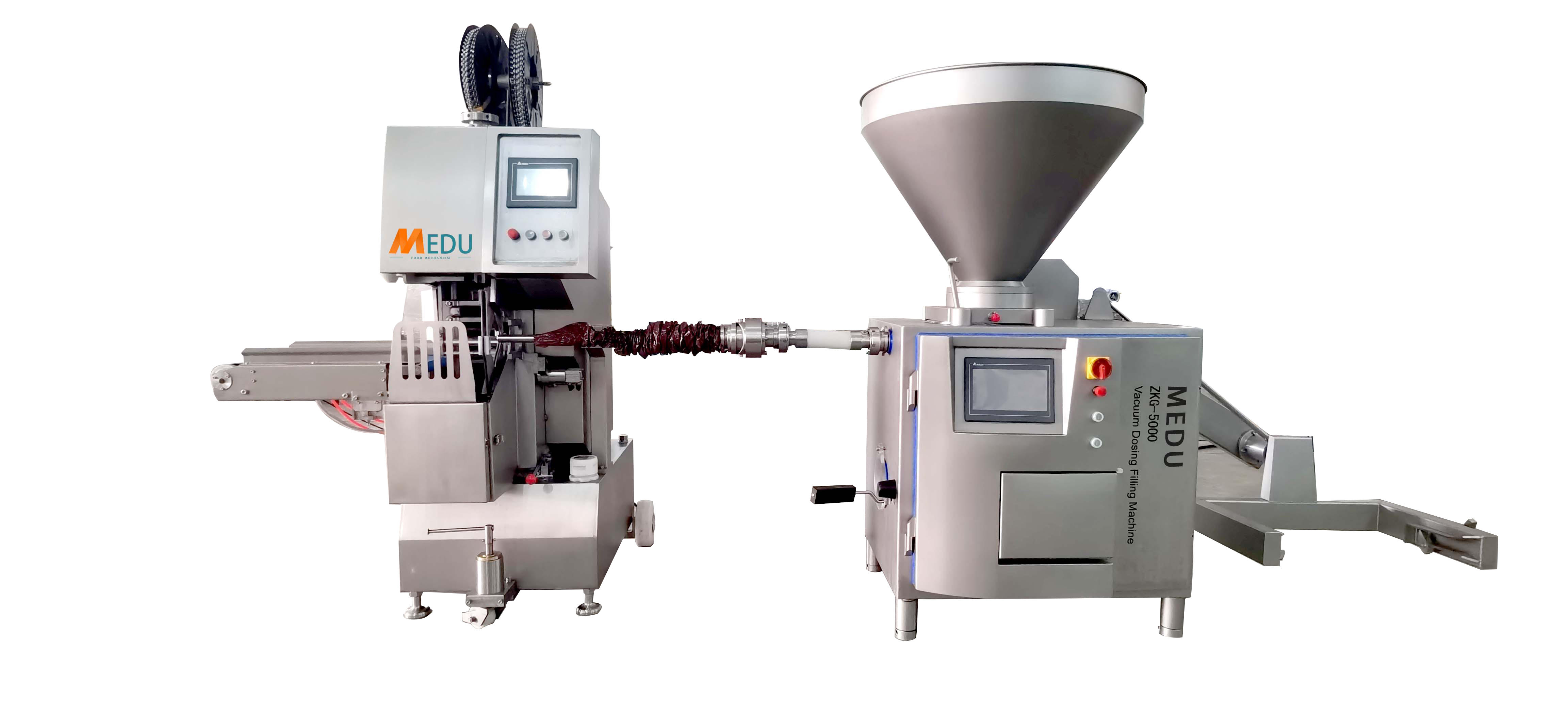

VQF series vacuum filling machine control system adopts self-developed numerical control system, 8.4-inch true-color LCD display,
Special industrial keyboard, waterproof front panel, humanized design control interface, intuitive and clear. Vacuum filling machine ZKG
It is composed of Japanese servo motor, German reducer and high-quality vacuum pump. This machine is used for
Used for quantitative filling and vacuum high-speed stranding to prevent fat oxidation and protein hydrolysis and reduce dosage
Bacteria, thereby prolonging the shelf life of the product.
Model
Quantitative range
Twisting speed (min)
mistake
(G)
Hopper volume (L)
Power(kw)
Voltage (V)
Weight (kg)
Dimensions (mm)
ZKG-3000
6-9999
0-600
±2
160
7.9
380
590
1350*861*1710
ZKG-3500
6-9999
0-600
±2
240
8.35
380
630
2450*1180*1800
ZKG-6500
6-9999
0-600
±2
240
10.8
380
750
2450*1180*1800
Can be customized according to your requirements
