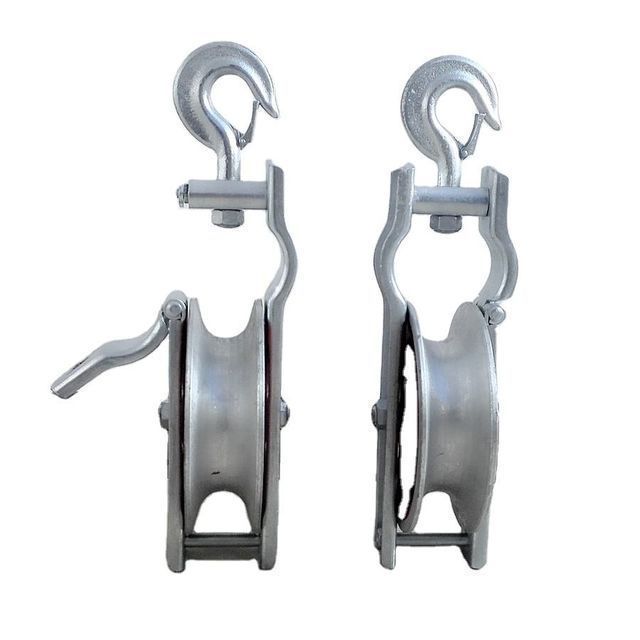

Wire rope block with swivel hook / cable threading block / wheel hook block

Supplier: Hebei Long Zhuo Trade Co., Ltd.
Region: Hebei, China
Contact: Ms Helen Zhang
Price: $3.00 /set
Min. Order: 1 set

Click here to contact

Product details

MOQ:	1	Frame material:	painted steel, galvanized steel
Key words:	Open pulley	model:	LZCR-6
Pulley material:	nylon, aluminum	Packaging Details:	Carton
Supply capacity:	1000 sets per month	port:	Tianjin harbor
delivery time:	7-10 days	type:	Sling pulley
Name:	cable pulley	size:	12060, 15040mm, etc.
brand:	Long Zhuo	place of origin; place of origin:	Hebei china
Package:	standard wooden box	application:	pull wire
payment terms:	L/C, Western Union, T/T

hangingIntroduction of cable pulleysystem

One. We manufacture many models for different purposes in the construction of overhead transmission lines.

b. They are used to support conductors, OPGW, ADSS, communication lines.

c. The pulleys of the pulley block are made of high-strength nylon or aluminum material, and the frame of the pulley block is made of galvanized steel. The transverse pulleys are mounted on ball bearings.

Remarks: All kinds of pulley blocks can be produced according to customer requirements.

If interested, please feel free to contact us for more information, we will try our best to meet your requirements.

hangingcable pulleySpecification

size	diameter/width	rate load	weight	Art
size	(mm)	(kN)	(Kilogram)	Art
HCP-01	Φ80/50	5	1.9	alum
HCP-02	Φ120/30	5	2.1	alum
HCP-03	Φ160/40	10	2.5	alum
HCP-04	Φ120/58	20	3.5	alum
HCP-05	Φ80/50	5	1.4	nylon
HCP-06	Φ120/30	5	1.6	nylon
HCP-07	Φ160/40	10	2	nylon

Applicationshangingcable pulley

Widely used in overhead power line construction. Used to release conductors. able to passConnector,Rotary joint.

A pulley block composed of multiple pulleys is often used in conjunction with winches, masts or other lifting equipment, and is often used in construction and installation projects such as lifting towers, stringing, and hoisting. It can also be used for lifting projects in docks, shipyards and warehouses.seleniumand many more.
