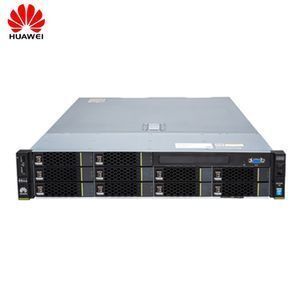

Huawei RH2288 V3 FusionServer 2U rack server

Supplier: Shenzhen Hong Telecom Equipment Service Limited
Region: Guangdong, China
Contact: Mr Charlie lee
Price: $2000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

QPI links:	2;	RAID:	RAID 0, 1, 10, 5, 50, 6, or 60;
Model Number:	RH2288 V3;	Packaging Detail:	1. Original carton package 2. As customer's requirement;
PCIe Expansion:	Up to 6 PCIe 3.0 slots;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:	HONGKONG port & Shenzhen Port;	Dimensions 1:	86.1 x 447 x 748 mm(3.5inch disk);
Processor:	E5-2600 v3/v4 series;	Delivery Detail:	About 3-7 days after receive the payment.;
Brand Name:	For HUAWEI;	Type:	Rack;
Chipset:	Intel C612;	Supply Ability:	100 Piece/Pieces per Month;
Operating Temperature:	5°C to 45°C (41°F to 113°F);	Processor Type:	Xeon;
Products Status:	Stock;	Dimensions 2:	86.1 x 447 x 708 mm(2.5inch disk);
Maximum L3 cache:	45 MB;	Place of Origin:	Guangdong China (Mainland);
Memory:	16 DDR4 RDIMMs/LRDIMMs;

Certifications

Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

Our Company

Hong Telecom Equipment Service LTD (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.

HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Introduction

Product Appearance

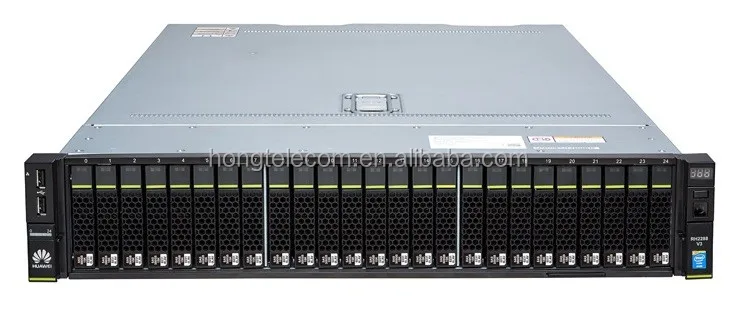

The huawei 2U rack server RH2288

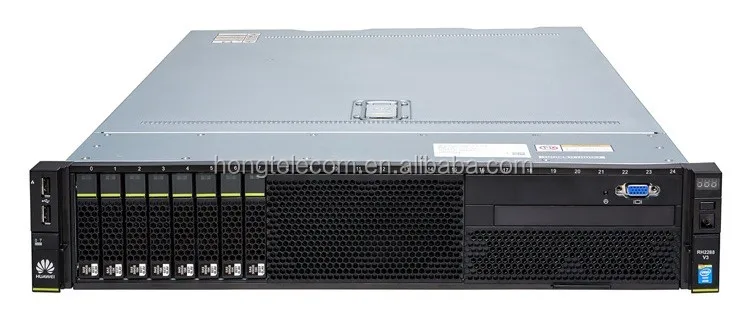

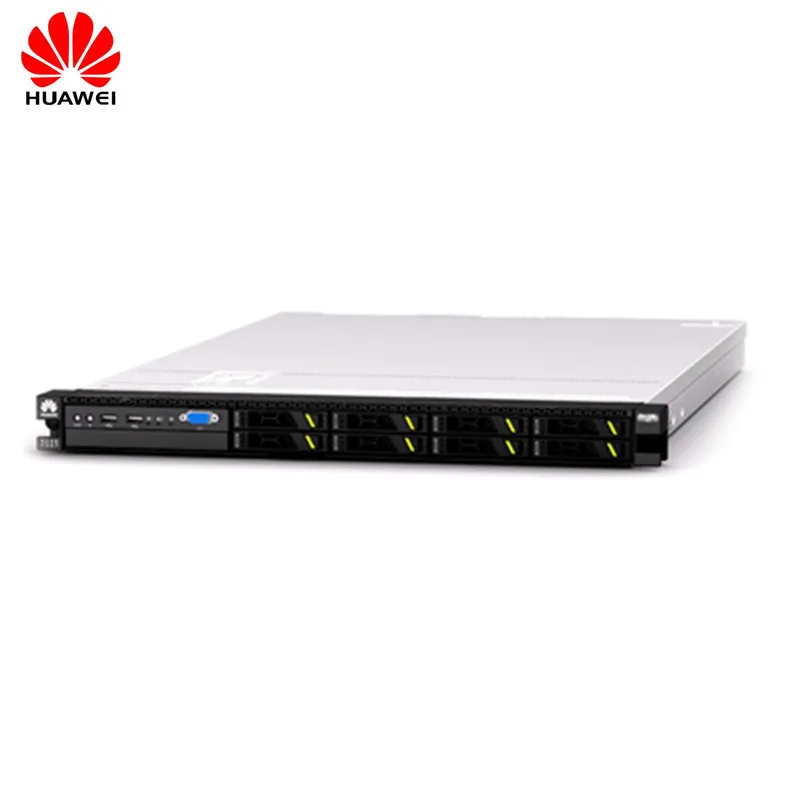

8 * 2.5 inch Hard disk

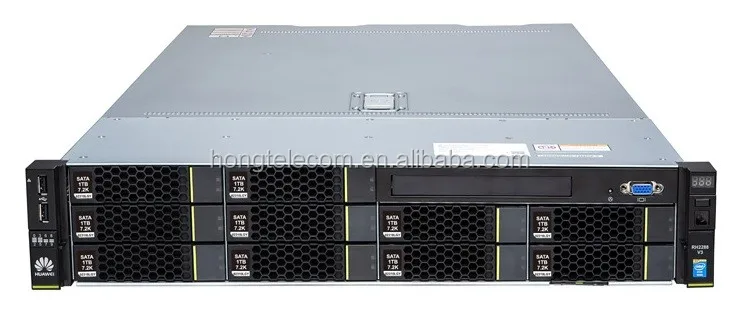

10 * 3.5 inch Hard disk

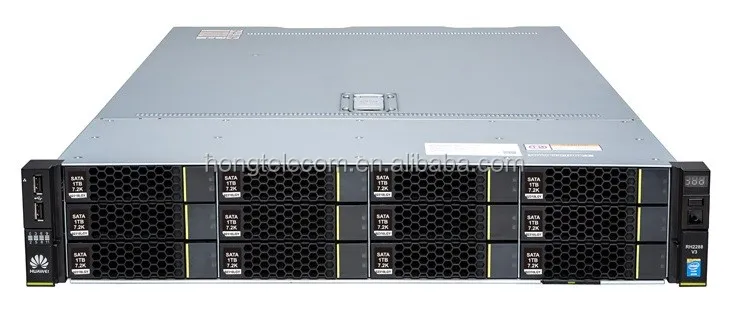

12 * 3.5 inch Hard disk

25 * 2.5 inch Hard disk

Product features

Massive storage: Supports up to 28 x 2.5-inch or 16 x 3.5-inch hard disks, and supports the latest 12 Gbit/s SAS technology, meeting the requirements for high-bandwidth transmission of Big Data

Superior performance: Runs the latest Intel® Xeon® E5-2600 v3/v4 series processors and supports high-performance Huawei GPU cards, PCIe SSD storage cards, and NVMe SSDs

High energy efficiency: Leverages intelligent power control technologies, including Dynamic Energy Management Technology (DEMT), power capping, High-Voltage DC (HVDC), and Proportional Integration Differentiation (PID) to control heat dissipation and speed adjustment policies

Simplified and convenient management: Provides a digital LED fault diagnosis panel for local maintenance, offers the black box function to facilitate system fault locating, and supports the iBMC management module

Product Specification

The huawei 2U rack server RH2288 Specifications:

Specifications	FusionServer RH2288 V3	Tecal RH2288 V2
Processor	Intel® Xeon® E5-2600 v3/v4 series processors	* Up to two Intel® Xeon®E5-2600 series processors Core options: 4 (3.3 GHz), 6 (2.9 GHz), or 8 (2.9GHz) * Two QPI links, up to 8.0 GT/s * Maximum memory speed: 1600 MHz * Maximum L3 cache: 20 MB
Memory	16 DDR4 RDIMMs/LRDIMMs	* Up to 24 DIMM slots (12 DIMMs per processor) for installing RDIMMs or LRDIMMs. − RDIMM: Up to 384 GB with 24 x 16 GB RDIMMs for two processors − LRDIMM: Up to 768 GB with 24 x 32 GB LRDIMMs for two processors * Maximum memory speed: 1600 MHz * Memory protection: ECC
Internal Storage	Supports the following hard disk configurations: • Eight front 2.5-inch SSDs or SAS or SATA HDDs • Twelve front 3.5-inch SAS or SATA HDDs and two or four rear 2.5-inch or 3.5-inch SSDs or SAS or SATA HDDs • Twelve front 3.5-inch SAS or SATA HDDs (NVMe model supports four NVMe SSD disks) and two rear 2.5-inch or 3.5-inch SSDs or SAS or SATA HDDs • Twenty-four front 2.5-inch SAS or SATA HDDs • Twenty-five front 2.5-inch SSDs or SAS or SATA HDDs and two or three rear 2.5-inch SSDs or SAS or SATA HDDs Supports built-in Flash: • Two SD cards	The RH2288 V2 supports three types of hard disk configurations: * 8 x 2.5'' SAS/SATA hard disks or SSDs Maximum storage capacity: − 7.2 TB (SAS hard disks) − 8 TB (SATA hard disks) − 4.8 TB (SDDs) * 12 x 3.5'' and 2 x 2.5'' SAS/SATA hard disks Maximum storage capacity: − 12.6 TB (SAS hard disks) − 38 TB (SATA hard disks) * 24 x 2.5'' SAS/SATA hard disks or SSDs and 2 x 2.5'' SAS/SATA hard disks Maximum storage capacity: − 23.4 TB (SAS hard disks) − 26 TB (SATA hard disks) − 14.4 TB (SSDs) * Mixed configuration of SAS and SATA hard disks and SSDs is supported.
RAID	RAID 0, 1, 10, 5, 50, 6, or 60 Configured with a supercapacitor for power-off protection for the cache (optional) RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration	Various RAID controller cards are applicable to the RH2288 V2: * SR120: supports RAID 0, 1, and 10. * SR220: supports RAID 0, 1, 10, 5, and 50 with eight hard disks. * SR620: supports RAID 0, 1, 10, 5, 50, 6, and 60 with eight hard disks. * SR320: supports RAID 0, 1, 10, 5, and 50 with 16 hard disks. * SR420: supports RAID 0, 1, 10, 5, 50, 6, and 60 with 24 hard disks. * SR220, SR620, SR320, and SR420: support a 512 MB or 1 GB cache. The RH2285 V2 provides power-off protection options: * BBU: 3 x 24 hours * Supercapacitor: permanent
Network Ports	2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports	Four integrated GE 1000BASE-T ports that use Intel 82580 network chips and support NC-SI The Intel 82580 is a single-chip low-power device that supports dual- or quad-port GE designs. It provides four 1000BASE-T ports that integrate the Media Access Control (MAC), physical layer (PHY), Serial Gigabit Media Independent Interface (SGMII) and Serializer/Deserializer (SERDES), and supports PCIe 2.0.
PCIe Expansion	Up to 6 PCIe 3.0 slots	A single processor supports the following (a riser card is required): * One PCIe 3.0 x16 card of full height and full length * One PCIe 3.0 x8 card of full height and three fourths length * One non-standard PCIe slot for installing a RAID controller card Dual processors support the following (a riser card is required): * One PCIe 3.0 x16 card of full height and full length * One PCIe 3.0 x8 card of full height and three fourths length * Three PCIe 3.0 x8 cards of half height * One non-standard PCIe slot for installing a RAID controller card
Fan Modules	Hot-swappable fan modules in N+1 redundancy mode	Four hot-swappable counter-rotating fans, allowing single-fan failures
Power Supply Units	2 hot-swappable PSUs in 1+1 redundancy mode	* Two redundant hot-swappable PSUs: − 460 W/750 W/800 W AC − 800 W –48 V DC * Conversion efficiency: Up to 94% (for 460 W/800 W AC PSUs and 800 W –48 V DC PSUs)
Management	Uses the Huawei Hi1710 management chip and independent ports Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios	UEFI, Huawei iMana
