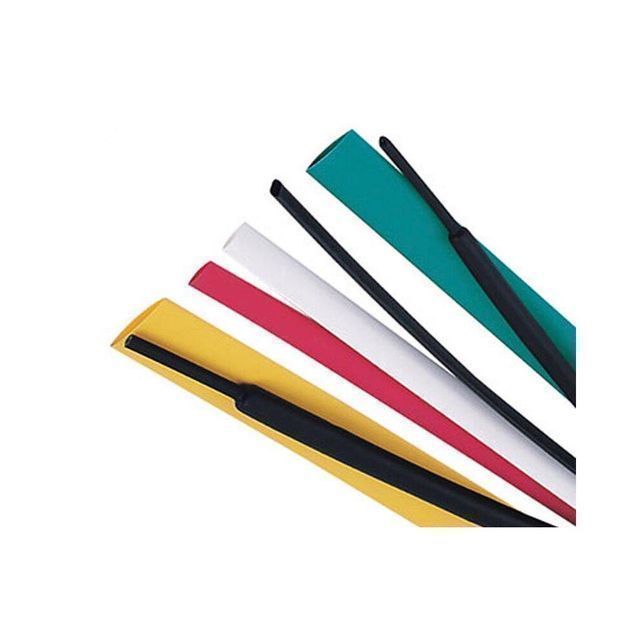

3:1 general-purpose heat shrink tubing with excellent physical and mechanical properties

Supplier: Changzhou Longchuang Insulating Material Co., Ltd.
Region: Jiangsu, China
Contact: Mr zhao
Price: $0.04 / 1 - 9 meters
$0.03 / 10 - 49 meters
$0.02 / 50 - 99 meters
$0.01 / >=100 meters
Min. Order: 1 meter

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T	Supply capacity:	1,000,000 meters per day
place of origin; place of origin:	Jiangsu, China	brand:	LCD Monitor
application:	low voltage	Rated voltage:	600V
Packaging Details:	carton	tensile strength:	10.4
port:	Shanghai	model:	RSFR-H(3X)
Material:	polyethylene	type:	Insulation sleeve

Product Description

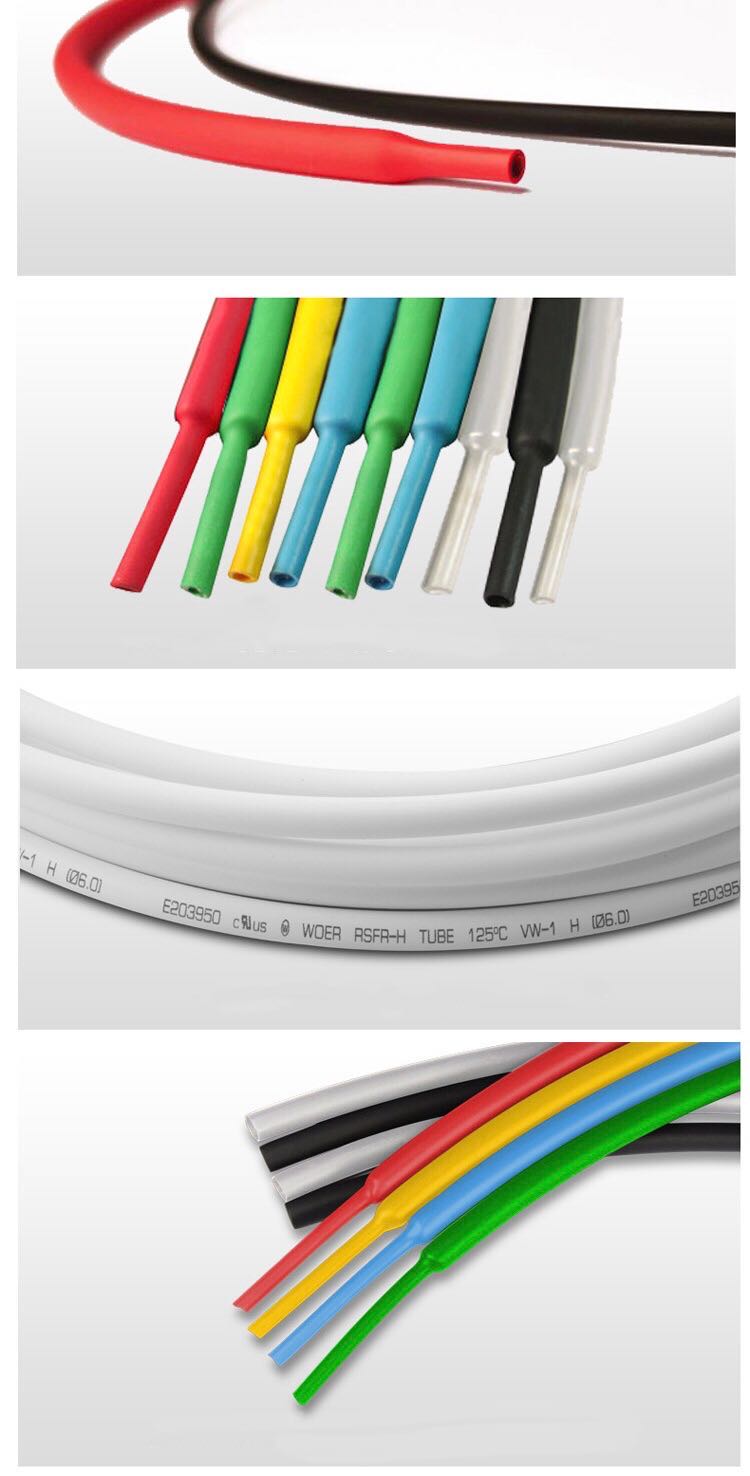

General purpose heat shrink tubing with excellent physical and mechanical properties

feature

flexible

non-flammable

Ultra thin wall

Continuous working temperature: -55°C~ 125°C

Full shrinkage temperature: ^125°C

RoHS Compliant

property	testing method	Typical performance
Tensile strength (MPa)	ASTM D 2671	≥10.4
Ultimate elongation (%)	ASTM D 2671	≥200
Tensile strength after heat aging (MPa)	158℃×168h	≥7.3
Ultimate elongation after heat aging (%)	158℃×168h	≥100
Longitudinal change (%)	ASTM D 2671	-5%~+5%
flammable	ASTM D 2671 Method C	VW-1
withstand voltage	UL 224, 2500V, 60s	no trouble
Dielectric strength (kV/mm)	ASTM D 149	≥15
Volume resistivity (Ω·cm)	ASTM D 876	≥1014
