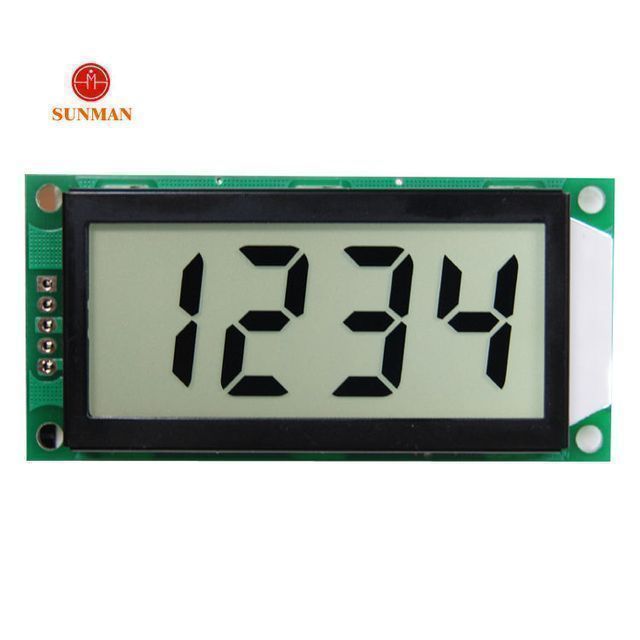

Sunman SMS0408 Monochrome 4-bit Segment LCD
-
Supplier: Changsha Sunman Electronics Co., Ltd. -
Region: Hunan, China -
Contact: Ms Doris Liu -
Price: $3.80 / 1 - 4999 pieces
$2.60 / 5000 - 9999 pieces
$1.50 / >=10000 pieces -
Min. Order: 1 piece
| place of origin; place of origin: | Hunan, China | Display method: | Transflective, VA optional |
| Backlight current: | 20mA | brand: | sun man |
| Working current: | 20uA(3.0V), 300uA(5.0V) | Operating temperature: | -20~+60℃ |
| Operating Voltage: | 2.7~5.5V | Interface mode: | Two-wire serial port |
| payment terms: | L/C, T/T | Angle of view: | 6:00 |
| Backlight color: | white | Packaging Details: | Standard carton packaging, (if you have special packaging requirements, can be negotiated) the product is Sunman SMS0408 monochrome 4-digit segment LCD display |
| Display content: | 4 decimal points + 1 time separation point | Storage temperature: | -30~+70℃ |
| Display size: | 55.3x23mm (Virginia) | type: | Tennessee |
Sunman SMS0408 Monochrome 4-bit Segment LCD
Main Technical Dates:
|
Display content: |
4 decimal points + 1 time separation point |
||
|
Operating Voltage: |
2.7~5.5V |
Backlight color: |
white |
|
Working current: |
20uA(3.0V), 300uA(5.0V) |
Backlight current: |
20mA |
|
High character: |
18.0mm |
Ambient relative humidity: |
<85% |
|
Angle of view: |
6:00 |
Operating temperature: |
-20~+60℃ |
|
Display method: |
Transflective anode |
Storage temperature: |
-30~+70℃ |
|
Interface mode: |
Two-wire serial port |
||
Description of interface signs:
|
1 Voltage: |
Positive power supply |
2 di: |
serial data input |
|
3VSS: |
Power supply (backlight cathode) |
4 clocks: |
Serial shift pulse input |
|
5 BLAs: |
backlight anode |
Outline drawing of monochrome 4-bit segment LCD:
Address mapping:
|
LCD buffer |
D7 |
D6 |
D5 |
D4 |
D3 |
D2 |
D1 |
D0 |
|
0 |
/ |
/ |
/ |
/ |
/ |
/ |
COL |
/ |
|
1 |
H1 |
C1 |
D1 |
E1 |
G1 |
B1 |
A1 |
F1 |
|
2 |
hydrogen |
C2 |
D2 |
E2 |
G2 |
B2 |
A2 |
F2 |
|
3 |
H3 |
C3 |
D3 |
E3 |
G3 |
B3 |
A3 |
F3 |
|
4 |
H4 |
C4 |
D4 |
E4 |
G4 |
B4 |
A4 |
F4 |
Other 4-digit LCD display:
Standard paper packaging:
100-300 pieces/carton, 15kg-20kg/carton, carton size: 41.5cm*36.0cm*50.0cm, 0.075cbm.
Each LCD comes with a small package in case of damage.
Shipping:
(1) Sample 1-3 working days
(2) 15-30 working days for large order
(3) The goods will be shipped by DHL, TNT, UPS, Fedex (door to door service) or your designated forwarder
(4)By DHL usually within 5 days to all areas
(1), we provide one-year warranty, and provide you with after-sales service and support at any time
(2) We have our own pcb factory, PCBA service can be provided if you need
(3) Do you need to customize LCD monitor? Contact us for a free design
Welcome to contact us for free design!
LCD&BL&LCM design/production integrated solution!
(4) Do you need more products?
-
