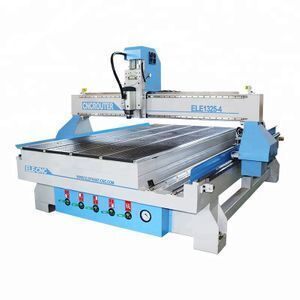

New arrival 4 axis 1325 german wood cnc machine price with rotary cutting

Supplier: Jinan Blue Elephant Cnc Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Jack Zhang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Driver Motor:	Leadshine H2-2206 Hybrid Servo Motor and Driver;	Working Area:	1300x2500x200mm;
Frame:	industrial class square tube strong structure;	Power(W):	7kw;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Packaging Detail:	Packaging Improving: Three layers--- -The innermost layer is EPE pearl cotton film package; -The middle layer is wrapping up with environmental protection material ; -And the outermost layer is winding up with PE stretch film. They're very environmentally friendly. If you need a wooden box, we will make a wooden box outside the machine.;
Supply Ability:	200 Set/Sets per Month german cnc machines;	Table Surface:	Vacuum & T-slot Table;
Condition:	New;	Warranty:	12 Months;
Voltage:	AC380V 3PH (Option);	After-sales Service Provided:	Video technical support;
Spindle:	4.5KW Italy HSD Air Cooling Spindle;	Inverter:	5.5kw Taiwan Delta Inverter;
Applicable Industries:	Farms,Restaurant,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Certification:	CE SGS ISO9001 BV TUV;
Control System:	Mach3 4 Axis Control System;	Brand Name:	BLUE ELEPHANT;
Port:	Tianjin, Qingdao, Shanghai;	CNC or Not:	CNC;
After-sales Service Provided:	Engineers available to service machinery overseas;	Product Name:	german cnc machines;
Application:	Wood, Cylinder Object, MDF, Woodworking;	Dimension(LWH):	320021401850mm;
Weight:	1400kg;	Place of Origin:	Shandong China (Mainland);

Product Description

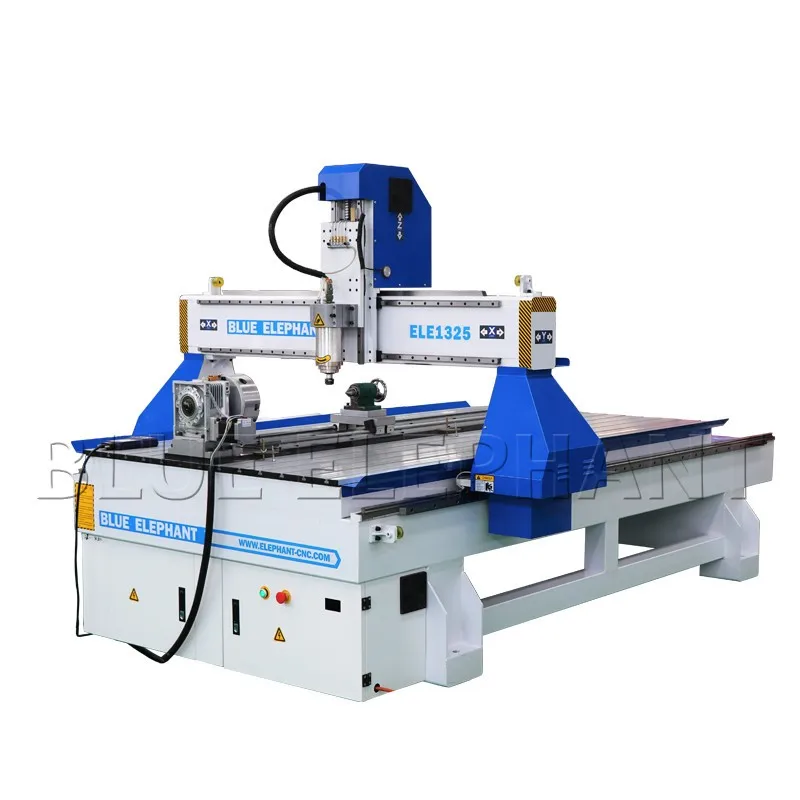

New arrival 4 axis 1325 german wood cnc machine price with rotary cutting

Main Features

1) 4.5kw Original Italy HSD air cooing spindle. The most famous brand, have after-sales service all over the world, high stable working.
2) 300mm rotary device on the side, for processing cylinders such as chair leg, sofa legs, table legs etc.
3) Adopt industrial class square tube Strong structure, very important for acquire longer lifetime of the router.

Product Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Technical parameters

Description	Parameter
Lubrication system	Automatic lubrication system
X,Y,Z Working Area	13002500200mm
Structure	Welded Steel Square Tube Structure
Working voltage	AC380V, 50Hz, 3PH
Table Surface	Vacuum and T-slot Table
Spindle	4.5kw HSD air cooling spindle
Spindle speed	0-18000 rpm
X, Y Structure	Rack and Pinion Drive, Taiwan ABBA #20 Rail Linear Bearings
Z Structure	Taiwan ABBA #20 Rail Linear Bearings and Ball Screw
Motor and driver	Leadshine H2-2206 Hybrid Servo Motors and Drivers for all axis
Inverter	5.5kw Taiwan DELTA inverter
Command Language	G Code
Control System	Mach3 4axis control System
Vacuum pump	5.5kw water circulation vacuum pump
Software Compatibility	ARTCAM Software
Tool sensor	Manual tool sensor calibration

Details part

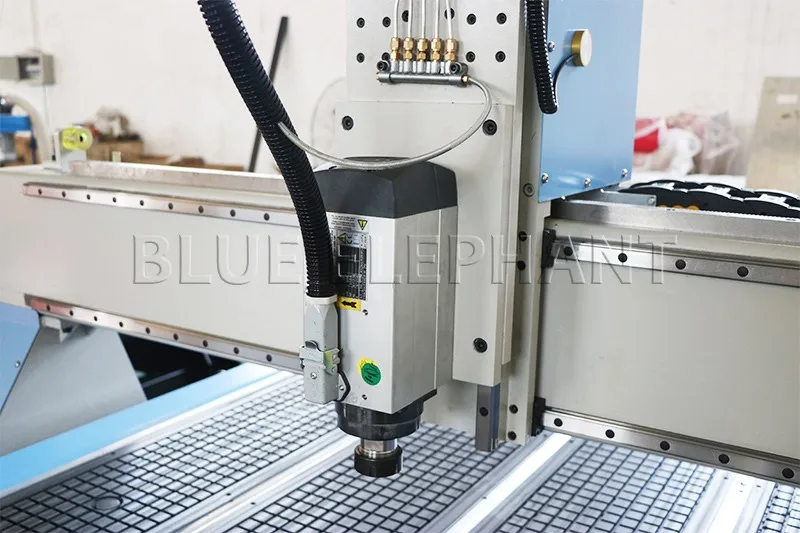

Spindle

4.5kw HSD air cooling spindle

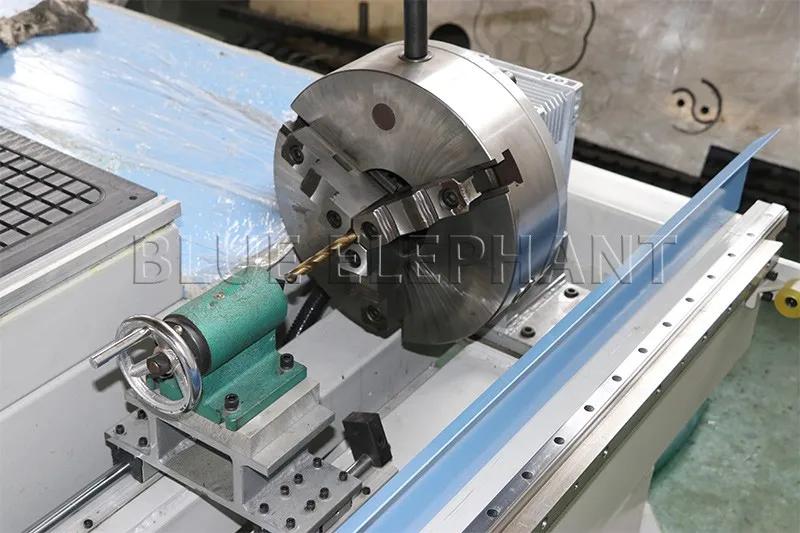

Rotary device

300mm rotary device on the side

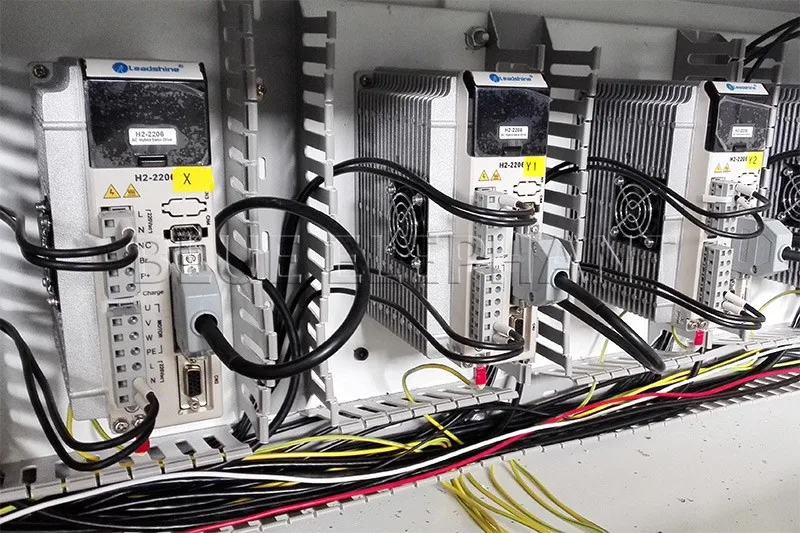

Motor and driver

Leadshine H2-2206 Hybrid Servo Motors

and Drivers

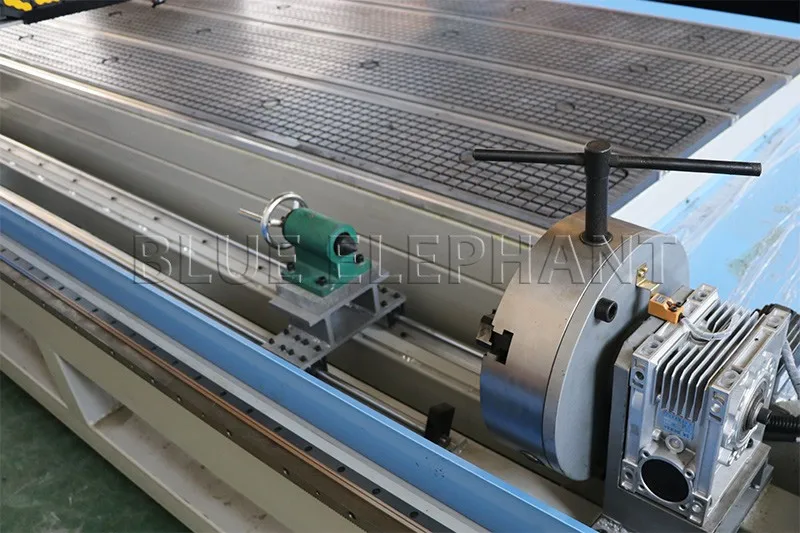

Rotary device

300mm rotary device on the side

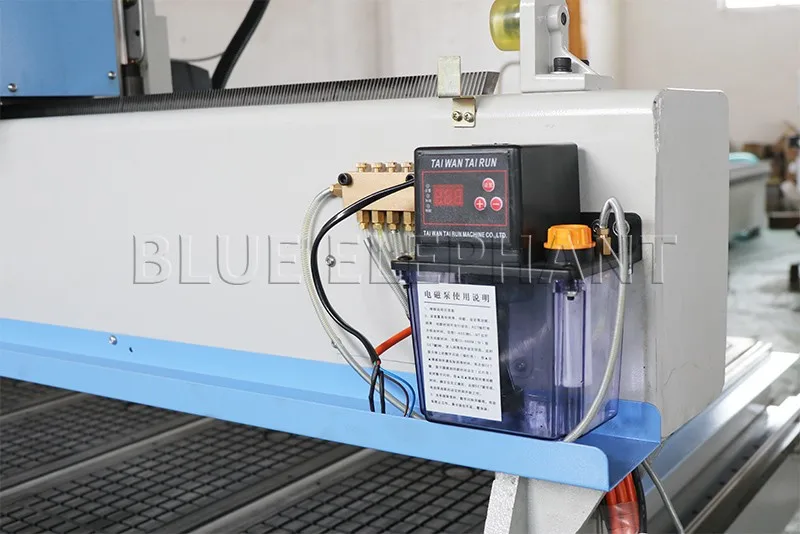

Lubrication system

Automatic lubrication system

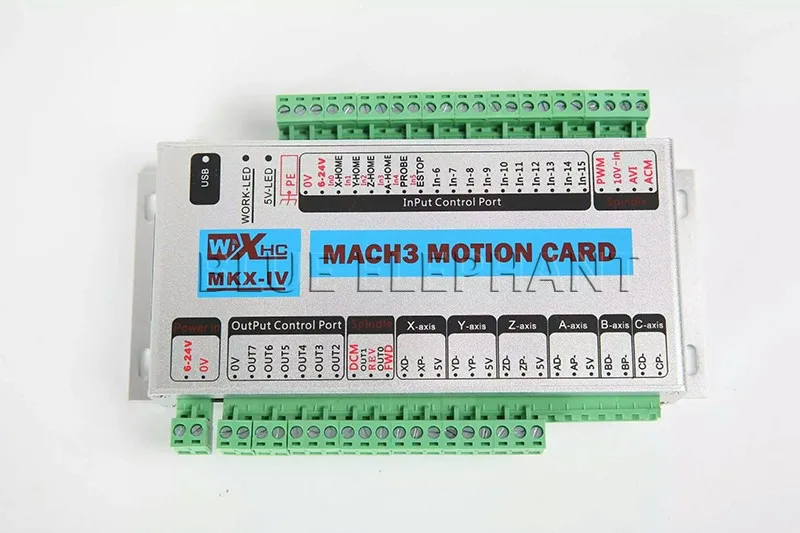

Control System

Mach3 4axis control System

Certifications

Customer visiting

Our Service

Guarantee and After-sale service
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.

Customers feedback

Customers Video

Canadian customer feedback

After-sales in Cyprus

Serbian customers visit the factory

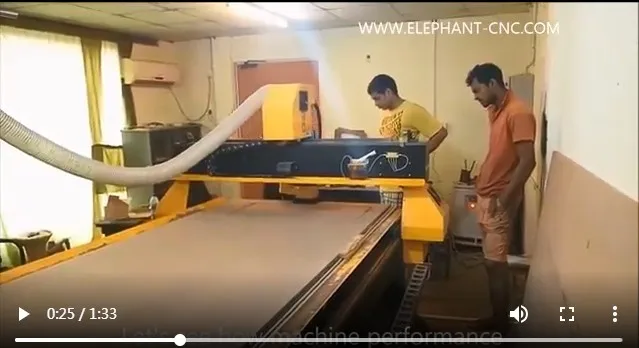

After-sales in Sri Lanka

Packing & Delivery

Packaging
Size	3200(L)2100(W)1800(H) mm
Weight	1200kg
Packaging Details	Packaging Improving: Three layers--- -The innermost layer is EPE pearl cotton film package; -The middle layer is wrapping up with environmental protection material ; -And the outermost layer is winding up with PE stretch film. They're very environmentally friendly. If you need a wooden box, we will make a wooden box outside the machine.
