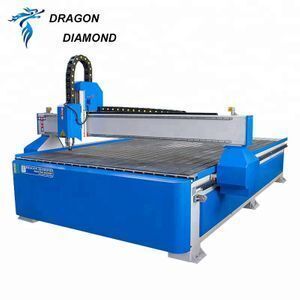

Hot Sale Nc Studio Control System Cnc Router 2030 Wood Carving Machine For Wood Kitchen Cabinet Door
- 5500.00 set
| software: | Artcam, Type3, Ucancam V9,etc; | Table structure: | T-Slot and Vacuum table; |
| Product name: | Standard Size 2030 CNC Wood Working Machine; | Port: | Guangzhou; |
| X Y Transmission: | Helical rack &pinion; | Packaging Detail: | Standard Exporting Plywood Wooden Case; |
| Supply Ability: | 50 Set/Sets per Month; | X Y Z Guide Rail: | TAIWAN HIWIN Square Rail; |
| Dimension(L*W*H): | 2000mm*3000mm*200mm; | Command Language: | HPGL, G Code; |
| Power(W): | 3.0 KW; | Certification: | CE; |
| Condition: | New; | Motor and Driving System: | Stepper motor (86BYGH450B) and driver; |
| Control System: | NC Studio control system; | Spindle Power: | 3.0KW Water Cooling; |
| Voltage: | AC 220V± 10%, 50/60Hz; | Z Transmission: | Germany NEFF Ball Screws; |
| Warranty: | 2 Years; | Brand Name: | DRAGON DIAMOND; |
| Weight: | 1500kgs/1600kgs; | Payment Terms: | L/C,T/T,Western Union; |
| Place of Origin: | Guangdong China (Mainland); | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
| After-sales Service Provided: | Online support; | CNC or Not: | CNC; |
Hot Sale Nc Studio Control System Cnc Router 2030 Wood Carving Machine For Wood Kitchen Cabinet Door
Product parameters
Effective working area | 2000(X)mm*3000(Y)mm*200(Z)mm |

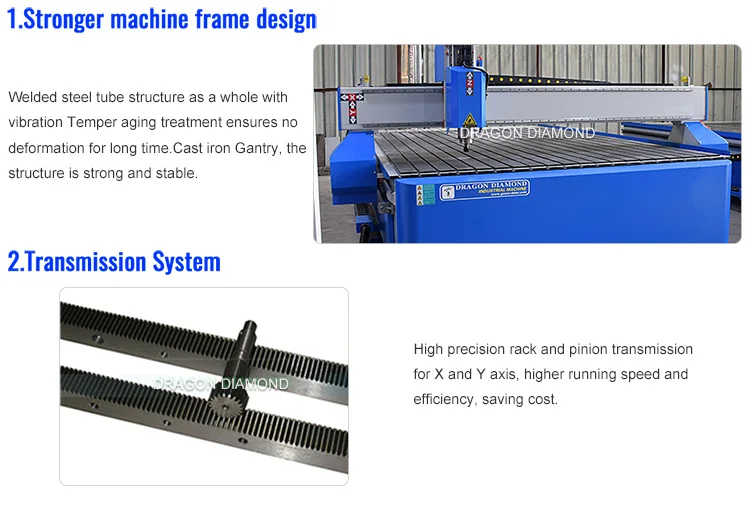

Materials | More thickness steel pipe welded machine holder bed, cast iron gantry |
Working table | Aluminum T slot working table |
Moving type | Gantry moving |

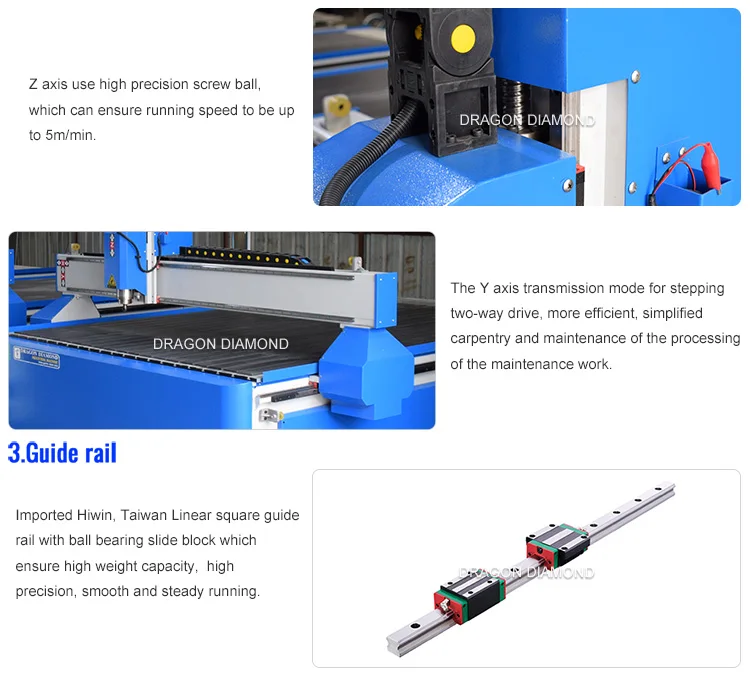

Guide rail | Taiwan Hiwin Linear square guide rail |
Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |

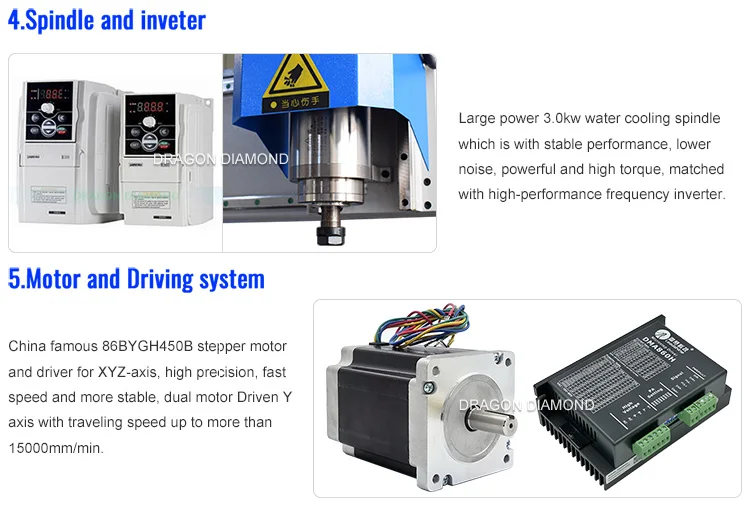

Driving mode | Stepper motor (86BYGH450B) and driver for XYZ-axis |
Spindle motor | 3.0kw water cooling spindle |
Spindle speed | 0-24000rpm |
Collets type | ER20 |
Inverter | Sunfar inverter |
Voltage | AC 220V± 10%, 50/60Hz, single phase or AC 380V±10%, 50/60Hz, three phases |
Traveling speed | >25000mm/min |
Engraving speed | >12000mm/min |
Machine accuracy | 0.03mm |
Control system | NC Studio |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |
Tool calibration | Auto |
Certificate | CE |
Product Features
7.More Function
1.Auto tool calibration, more convenient for each time Z-axis 0 point setting.
2.With the function of Break-point memory, power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.

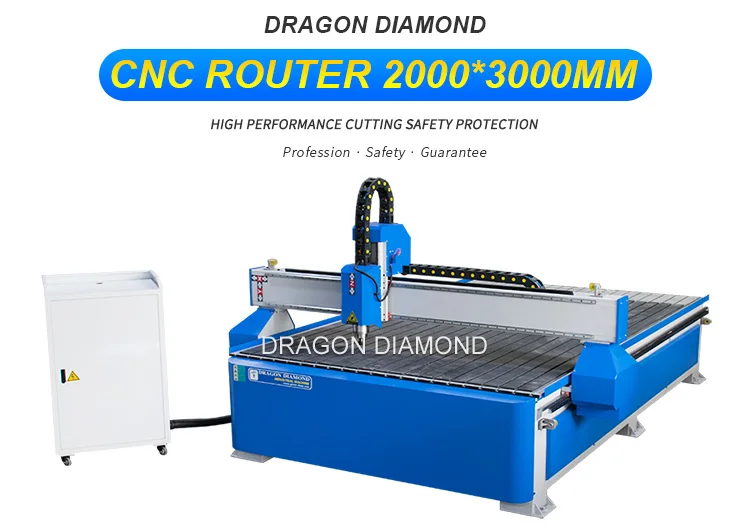

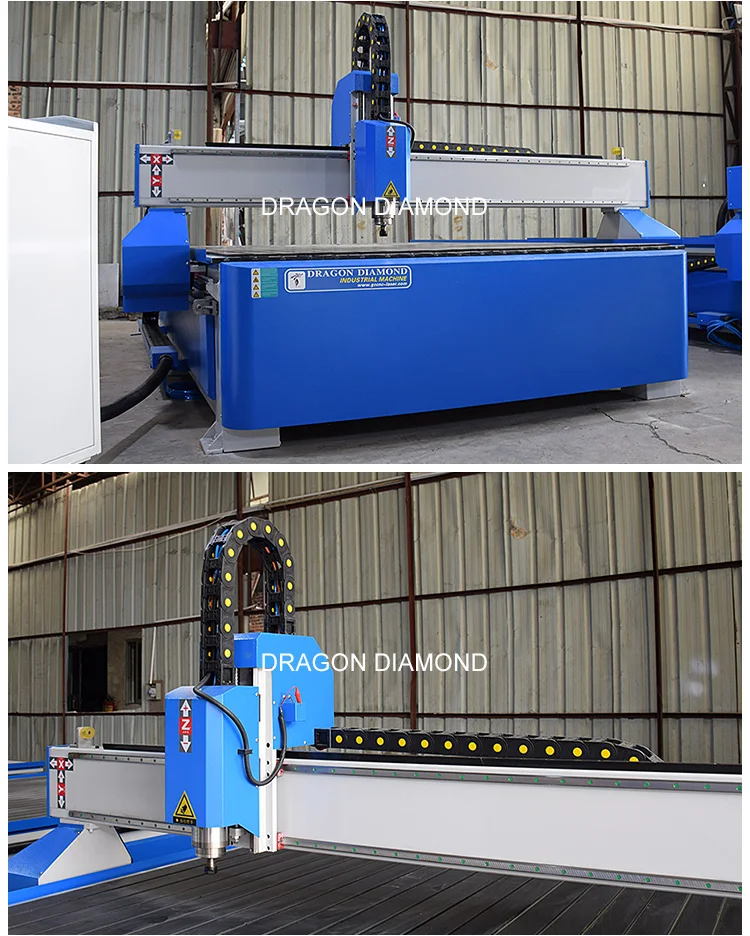

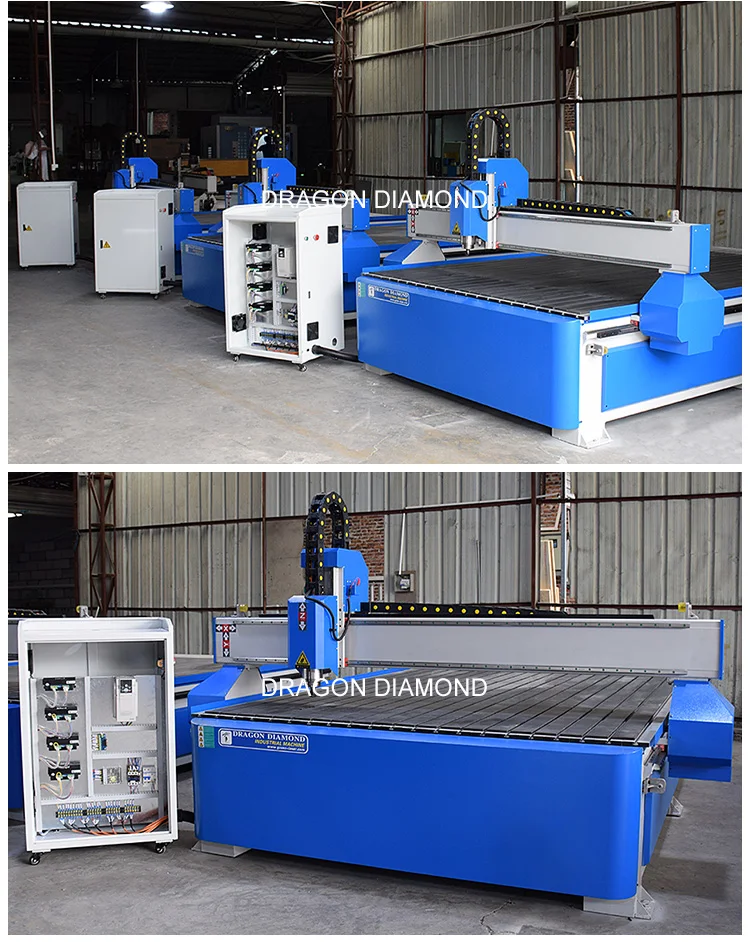

Product Photos

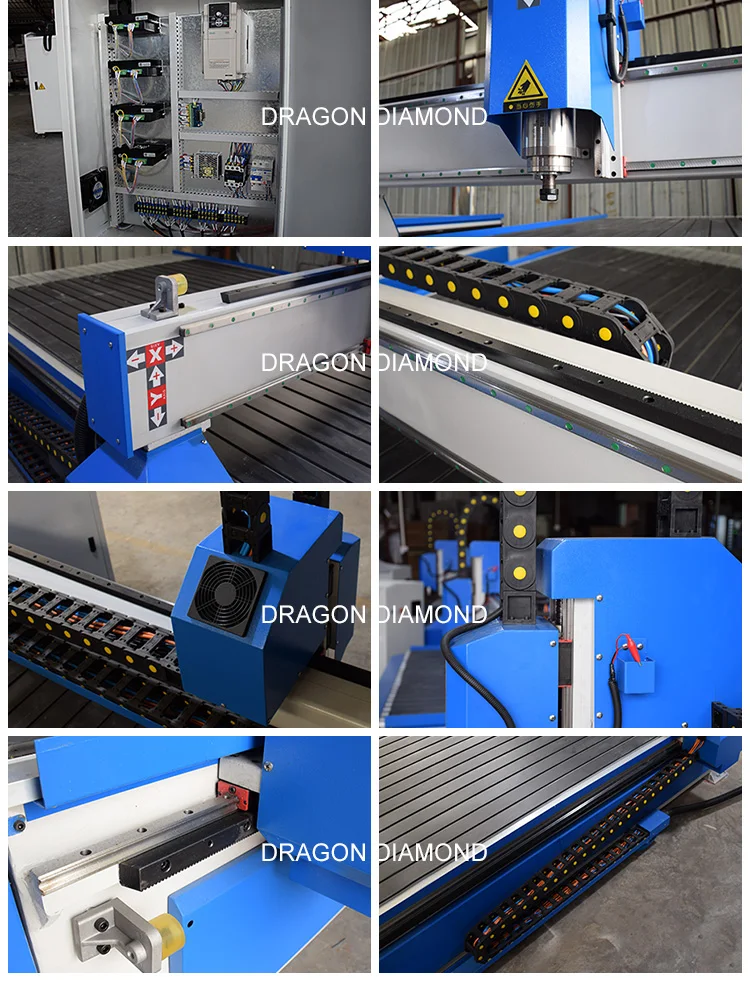

Product details

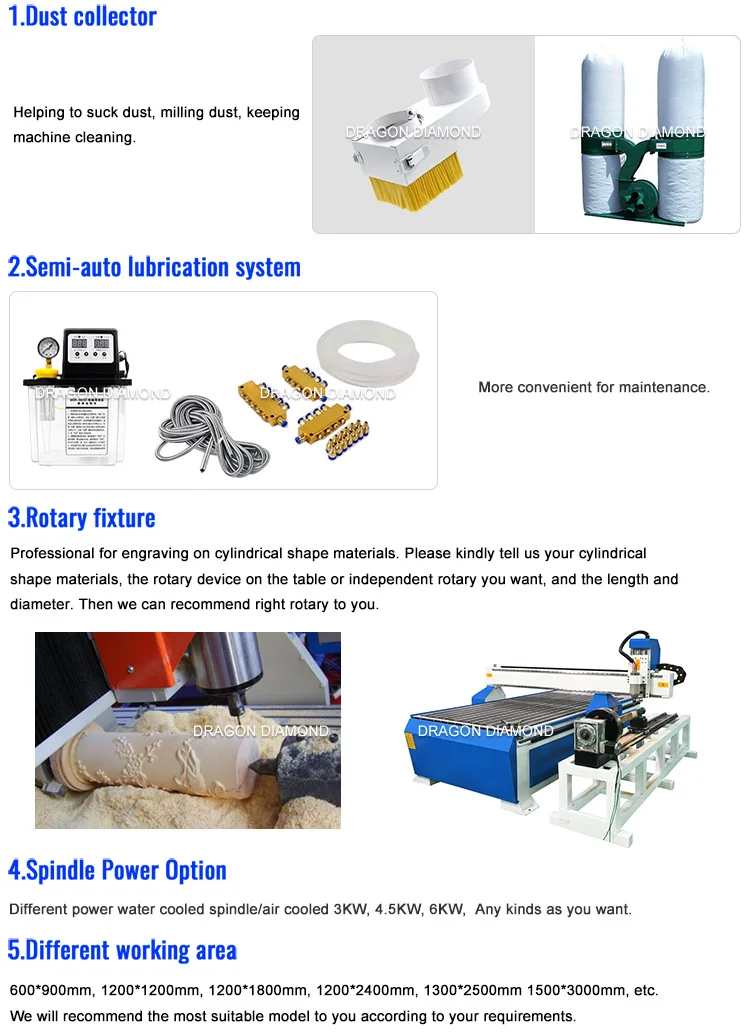

Option Device
