Tyno True Color Auto Darkening Visor 15 Welded Lenses at a Great Price

Supplier: Hangzhou Tainuo Electronic Tech Co., Ltd.
Region: Zhejiang, China
Contact: Mr James Ma
Price: $3.50 / >=200 pieces
Min. Order: 200 pieces

Click here to contact

Product details

payment terms:	wire transfer	Warranty:	1 year
port:	Ningbo, China	Sensitivity:	automatic
Dark shades:	DIN11	model:	TC108
delay:	0.2-0.5S, automatic	OEM, Design Manufacturer:	Yes
True Color Technology:	Yes	Package preview:
Supply capacity:	100000 pieces per month	Optical class:	1/1/1/2
Customization support:	OEM,ODM,OBM	power supply:	Solar battery + sealed lithium battery
Operating temperature:	-10°C to +60°C (14°F~140°F)	Dimensions (LxWxH):	OEM production
UV/IR Protection:	Always up to DIN15	Certification:	CE EN397 & ANSI
brand:	China Tiannuo	Switching time:	<1/25000S
Dark state level:	Fixed shade, DIN11	Sensitivity Control:	automatic

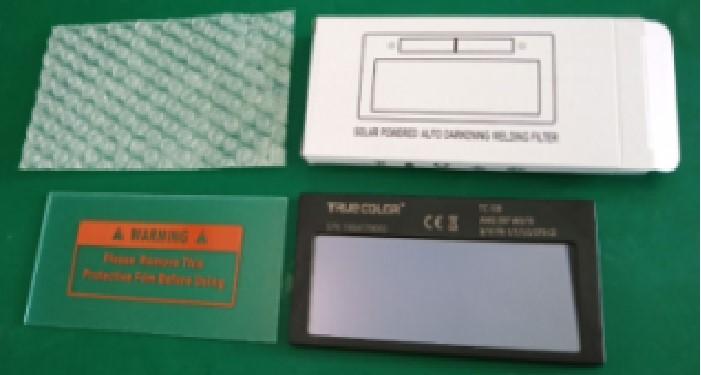

Packaging Details:	Packing 1: 1 piece/blister, 200 pieces/carton. Package 2: 1pc/white box, 200pcs/carton	place of origin; place of origin:	Zhejiang, China
Cartridge size:	DIY

Product overview

TC108 instruction

The TC108 is our newest small filter model.

- Auto-darkening welding filters are designed to protect the eyes and face from sparks, spatter and harmful radiation under normal welding conditions.

- The auto-darkening filter automatically changes from clear to dark when the arc strikes and returns to clear when welding stops.

- This High Quality LCD Auto Welding Helmet is constructed of strong and durable materials to ensure longevity and durability day in and day out.

- Clear vision, allowing you to see your welds from all angles.

List of functions

right level

left elevation

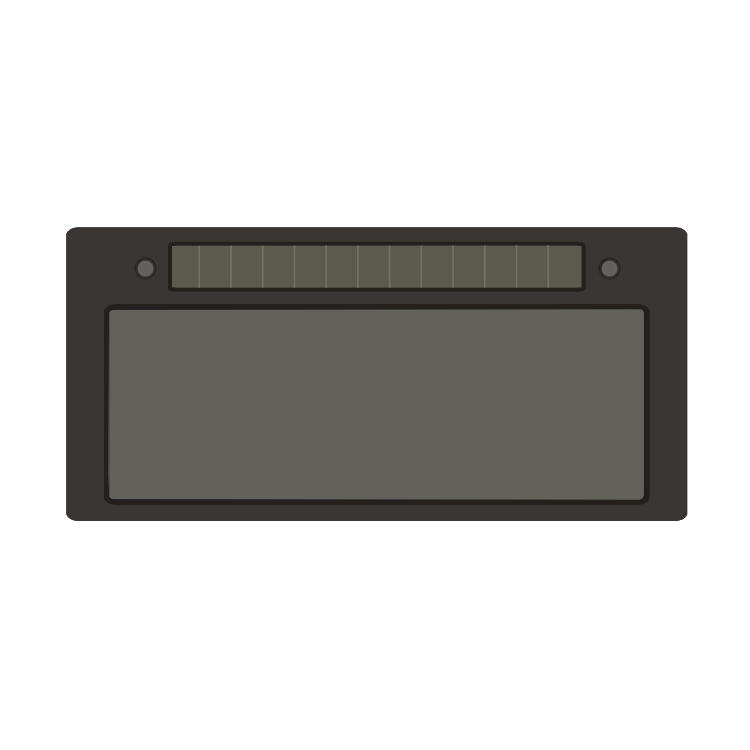

Front view

product specification

Model	TC108
optical level	1/1/1/2
vision	9434mm(3.7''1.34'')
filter dimension	108515.2mm(4.25''2''0.24'')
clear status level	#3
dark state level	Fixed shade, DIN11
Sensitivity Control	automatic
delay	0.2S to 0.5S, automatic
switching time	<1/25000S
sensor	2 arc sensors
power on/off	fully automatic
UV/IR protection	Has reached Shade DIN15
power supply	Solar battery + sealed lithium battery
Operating temperature	-10°C to 60°C (14°F~140°F)
storage temperature	-20°C to 70°C (-4°F~158°F)
Warranty	1 year
standard	DIN, CE, ANSI Z87.1, CSA Z94.3, AS/NZS
