Mini Electric Magnet 12V 20Kg 25kg Lifting Electromagnet 24v Slim Rectangular DC Electromagnet

Supplier: Zhongshan Landa Solenoid Co., Ltd.
Region: Guangdong, China
Contact: Ms Miracle Wang
Price: $30.00 / 2 - 19 pieces
$25.00 / 20 - 199 pieces
$18.00 / 200 - 499 pieces
$8.00 / >=500 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Mechanical test report:	Not available	Video external inspection:	if
place of origin; place of origin:	Guangdong, China	Core components:	Steel and enameled wire
Health status:	new	Dimensions (LWH):	1003017mm
Warranty:	1 year	Marketing Type:	New Products 2020
Weight (kg):	0.32 kg	Supply capacity:	50,000 pieces per month
Holding force(N):	180-220	Showroom location:	not any
Core component warranty:	1 year	payment terms:	wire transfer, paypal
brand:	Randa	Material:	Steel + magnetic coil
Rated power (W):	5-9	product name:	20kg electromagnet
Operating mode:	holding type	Packaging Details:	Standard export carton
port:	FOB Zhongshan	Voltage:	12v 24v
Applicable industries:	Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies

Mini electromagnet 12V 20Kg 25kg 30kg lifting electromagnet 24v thin DC rectangular electromagnet

Product Description

Specification
Card	Randa	product name	Rectangular Electromagnet
Model	H1003017	Rated voltage	DC 12v 24v
strength	5w	strength	300N
waterproof level	IP65	duty cycle	100%
cable length	200mm	Material	metal, electronic parts
form of action	Holding type	Weight (net weight)	0.33 kg
Installation method	tighten	Thread size and depth (mm)	2-M5,10
Pressure test	AC 600V 50/60Hz 2s	insulation level	Second
packaging details
body size	1003017(mm)	Carton size (standard)	350310180(mm), accept customization

Features

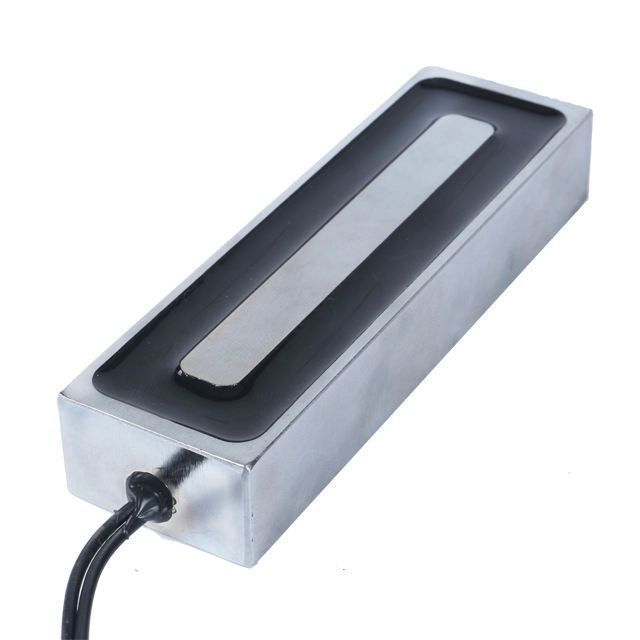

Rectangular Electromagnet

1. Handheld, rectangular, mini size, IP65 waterproof, DC solenoid solenoid.

2. The electromagnet needs to be energized to generate suction, and is widely used in the holding of ferromagnetic workpieces in machining or assembly processes, safety mechanisms, selector devices in textile machinery, door lock stop devices, etc.

3. Power-on hold, power-off release. We also offer optional spring-loaded ejector pins to overcome residual magnetism, and optional armature plates as magnetic counterparts for optimum performance.

4. Customized shapes and power-on release solenoids are also available

detailed image
