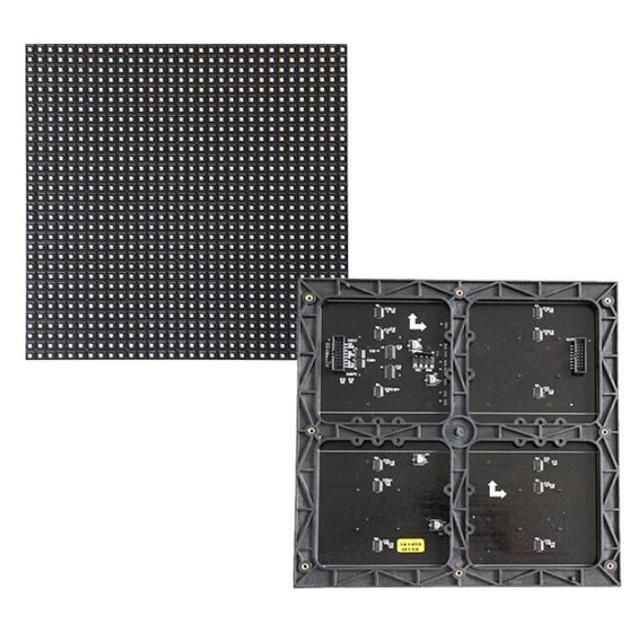

Indoor full color LED panel 244x244mm p7.62 LED module for LED video wall rental screen

Supplier: Shenzhen Cirid Optoelectricity Co., Limited
Region: Guangdong, China
Contact: Ms Tina Pan
Price: $8.78 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Warranty:	two years	Operating temperature/humidity °C/%RH:	-20℃~45℃ 10~90%RH
model:	CDN-761	After-sales service provided:	Video technical support, free spare parts
Name:	Indoor p7.62	energy consumption:	90/280
Gross weight per piece:	1.100 kg	brightness:	800
screen size:	55 inches	place of origin; place of origin:	China
Lifetime (hours):	50,000	Pixel Density:	17222
Sales unit:	single product	LED type:	Patch 3528
Single package size:	30X5X30 cm	Input voltage:	5V

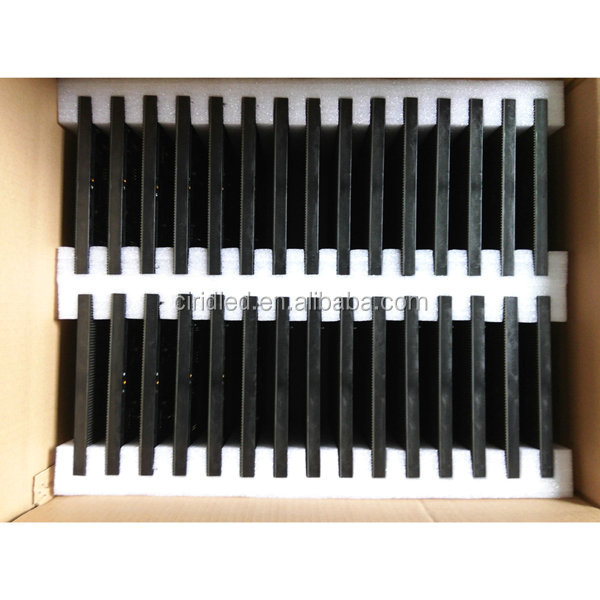

Packaging Details:	Carton Indoor Full Color LED Panel for LED Video Wall Rental Screen 244x244mm p7.62 LED Module p7.62 LED Module Indoor p7.62 LED Display Module Zoo Freexxx Video Indoor Full Color LED Panel 244x244mm for LED Video Wall Rental Screen p7.62 led module p7.62 led module indoor p7.62 led display module zoo free xxx video	Packaging Preview:
brand:	CIRID	Specification:	wall mounted, floor mounted
product name:	p7.62 LED module

Product Description

Indoor full color LED panel 244x244mm p7.62 LED module for LED video wall rental screen

SMD 3-in-1 technology, LED display use, with ultra-wide viewing angle and better surface flatness;
The color and brightness of the picture are adjusted synchronously, showing delicate and vivid color performance;
High contrast and refresh rate, no delay or smear in image rendering;

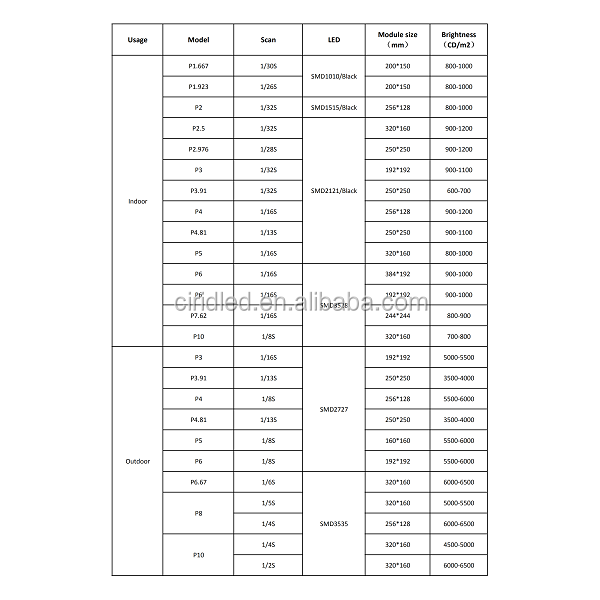

1. Indoor SMD module: P1.667, P1.923, P2, P2.5, P3, P3.91, P4, P4.81, P5, P6, P7.62, P10
2. Outdoor SMD modules: P3, P3.91, P4, P4.81, P5, P5.95, P6, P6.67, P8, P10, P16
3. Outdoor DIP LED module, high brightness and waterproof: P8, P10, P12, P16, P20
4. Outdoor DIP three-in-one: P6.67, P8, P10, P13.33
5. Indoor and outdoor single-color and two-color LED modules

thing	value
model.	CDN-761
Pixel pitch (mm)	7.62
pixel density (points/square meter)	17222

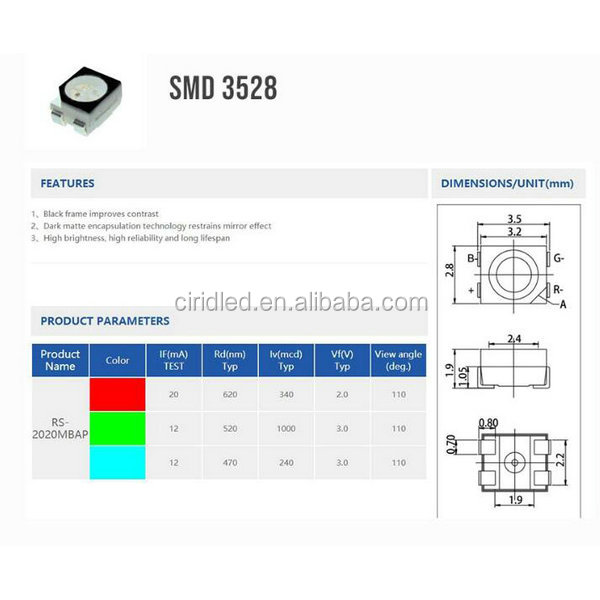

LED type	Patch 3528
Viewing angle (degrees)	High: 120 Volt: 120
Brightness (nits)	800~1200
scan mode	1/16
Refresh rate (Hz)	360~3840
Module size (mm)	244*244mm
Recommended Cabinet Size (mm)	976*976
Cabinet material	powder coated steel
Cabinet weight	≤ 45KG/SQM
energy consumption (Average/Max W/m²)	90/280
Operating temperature/humidity (℃/%RH)	-20℃~45℃ 10~90%RH
Storage temperature/humidity (℃/%RH)	-25℃~50℃ 10~90%RH
Life (hours)	≥50000 (room temperature)

Indoor full color LED panel for LED video wall rental screen 244x244mm p7.62 LED module p7.62 LED module indoor p7.62 LED display module zoo free xxx video Indoor full color LED panel 244x244mm p7 for LED video wall rental screen .62 led module p7.62 led module indoor p7.62 led display module zoo free xxx video

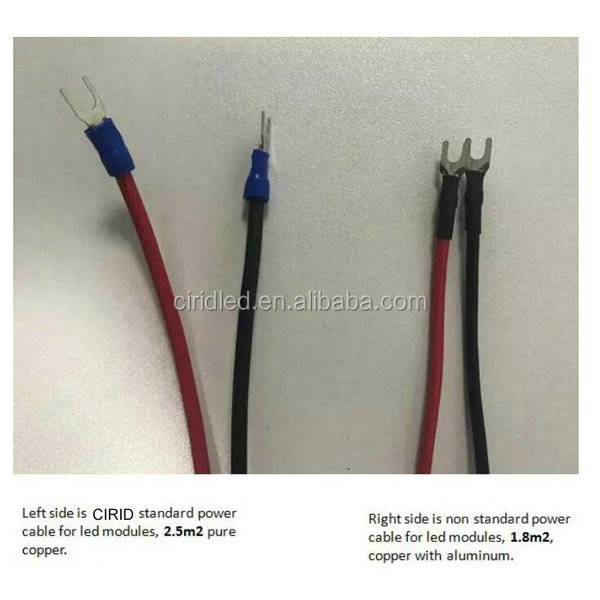

detailed image
