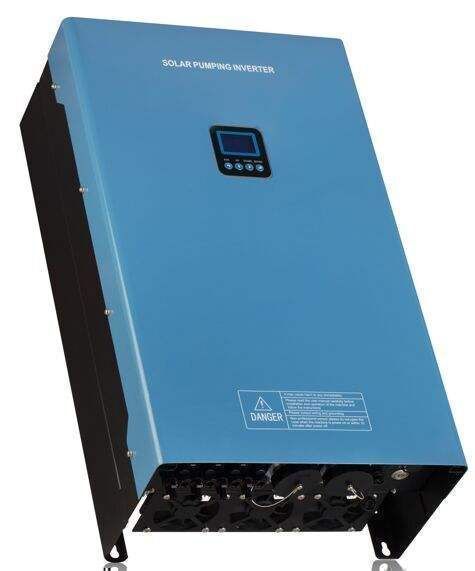

HSPH3700H 3.7kw MPPT Dry Running Protection Via Sensor Software Three Phase Hybrid Solar Irrigation Pumping Inverter

Click here to contact

Product details

place of origin; place of origin:	China	Pre-sales project design:	Yes
application:	Family	Free installation service:	Do not
Load power (W):	other	payment terms:	L/C,Western Union,D/P,D/A,T/T,EXW
Specification:	normal	brand:	Hooper
Warranty:	1 year	Working hours (hours):	24 hours
Packaging Details:	550350290MM 14Kg	model:	HSPH3700H
Supply capacity:	2000 units per month	port:	Shenzhen
Inverter:	blue

Solar Pump Inverter Specifications

Model			HSPH3700H
Solar Panel DC Input	Maximum VOC voltage	900V
		Minimum Vmp voltage	400V
		Recommended Vmp Voltage	≥500V (solar only), ≥560V (hybrid power supply)
		Maximum MPPT Efficiency	99%
		Maximum input current	14
		number of strings	2
		Overload power	6600W
		notes	Automatic MPPT function to identify Voc and Vmp of solar panel without programming
Hybrid AC/Generator Input	Voltage	Three-phase 380/400/440V
		Maximum input current	11
		blend mode	Automatic AC replenishment of solar power in low power mode, automatic disconnection of AC when solar power is restored
AC output (for Pump, Reerator, Fan parameters)	Maximum suitable AC pump horsepower	5 hp
		Maximum adaptable AC pump power	3700W
		drive mode	Three-phase variable frequency drive
		Maximum output voltage	380/400/440V
		Maximum output frequency	50～60Hz (support program range 15～60Hz)
		Maximum output current	15
maximum efficiency			97%
Water level sensor (drill/tank)			Yes
GPRS SMS Monitor			yes (optional)
Support remote monitoring system (SPMCS)			yes (optional)
exhibit			LCD Monitor
waterproof			IP65
noise			< 50dB
cooling method			Fan forced cooling (IP68)
Operating environment	Working temperature	-10～60℃, above 60℃ need derating load
		maximum humidity	95%RH
		use height	< 3000m, need to reduce the load above 3000m
		other	Prohibited installation places: direct sunlight, dense dust, corrosive gas or oil mist, flammable gas, liquid, etc.
pack	size	550350285mm
pack		weight	15KG
