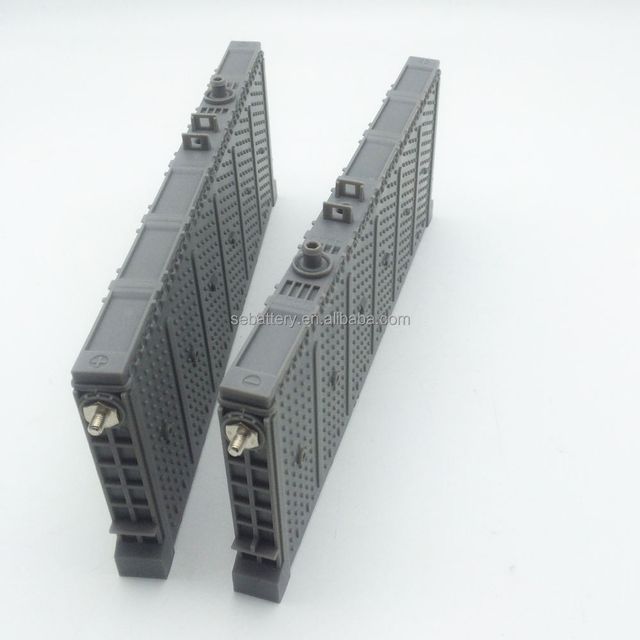

HEV Battery Ni-MH Hybrid 7.2V Battery 6500mAh Prius Module Battery

Hybrid battery module Ni-MH 7.2V 6500MAH

Specification:
Approximate Weight (grams): 1100

Size (mm): 19.6*107.5*275/283

Nominal capacity (mAh): 6500 (IEC)
Nominal Voltage (V): 7.2
Internal resistance (mΩ): 9.6
7.2V discharge capacity 7.2V cut-off: 70%
Specific energy (Wh/kg): 45
Peak power (W): 130 (DOD50%)
Specific power (W/kg): 850 (DOD50%)
Peak discharge (30C discharge, 70% SOC, 4.8V cut-off): 10S
Peak charging (15C charging, 50% SOC, 9.96V cut-off): 10S
Maximum continuous discharge (15C discharge, 70% SOC, 4.8V cut-off): 60S
High temperature performance (50°C charge and discharge capacity rate): 70%
Low temperature performance (-20°C discharge rate): 80%
Charge retention (30 days): 75%
Operating temperature: -20°C to +55°C
Storage temperature: -40 to +65°C
Cycle life (C/3 charge, 1C discharge): 3000cycles

Suitable for:
-Toyota Prius Generation 1 2001-2003 (all 38 must be replaced)
- Toyota Prius 2004-2017
- Camry Hybrid 2007-2017
- Nissan Altima 2007-2017
-Lexus GS450H
-Lexus LS250H
- Chevrolet Tahoe Hybrid
-Chrysler Aspen Hybrid
and more! ! !
