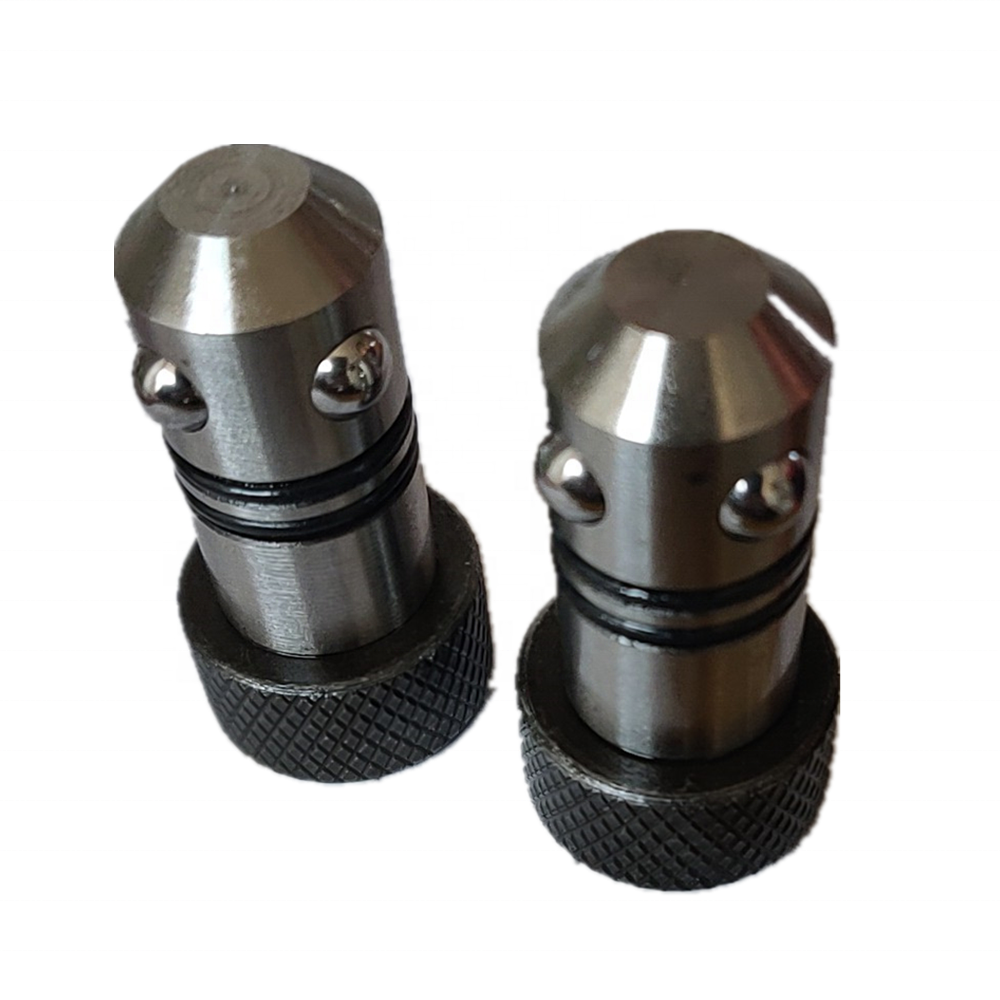

Welding Table Clamping Pins Welding Table Clamping Pins

Supplier: Hebei Bocheng Co-Creation Measuring Tool Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Ms Aimee Xu
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

diameter:	16mm 28mm 22mm	payment terms:	Letter of Credit, T/T, Western Union, MoneyGram
port:	Tianjin	Packaging Preview:
place of origin; place of origin:	Hebei china	process:	CNC machining

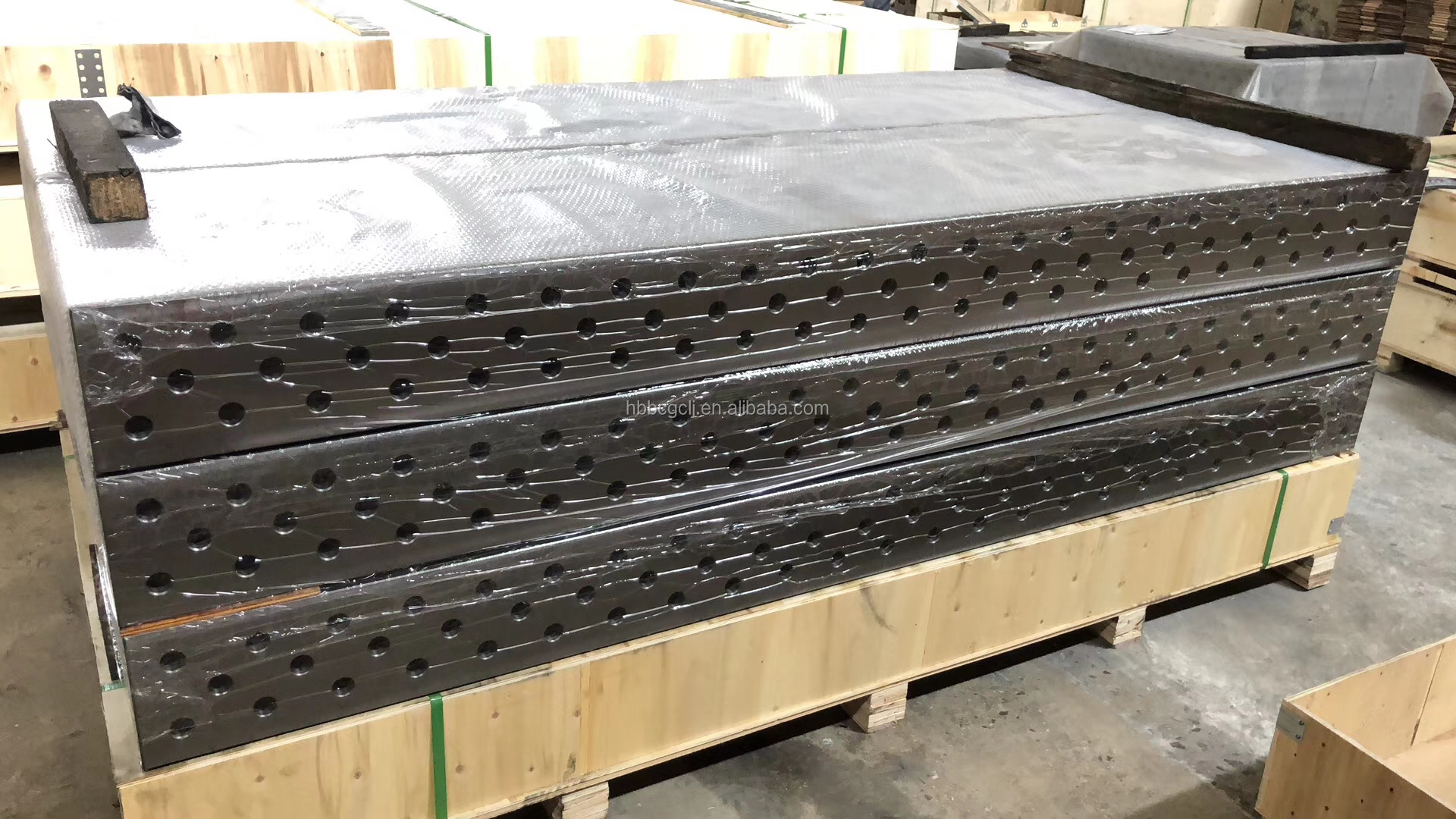

Packaging Details:	Wooden packing	Minimum order quantity:	1
Supply capacity:	20000 pieces per month	product name:	3D welding station
Custom Support:	OEM, ODM

3D Welding Table Clamping Pins Welding Table Clamping Pins

our service

1.24 hours online. Whatsapp (WeChat) 008613931798614

2. Welcome to visit us to know more about our factory.

3.OEM/ODM available:

Your logo on the product.

Customize products according to your drawings.

Any idea you have about the product, we can help you design and provide drawings.

4. After-sale service.

All products will undergo strict quality inspection in the workshop before packing.

We can take over installation or clamping activities or installation planning.

We provide completed project reports. Including contracts, drawings, quotations, forms

Invoices, technical descriptions, manufacturing schedule control plans, tests and inspections

Report, Bill of Lading, Insurance, Commercial Invoice, Packing List, Certificate of Origin.

5. Trading conditions:

MOQ: 1PC

Payment method: T/T, L/C, Paypal, etc.

Delivery time: Product in stock - 7 days. Customized Products - 15-30 days

Product Description

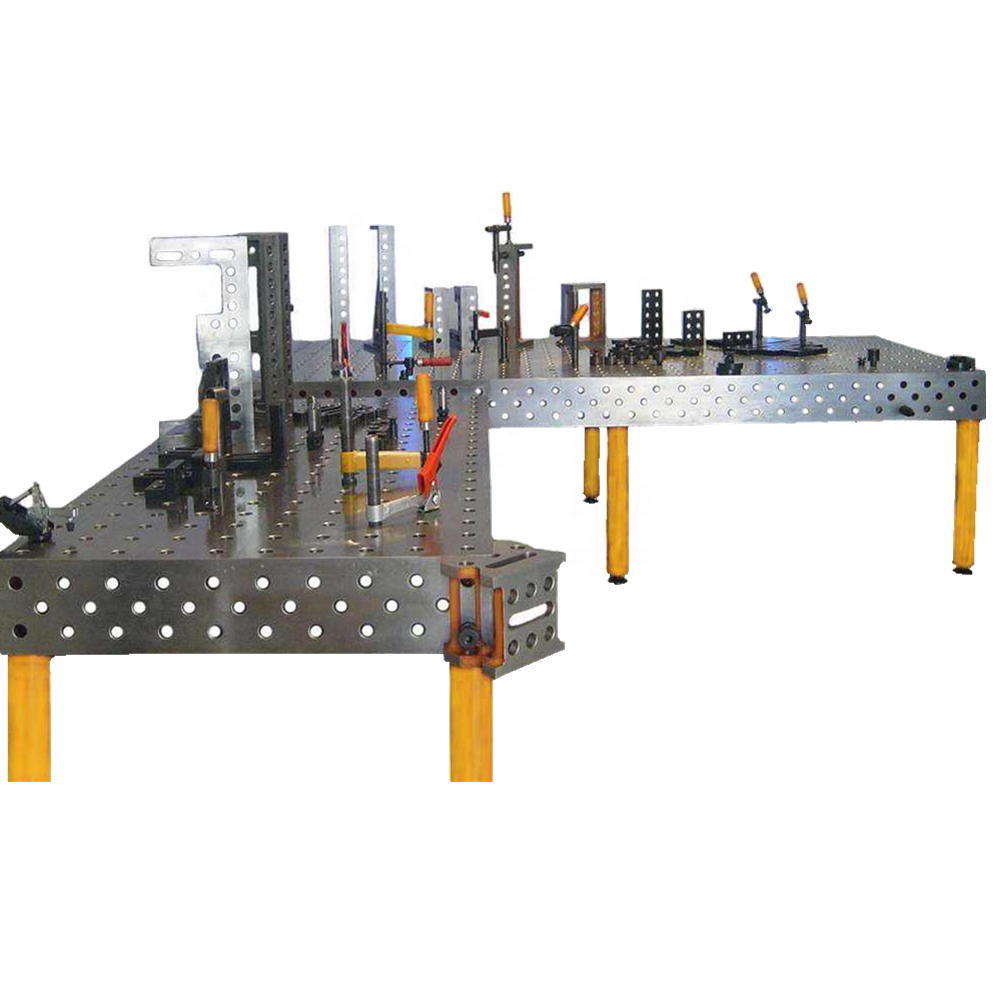

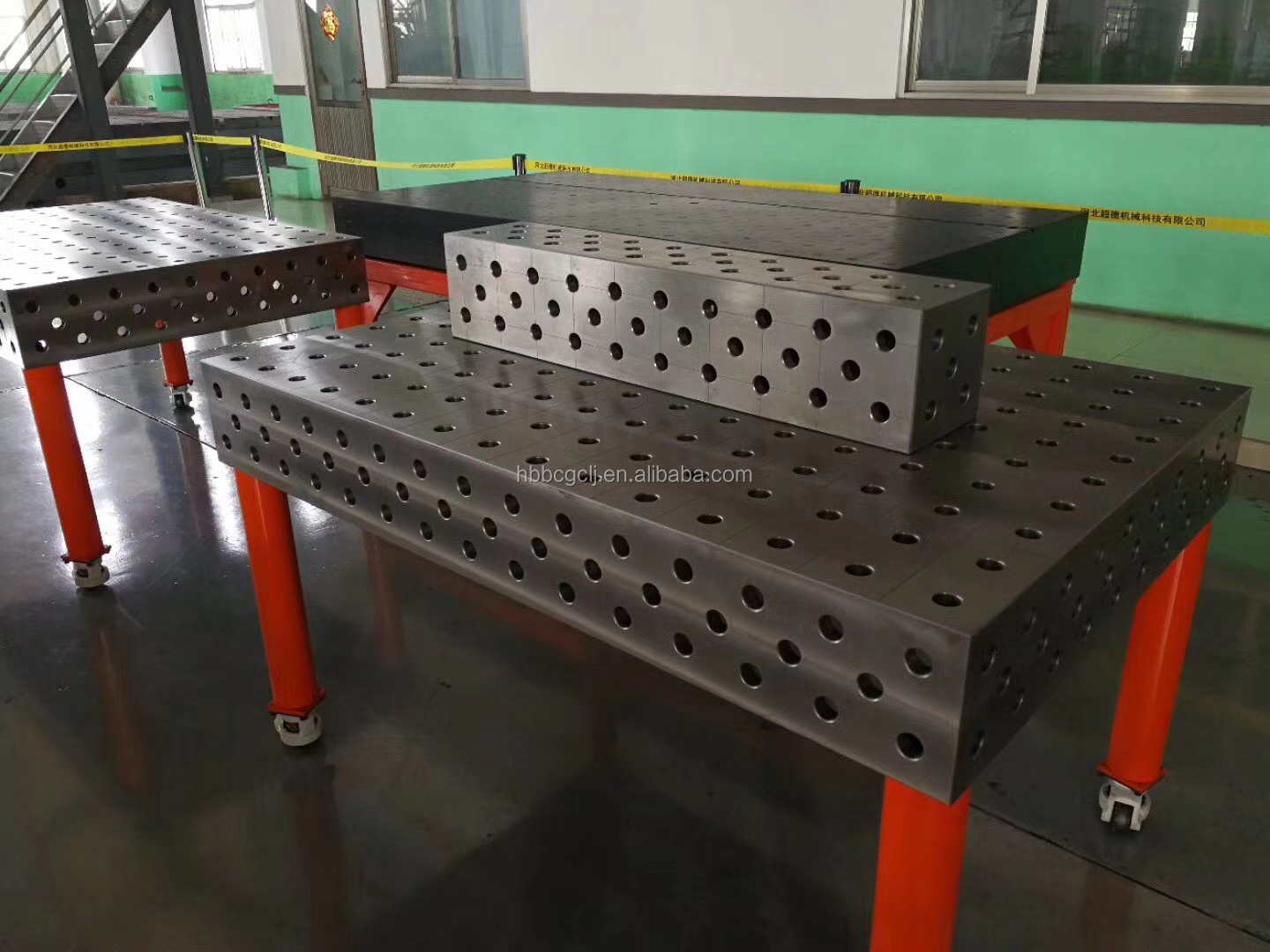

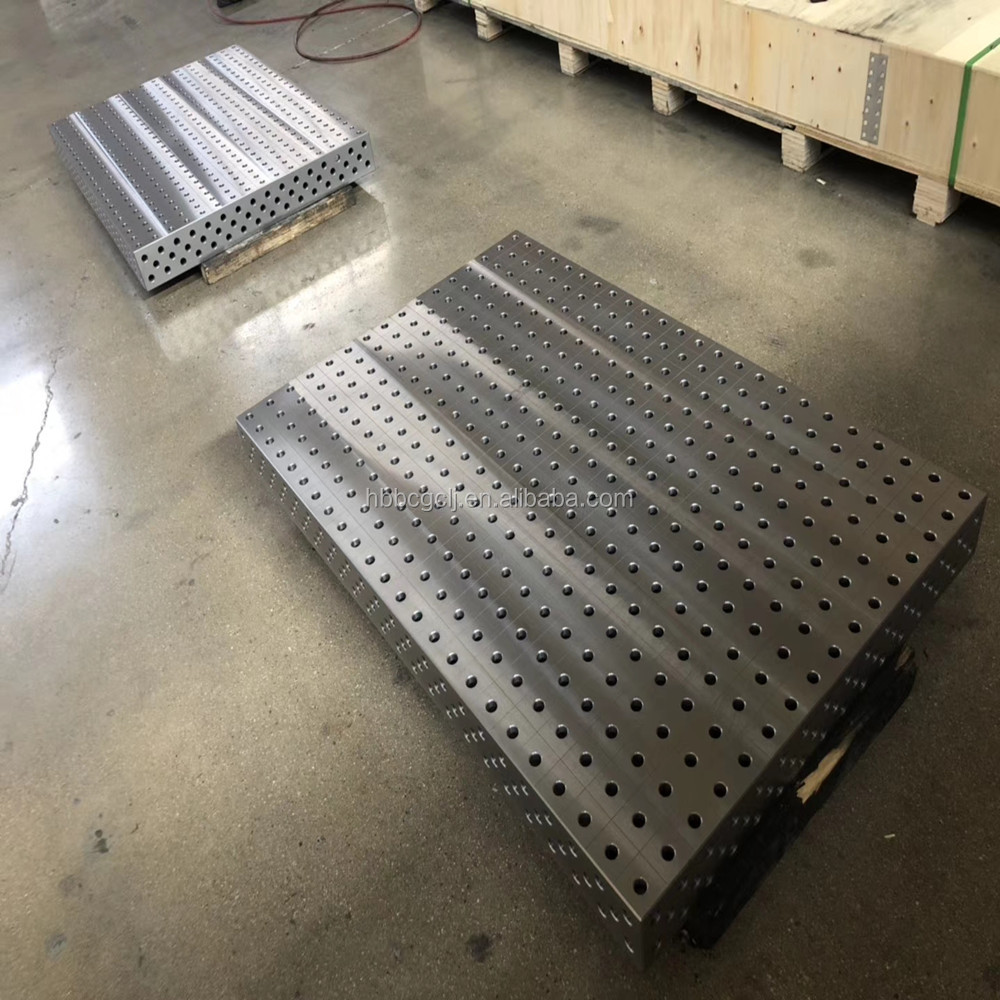

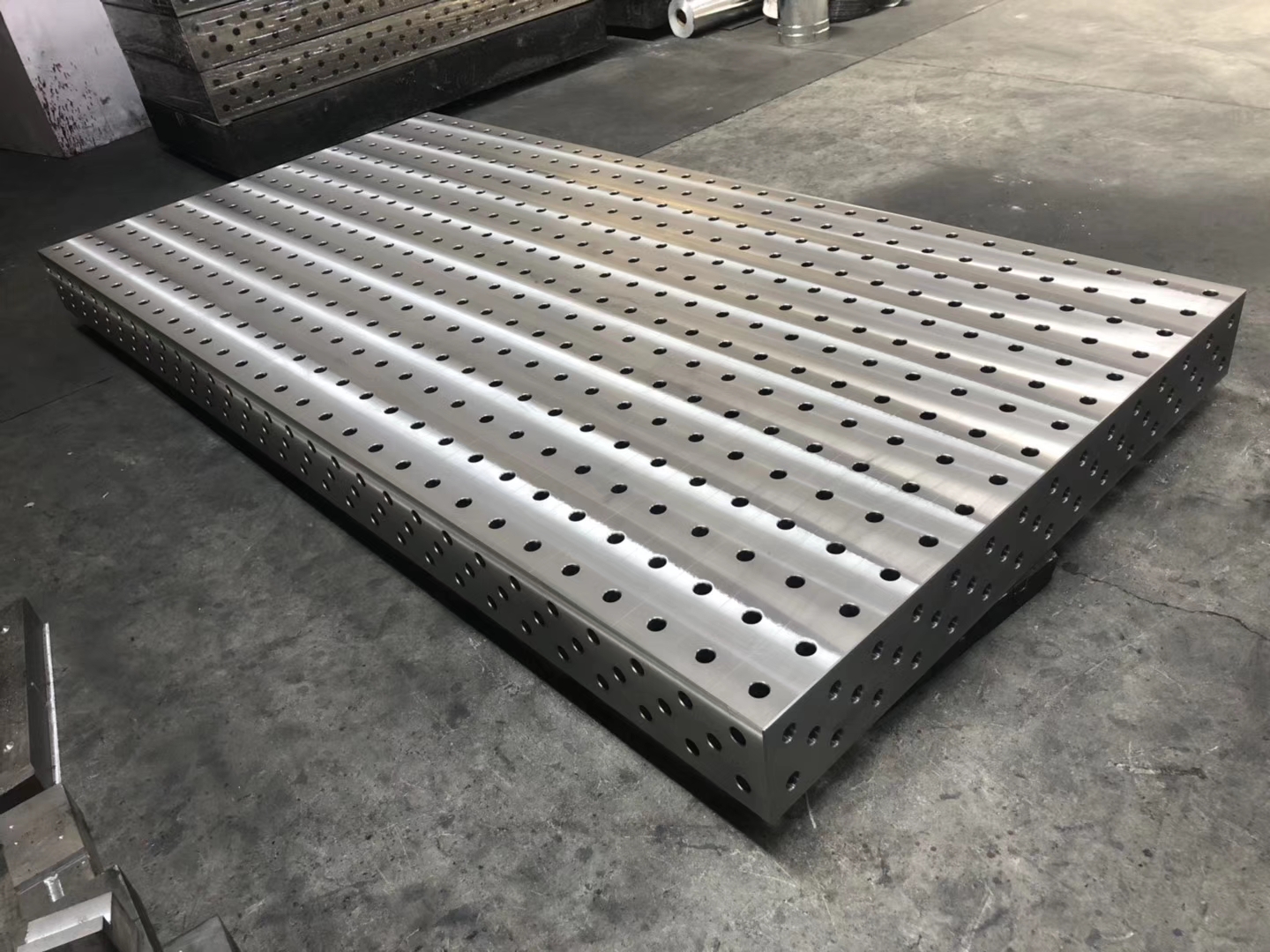

Factory produced high precision 3D welding table heavy duty

3D Soldering Station: Five working surfaces where positioning pieces can be installed. It can also be extended with any of its five work surfaces.

• According to material: steel welding station and cast iron welding station

• According to the aperture, it is divided into: D28 series, D22 series, D16 series.

Diagonal grid: D28 is 100*100mm; D16 is 50*50mm.

Support: Legs, steel frame upon request.

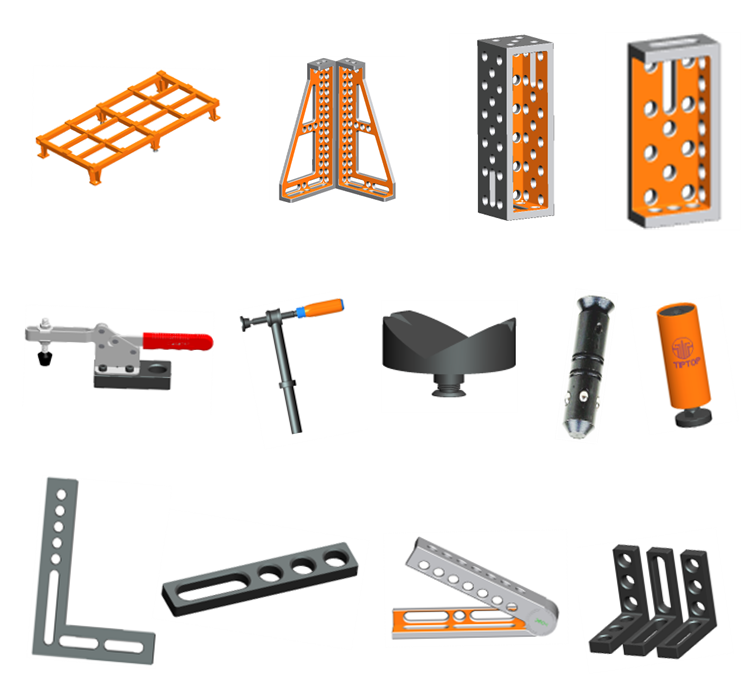

Components can be equipped when selected:

1. Support tools: U-shaped cube box, L-shaped cube box, angle support, angle gauge

2. Spare parts positioning:

3. Clamping and fixing tools

4. Spare parts for locking workpieces

5. Auxiliary tools

feature:

• During assembly or welding, almost all workpieces can be precisely fixed at some point or face with spacers, adapters, fasteners and supports.

• Inaccurate workpiece dimensions can be adjusted during preliminary machining.

• It is easy to simulate workpiece assembly through CAD using existing parts in the shop.

economy:

• Significant cost savings by not having to keep a lot of complex and expensive traditional luminaires

• Suitable for all working conditions without any modification

• Simple and safe operation.

flexible:

• Strong enough to withstand extremely heavy loads.

• Five sides, regular holes and grid lines (no angled holes or T-slots)

• Any workpiece can be fixed and clamped on the table with dowel pins

• The 3D soldering station can be attached to any of its five surfaces.

precise:

• During assembly or welding, almost all workpieces can be precisely held at certain points or faces with spacers, adapters, fasteners and support pieces

• Inaccurate workpiece dimensions can be adjusted during preliminary machining.

Repeatable:

• It is easy to simulate workpiece assembly through CAD using existing parts in the shop.

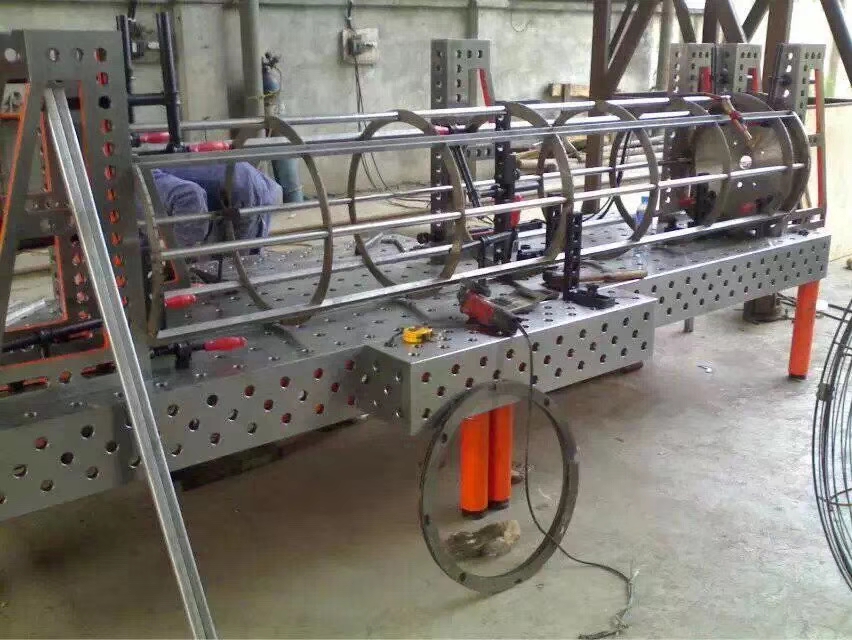

Widely used in the manufacture and processing of machinery, machining equipment, railways and tracks, automobiles, motorcycles, ships, pressure vessels, sheet metal, sorting and cabinets, test and measuring instruments, and steel structures.
