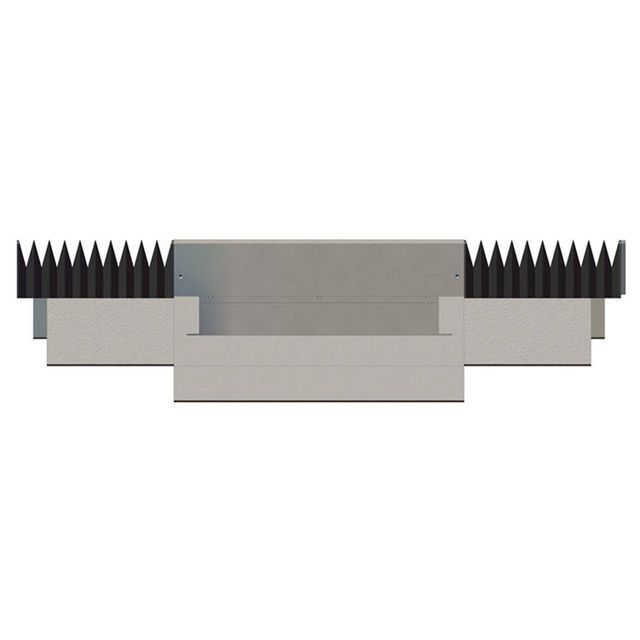

0.5um customizable single axis hydrostatic guide for lathe/grinder

Supplier: Jiangsu Lingchen Precision Machinery Co., Ltd.
Region: Jiangsu, China
Price: $32000.00 /set
Min. Order: 1 set

Click here to contact

Product details

positioning accuracy:	0.5μm/100mm	Marketing Type:	Hot Products of 2019
Video external inspection:	if	Health status:	new
Core components:	Bearings, pressure vessels	port:	Changzhou/Shanghai Port
rigidity:	1000N/μm	Bale:	Customizable (Minimum Order: 1 Piece)
Packaging Details:	Oil paper + plastic paper + packaging film + wooden box	Repeatability:	0.3 microns
Stroke:	350mm	Packaging Preview:
Showroom location:	not any	Warranty:	1 year
Table size:	400mm*400mm	Oil Viscosity:	ISO VG 10
Applicable industries:	Mechanical Repair Shop, Manufacturing Plant	ID:	Customizable (Minimum Order: 1 Piece)
Supply capacity:	50 sets per month	Mechanical test report:	if
Weight (kg):	784	type:	lead rail
brand:	LINCH	Graphic customization:	minute. Order: 1 piece
payment terms:	letter of credit, wire transfer

Product Description

Product Details

table size	400mm*400mm
stroke	350mm
logo	Customizable (Minimum Order: 1 Piece)
Bale	Customizable (Minimum Order: 1 Piece)
Graphic customization	minute. Order: 1 piece
positioning accuracy	0.5μm/100mm
Repeatability	0.3 microns
rigidity	1000N/μm
oil viscosity	ISO VG 10

about us

Company Profile<

LINCH is a high-tech company integrating research, manufacturing and sales, specializing in providing a full range of hydrostatic bearing systems. Relying on the international cutting-edge technology, it attaches great importance to personnel training and technological innovation, and has a professional technical development and management team engaged in hydrostatic bearing systems.

LINCH is mainly engaged in the research and development, production and sales of hydrostatic bearing series; providing professional and systematic products and technical services. LINCH's characteristic product is a hydrostatic spindle with ultra-high rotational accuracy, ultra-high rigidity, excellent vibration resistance, and long precision duration, mainly used for high-efficiency, high-speed, and high-precision CNC machining equipment.
