1000watt smart solar energy systems for home with inverter battery MPPT solar controller and battery

Product details
Weight:6Kg;Battery Type:Lithium;
Size(L*W*H):376*213*85MM;Charge controller:MPPT charge 12V 40A;
Work Time (h):6-8hours;Selling Units:Single item;
Product name:220volt 240V ac solar generator 1000watt soalr rv kit;Brand Name:Gaoneng;
AC output frequency:220V 230V /50HZ/60HZ;Solar Panel Type:Grade A Polycrystalline;
Package Type:solar systems for home , 1000 watt inverter packed in carton;Single gross weight:6 KG;
Delivery Detail:0 days after payment;Model Number:GNMB-24V-1000W-S40A;
Controller Type:Mppt controller;Output Frequency:50Hz;
ATS function:Optional;Load Power (W):1000w;
Application:Home;DC outputs:12V 10A;
Output Voltage (V):220v;Output waveform:Pure Sine Wave;
Place of Origin:Anhui China (Mainland);Package Preview:https://sc01.alicdn.com/kf/HTB1h0iqairxK1RkHFCcq6AQCVXaL.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1mwGxanjxK1Rjy0Fnq6yBaFXa3.jpg_640x640.jpg;
Warranty:2 Years;Single package size:50X30X18 cm;
Specification:Normal;Charge current:5A/10A/15A;



Product Description

Details:

Pure sine wave power
Conversion efficiency 85%
Easy to install & easy to operate & easy to solve
explaination of problem clearly

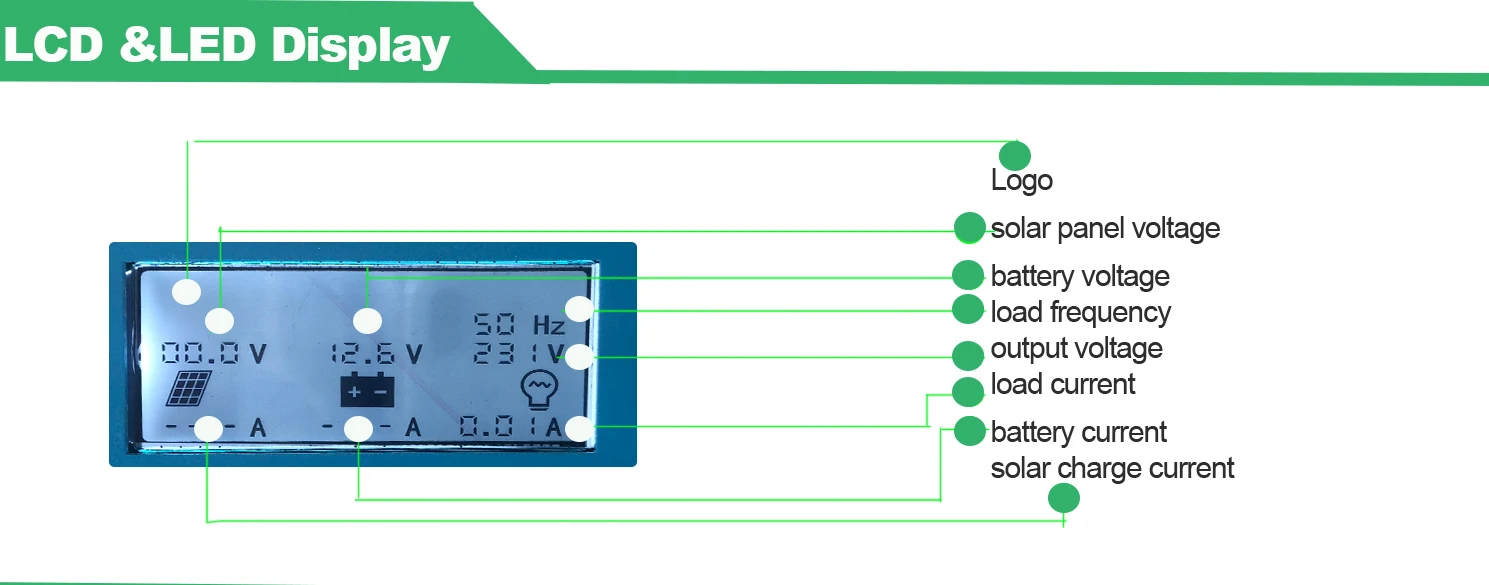

LED display

Solar input voltage& curretnt

Battery capacity. voltage/

Load current. power

DC 12V output

3pcs

AC socket

1pc

USB port

1pc

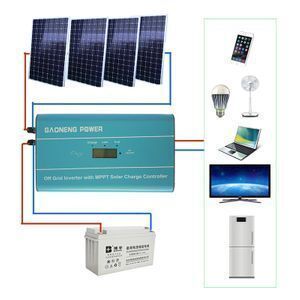

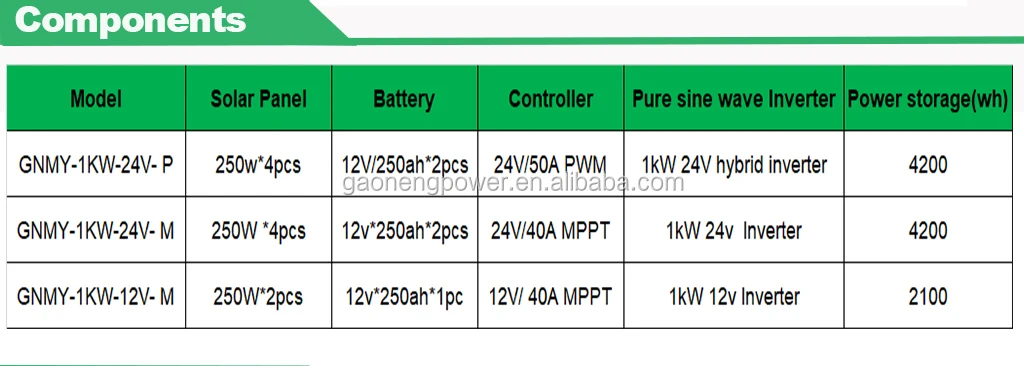

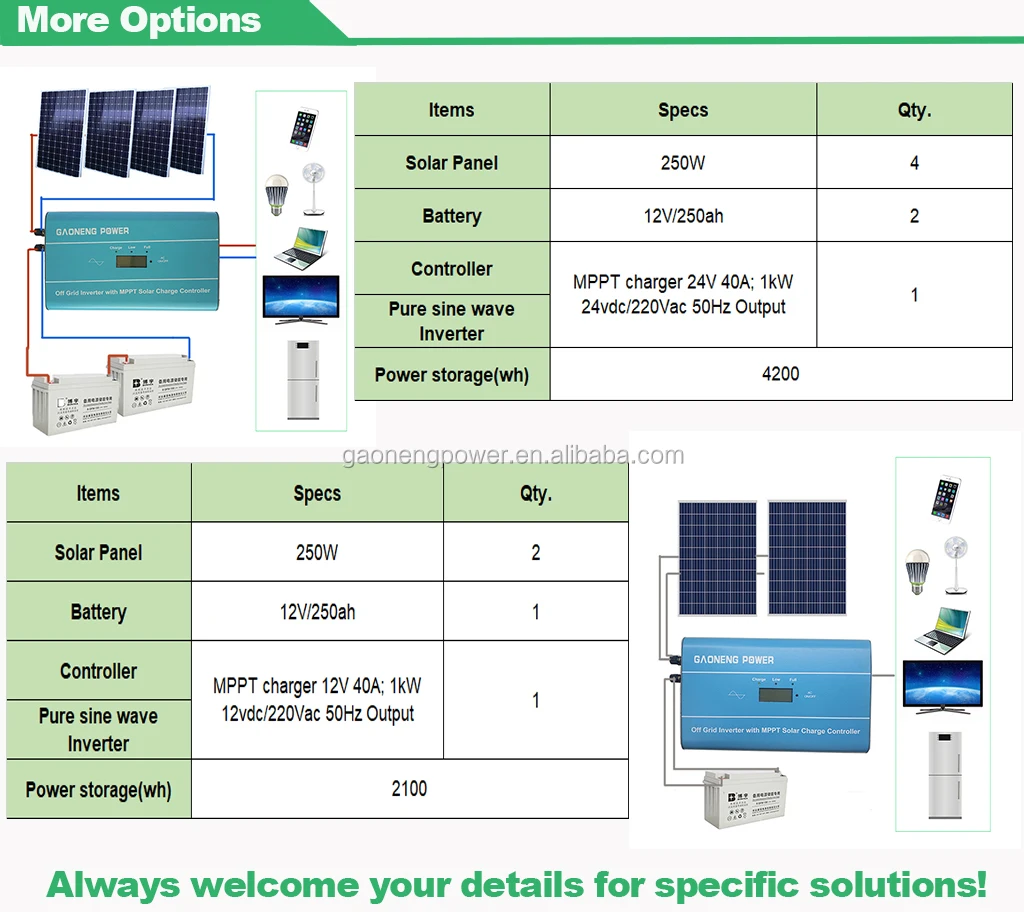

There is solar system complete for your reference

ItemspecificationWarrantyPhotoQuantity
Mono/poly panel
  1. 300W poly solar panel
  2. A class
  3. Max power voltage:32.5V
  4. Max power current:7.38A
  5. Open circuit voltage39.0V
  6. MC4 connectors
  7. Dimensions:1790*992*45mm
  8. Weight:22KG
25years2pcs
inverter with charger
  1. 1kw solar inverter withmppt controller
  2. PV max power: 600W.
  3. Working voltage:36V
  4. Max load power:3KW
  5. DC 12V output: 3 pcs
  6. AC socket: 1 pc
  7. USB port: 1 pc
  8. Charging efficiency:>99%
  9. Frequency: 50Hz/60Hz
 5years 1pc
Gel-battery
  1. 12V 60Ah Gel-battey
  2. Max current:50A
  3. The temperature range:
  4. -25 to 50℃
  5. Size:485*170*240mm
  6. Weight:40kg
 5years1pc



Parameters



Model

GNMB-12V-1000W-S40A

Rated voltage

12V

PV  power

600W(MAX)

Solar panel open voltage

<50V

Suggest PV voltage

18V

charge starting panel voltage

>15V

load power(MAX)

2000W

Over load power

125%

starting impact power

1000VA

charging model

MPPT

charging efficiency

>99%

battery discharging protect voltage

10.8V

low voltage protection recovery voltage

12.6V

battery over voltage protection

16.0V

overvoltage protection recovery

15.0V

charging protection voltage

14.4V

Back to charging voltage

13.2V

AC output

220V/230V/240V±3%(selecting match)

AC output frequency

50Hz/60HZ

AC input range

AC120V-AC280V

Switch to POWER GRID

<11.5V

Switch to inverter

>14.0V

Output wave form

Sine wave

Product efficiency

>85%

Working temperature

Industrial grade -25℃to +55℃

Working altitude

<3500M

Weight

5.5kg

Size(L*W*H)

376*213*85MM




FAQ

1.Are you factory?  Can you OEM for my brand or project?

  • Yes, we are factory of solar controller and inverter. Independent engineer team always welcome your OEM request. You will just offer your system design or ideas, we will come solutions for you.

2.How many time you will need for custom made products?

  •    For logo custom made: 15-20days;
  •    For product custom made: 30-45 days;

3. How do I make payments?

  •  We support West union, T/T, aliaba trade assurance, fully protect your quality services.

4. How can I install my inverter for solar system?

  • You can install according to our guide book, or contact our technical support team with video or telephone guides.

5. Why you are always expensive than other suppliers?

  • Firstly, for solar panel and battery, we choose our supplier strictly, so our price is not so cheap;
  • Secondly, we are always do honest business with quality products and decent price;
  • Thirdly, we can review more options for you with different prices for reference.
