Small manual manual circular saw blade grinder with water tank alloy saw blade grinder

Supplier: Zhengzhou Ruizuan Diamond Tool Co., Ltd.
Region: Henan, China
Contact: Mr Brandon Zou
Price: $196.00 / 1 - 1 pieces
$176.00 / 2 - 4 pieces
$154.00 / 5 - 9 pieces
$130.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Voltage:	220V	Core Components Warranty:	1 year
place of origin; place of origin:	China	Health status:	new
Warranty:	1 year	Supply capacity:	1000 sets per month
Marketing Type:	New Products 2020	application:	Alloy hard saw blade
Saw blade diameter:	80-700MM	revolution:	2850 rpm
maximum. Grinding diameter:	700mm	Power (kW):	250
Wheel size (mm):	1251032mm	maximum. Grinding length:	60mm
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Main selling point:	long lasting
Applicable industries:	Manufacturing, Retail, Sawmill	brand:	RZ
Packaging Preview:		usage:	Alloy saw blade gear grinder
product name:	Circular saw blade grinder	Weight (kg):	20
Material:	Iron base, aluminum base	CNC or not:	normal
port:	Tianjin, Qingdao, Shanghai, Guangzhou, Shenzhen, Beijing	Core components:	other
Mechanical test report:	if	Video external inspection:	if
type:	common	Rotation frame angle:	L30°R45°
Showroom location:	not any	Packaging Details:	carton
Sharpening angle:	±20°

Product Description

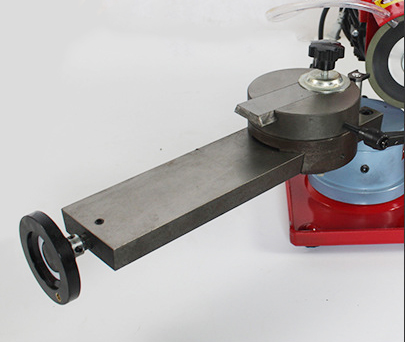

1. This circular saw blade grinder is specially designed for the grinding of carbide saw blades. It is suitable for all kinds of carbide saw blades. It has an adjustable annular tray, which can hold knob teeth or other grinding parts to the greatest extent. With positioning pin, according to the diameter and the size of the saw blade teeth, adjust to the best position, according to the size of the blade diameter, the blade can be adjusted to the best position, the tray with a turntable ensures that the original angle of the knife is sharpened or it is changed.

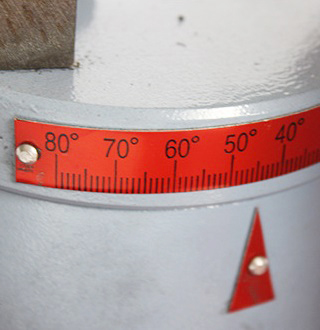

2. The worktable has a turntable, this saw blade sharpener is easy to adjust the sharpening feed angle.
3. The turntable is equipped with sliders, mandrels and limit screws, which are easy to operate and ensure the center of the sharpening radius.

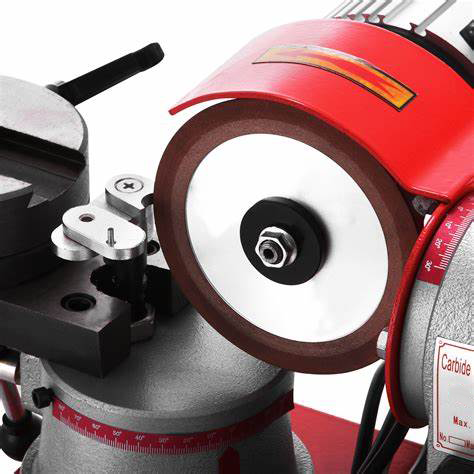

4. The grinding head of the circular saw blade grinder has a positive and negative 20-turn mechanism, which meets the requirements of oblique edge grinding.

Product parameters

product name	saw mill	Regulation	125103252MM
sharpening angle	±20°	Voltage	220V
The angle of the rotation frame	L30°R45°	strength	250W
Saw diameter	80-700MM	revolution	2850 rpm

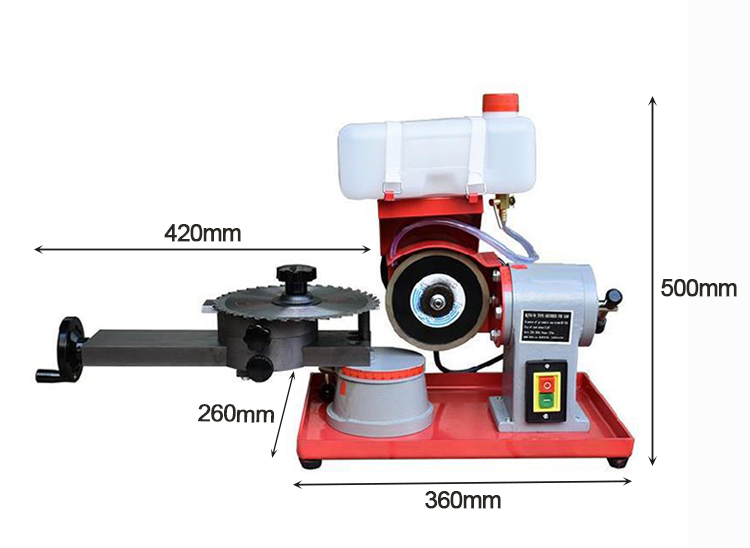

aspect	430430335MM	weight	20kg

The circular saw blade grinder is small in size, easy to carry and easy to operate, and is widely used for grinding various circular saw blades.

Circular saw blade grinder manual woodworking carbide saw blade sharpener sharpener

1. Comply with the voltage standard and be well grounded.
2. The tct saw blade sharpener must be placed in a dry, non-corrosive, stable and level position.
3. Loosen the peripheral tray and adjust the angle of the grinding disc.
4. Lock all locking parts before starting.
5. It can work normally after booting.
6. When the grinding machine is finished, cut off the voltage.
7. Unauthorized modification of the unit may cause adverse consequences.
