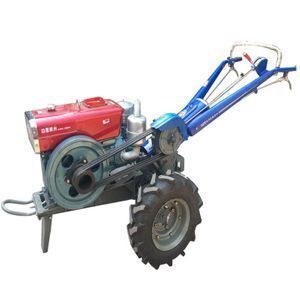

2018 mini two wheel farm walking tractor / Agricultural machinery equipment

Supplier: Yucheng Zeyi Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Eric zhang
Price: $1080.50 / >=3 sets
Min. Order: 3 sets

Click here to contact

Product details

Single package size:	2980X1300X960 cm;	Power(W):	14.73;
Wheel Tread(mm):	800mm;	Delivery Detail:	0 days after payment;

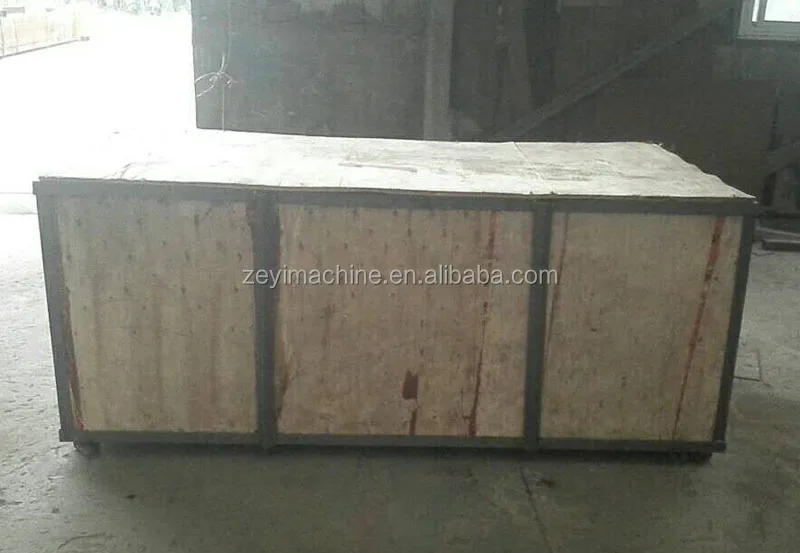

Package Type:	wooden case;	Model:	ZS1110;
By wheel:	2WD;	Package Preview:	https://sc01.alicdn.com/kf/HTB1TDB0KbSYBuNjSspfq6AZCpXat.jpg_640x640.jpg;
Rated Speed(rpm):	2000;	Drive Type:	Gear Drive;
After-sales Service Provided:	Overseas third-party support available;	Displacement(L):	1.535;
Overall Size(mm):	29809601300(without seat);	Certificate:	CE;
Structural Weight(kg):	415 (with connecting frame), 525 (with rotary tiller);	Selling Units:	Single item;
Condition:	New;	Brand Name:	Zeyi;
Type:	Walking Tractor;	Usage:	Farm Tractor;
Place of Origin:	Shandong China (Mainland);	Single gross weight:	420 KG;

Product Description

2 wheels walking tractor is a traction and driving dual-use walking tractor. The supporting power is 12-22 hp diesel engine. The user can match other types of diesel engines whose power does not exceed the specified value according to actual needs. The machine has the advantages of simple and compact structure, light and flexible operation, light weight, reliable use, convenient maintenance and good versatility.
Reliable lubrication performance, perfect control of dynamic balance. Low fuel consumption, fast speed, strong horsepower. Advanced combustion system, adequate air intake, more complete combustion, more power, super fuel-efficient, super reliable.

20hp walking tractor is dual-function product that can be operated as the towing machine as well as driving machine. They have small and compact structure, light weight, long service life, reliable performance, easy operation and good running ability, also they are be assemble a seating equipment for driver.
The products are suitable for operating in paddy field, dry field, orchard, greenhouse, hilly field.

1.zeyi brand walking tractor can be both used for traction or drive.

2.Can be matched with other diesel engine accordinng to clients' need.

3.Simple & compact structural, easy to operate.

4.Convenient to maintain, easy to pass.

5.Can be widely used in plain area, mountainous area and hills.

Engine	Model	ZS1110
	Pattern	Vertical, One Cylinder, Four Stroke, diesels powered, Water-cooled
	Displacement(L)	1.535
	Oil Consumption (g/ Kilometer. h)	380
	Engine Oil Consumption (g/ Kilometer. h)	3.25
	Rated Power(kw)	14.73 kw
	Rated Speed(rpm)	2000
	Starting Type	electrical starting
Machine Parameters	Overall Size(mm)	29809601300(without seat)
	Wheel Tread(mm)	800
	Minimum Ground Clearance(mm)	185
	Minimum Turning Radius(m)	0.9
	Structural Weight(kg)	415 (with connecting frame), 525 (with rotary tiller)
	Tyre	6.00-12
	Theoretical Speed(Kilometer/h)	Forward:1.4,2.5,4.1,5.3,9.4,15.3 Reverse:1.1,3.8
	Rated Traction(N)	2400

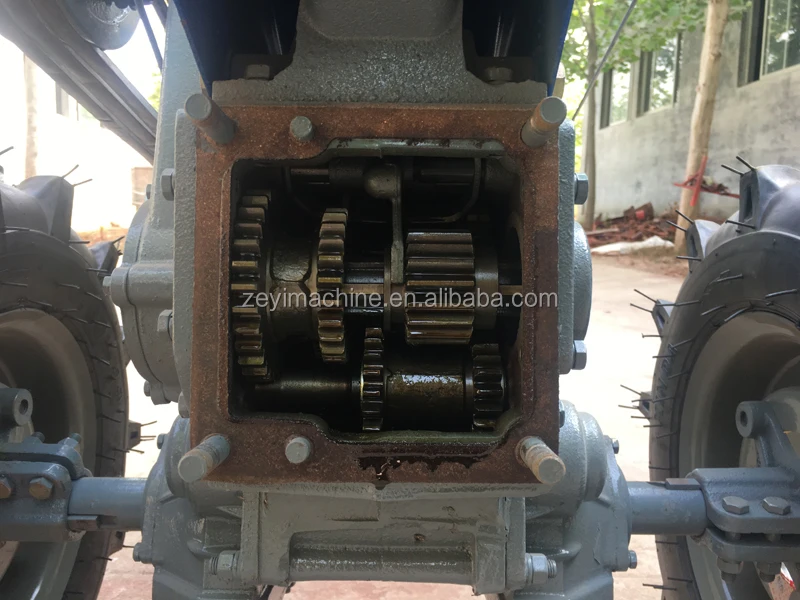

	Gearbox	(3+1)×2
	Oil Type	0# in summer,-10# or 20# in winter
	Cooling type	Evaporation
	Rear-Wheel Diameter(mm)	340
