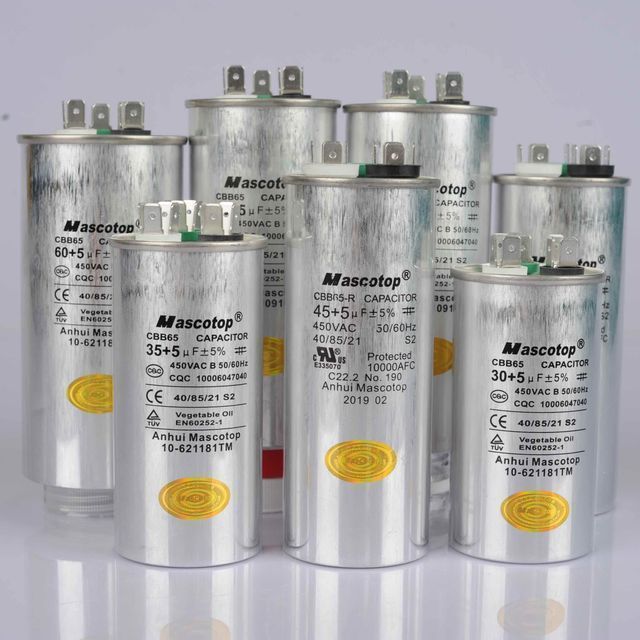

Factory quality condenser

Supplier: Anhui Mascotop Electronic Co., Ltd.
Region: Anhui, China
Contact: Mr Chris Qiu
Price: $0.10 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Supplier Type:	original manufacturer	place of origin; place of origin:	China
temperature range:	-40℃ to 105℃	Available media:	data sheet, photo
type:	Polypropylene Film Capacitors, Metallized Polypropylene Film Capacitors	Packaging Details:	Individual color box, 50 pieces in a sturdy carton with insulating paper, tray
port:	Ningbo, Shanghai, Guangzhou and other Chinese ports	Certification:	UL, CE, TUV, VDE, CQC
model:	cbb65-2020032401	Rated voltage:	250-450VAC
shell:	Aluminum round shell	type of packaging:	surface mount
use:	Compressor/Air Conditioner	brand:	mascot, eagle, star
Supply capacity:	50,000 pieces per day	tolerant:	+5%
Operating temperature:	40/85/21	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Protection class:	S1.S2.S3	capacitance:	5-120uF;
feature:	low dissipation	Action class:	Class A: 30,000 hours, Class B: 10,000 hours, Class C: 3,000 hours
terminal:	2+4PIN/2+2PIN/4+4PIN

Product Description

Applications

The capacitor has the advantages of low loss, high insulation resistance, good self-healing, anti-rush current, strong overload current capability, stable electrical performance, safe and reliable internal explosion-proof device, etc. Used in air conditioners, refrigerators, motors, compressors, and is conducive to the start and operation of motors.

Specification
^{ambient temperature.}	^{- 40~85(°C)}	^{Rated voltage}	^150~500VAC
^{Capacitance range}	^{1~100uF (single)} ^{1+1~80+15uF(Dual)}	^{Test voltage:}	^{TT: 2Un/2S} ^{Thermocouple: ≥2200VAC/2S(VAC)}
^{Dissipation factor}	^{tanδ ≤ 0.002(100Hz)}	^{working frequency}	^50/60Hz
Executive standards: IEC60252, UL810.EN60252, VDE0560-8, GB3667.1-2005 Capacitance Tolerance: ±3% or upon request.

main feature

1) Low dissipation, high insulation resistance, good self-healing, anti-impulse current, strong overload current capability, and stable electrical performance

2) Personal color box will be designed according to customer requirements

3) All sizes can be produced according to customer requirements

4) OEM special design

5) With internal explosion-proof device
