Factory SMD component counter for tape& reel components counting

Product details
Usage:Count smd components/parts in tape&reel;Brand Name:Juanxin;
Pocket check:Yes, missing part detection;Name:smd component counter;
Count range:-99999 ~ 99999pcs;Packaging Detail:Carton box with foam;
Reel width:8,12,16,24,32,44,56mm;Payment Terms:T/T,PayPal;
Count speed:5000pcs/ 30 sec;Place of Origin:Guangdong China (Mainland);
Reel Interval Distance:2,4,8,10,12,16,24,32,44,56mm;Certificate:CE;
Power:30W;Supply Ability:200 Set/Sets per Month smd component counter;
Model Number:YS-802;Delivery Detail:1-2 days after getting your payment;
Port:Shenzhen;Voltage:220V/110V;

Factory SMD component counter for tape& reel components counting



SMD Component Counter works in a simple way by counting the holes on the tape.



It can operate in two different ways:



 Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.

Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.





Product Description

Overview:

Fast, error-free SMD counters, can count 5000pcs components in 30 seconds.Optional  Models include reel counters with barcode scanner and label printer that identify and record quantity and date information.

Optional  pocket-Check feature alerts operator to missing components.



 Prevent a stock shortage and line-down situation by using  Component Counter to verify exact stock quantities of all your reeled components.

The  Component Counter allows you to accurately count taped components in an effective and efficient manner without inducing damage to the components or carrier tape. Counting can also be performed in both winding directions.

In addition to its primary function as a component counter, the  can also be simultaneously used to assist with the visual inspection of the components in tape and the quality of the tape seal if desired while winding the tape from reel to reel.



Parameters

Voltage

 AC110V/220V, 50/60Hz(convertible)

Capability

 5000 pcs /30s

 Power consumption

 30W(2 Motors)

 Counting volume

  -99999 ~ 99999pcs

 Size

 L470*W300*H180mm

 Net Weight

 10kg

 Reel Diameter

 Suitable for SMD Reel with any diameter

 Reel Interval Distance

 2,4,8,10,12,16,24,32,44,56mm

Reel Width

 8,12,16,24,32,44,56mm




Features

1.Full automactic counter, high accuracy, no error.



2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.



3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.



4.The counter use drafting LCD screen, easy operation, full English display.



5.Use patent reflector,humanized operation platform.



6.Optional bar scanner and code printer, convenient for component management.



7.  Optical sensor can detect empty components. Motor will stop working when detected leak.


Optional Function

Empty Pocket Detection - Includes: Optical Sensor which looks through pocket centre hole, On/Off Switch, Audible Buzzer, Red Panel LED Indicator & Reset Switch.



Detailed Images

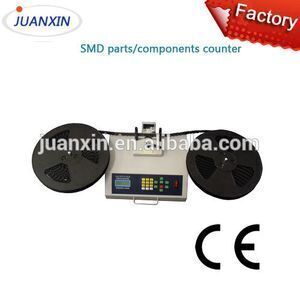

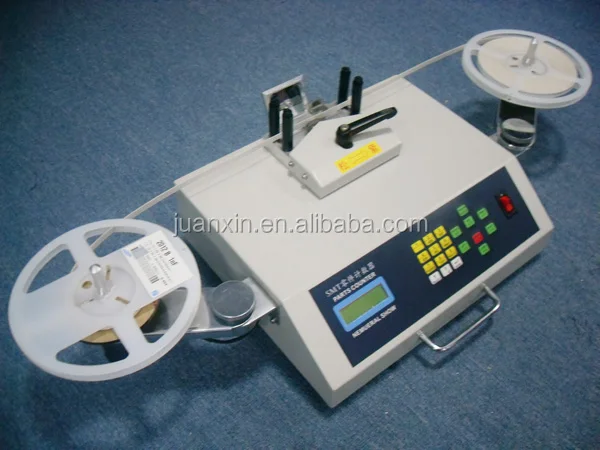

SMD component counter picture





Please see the picture below about the fiber sensor, which can detect missing electronic components on the tape and reel.

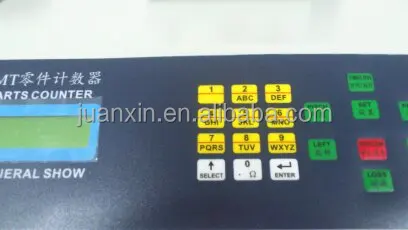

English panel for eary operation

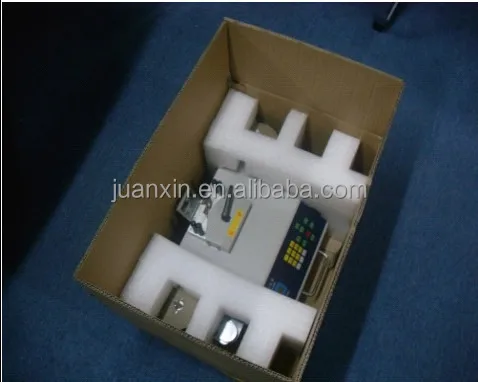

Smd counter is packaged by carton box
