Best selling high precision current measurement current sensor rogowski coil integrator
-
Supplier: Shanghai Pinyan M&C Technology Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Carol Chen -
Price: $45.00 /piece -
Min. Order: 1 piece
Product details
| Packaging Details: | Plastic bag for rogowski coil current sensor, carton for plastic bag. | Maximum output (overload: | 1.5A AC RMS |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL | theory: | Rogowski coil |
| place of origin; place of origin: | China Shanghai | port: | Shanghai |
| model: | ATP01 | Supply capacity: | 50,000 pieces per month |
| brand: | Botox | Reading Accuracy: | 0.5% (typ) at 1%(≥10A) to 110% rated current @25℃ |
| Rated output: | 1A AC RMS | energy consumption: | 10W |
| Phase error: | ≤0.5° | bandwidth: | 30Hz to 5kHz |
| usage: | Rogowski coil | Linearity: | ±0.2% of reading (10% to 120% of range) |
| Measurement: | Secondary CT for measuring integrator output | output: | analog sensor |
| Biggest burden: | 0.5Ω (per phase) | 0A output: | ≤0.01A |
| Packaging Preview: |
Product Description

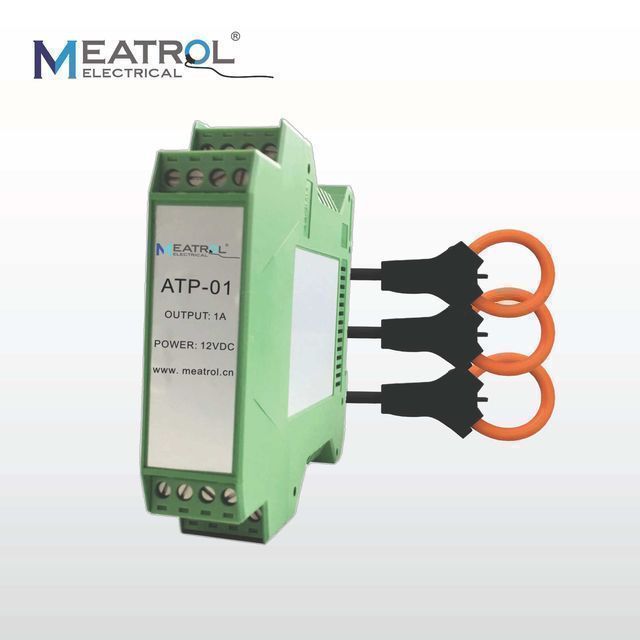

The ATP01 is a three-phase DIN-RAIL 1A output Rogowski coil integrator installed in a distribution box, in a plastic 1-module DIN-RAIL enclosure, powered directly from the mains.
advantage
* 0.5% higher reading accuracy
* Compact DIN rail structure
* High bandwidth 30 to 5kHz for measurement
* Output 1A rms
* Compact DIN rail structure
* High bandwidth 30 to 5kHz for measurement
* Output 1A rms
application
Measuring equipment, laboratory instruments
* Power monitoring and analysis
* Harmonic and transient monitoring
* Welder control
* High current measurement
* Power monitoring and analysis
* Harmonic and transient monitoring
* Welder control
* High current measurement
detailed image
Size Information
Model | ATP-01 | |
Rated output | 1A AC RMS | |
Maximum output (overload) | 1.5A AC RMS | |
Rated ratio | 100A 600A 1000A 3000A 6000A | |
reading accuracy | 0.5% (typ) at 1%(≥10A) to 110% rated current @25℃ | |
Phase error | ≤0.5° | |
Linearity | ±0.2% of reading (10% to 120% of range) | |
bandwidth | 30Hz to 5kHz | |
maximum burden | 0.5Ω (per phase) | |
Measurement | Secondary CT for measuring integrator output | |
energy consumption | 10W | |
0A output (zero drift) | ≤0.01A | |
temperature drift | 200ppm/℃ | |
weight | 185 grams | |
aspect | 114*100*22.5mm | |
power supply | 12V DC | |
Operating temperature | -20℃ to 50℃ | |
Storage temperature | -30℃ to 70℃ | |
Relative humidity | Up to 80% non-condensing | |
Protection class | IP20 | |
For other requirements, please contact us for OEM. | ||
