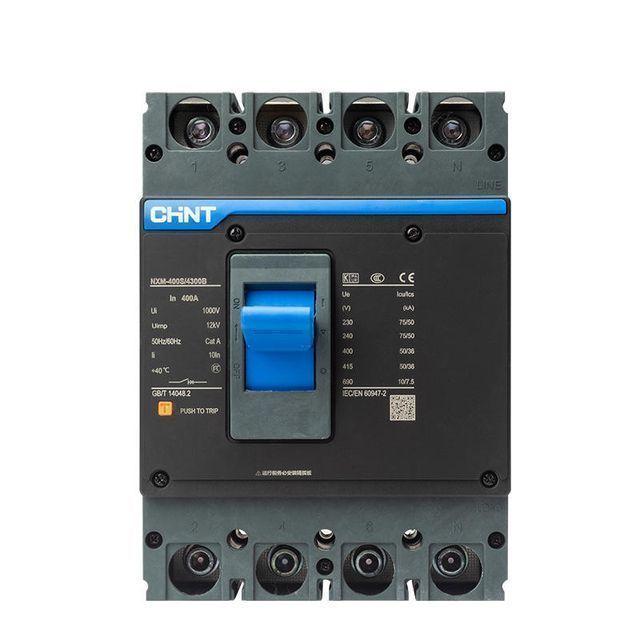

Chint mccb NXM series 3-4 pole 400A plastic case circuit breaker
-
Supplier: Kunshan Yayada Electric Appliance Technology Development Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr jack shi -
Price: $78.70 / 10 - 49 pieces
$66.60 / 50 - 99 pieces
$60.60 / >=100 pieces -
Min. Order: 10 pieces
Product details
| type: | plastic shell | Rated current: | 400A |
| Number of poles: | 3 pole/4 pole | payment terms: | Western Union,L/C,D/P,D/A,T/T,MoneyGram |
| Number of poles: | 3P/4P | brand: | Chint |
| Rated voltage: | 230/240,400/415,500,690V | Breaking capacity: | 36KA |
| Installation method: | fixed, plugin | port: | Shanghai Port, Ningbo Port, Shenzhen Port, Qingdao Port |
| Trip action: | Electromagnetic / Thermomagnetic | Protection class: | IP30 |
| temperature range: | -35℃~70℃ | Supply capacity: | 5000 pieces per month |
| place of origin; place of origin: | China | Rated frequency (Hz): | 50/60Hz |
| model: | NXM-400S/3300 400A | Breaking capacity: | 36KA |
| Packaging Preview: | Packaging Details: | Carton | |
| Electrical life (time): | 10000 times | Rated Frequency (Hertz): | 50/60HZ |

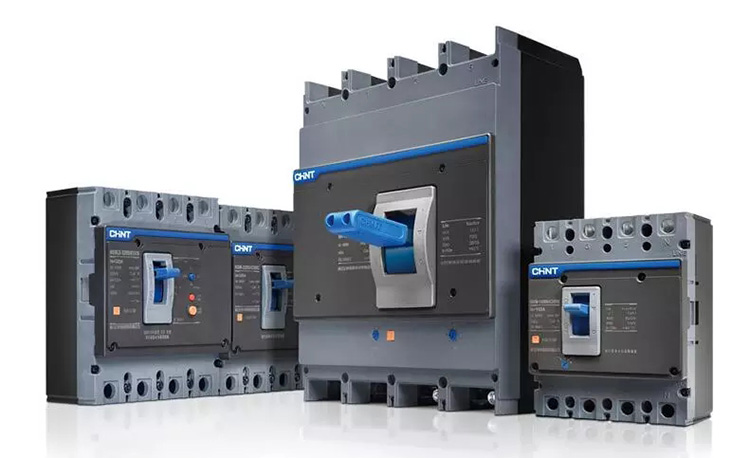

Product Description

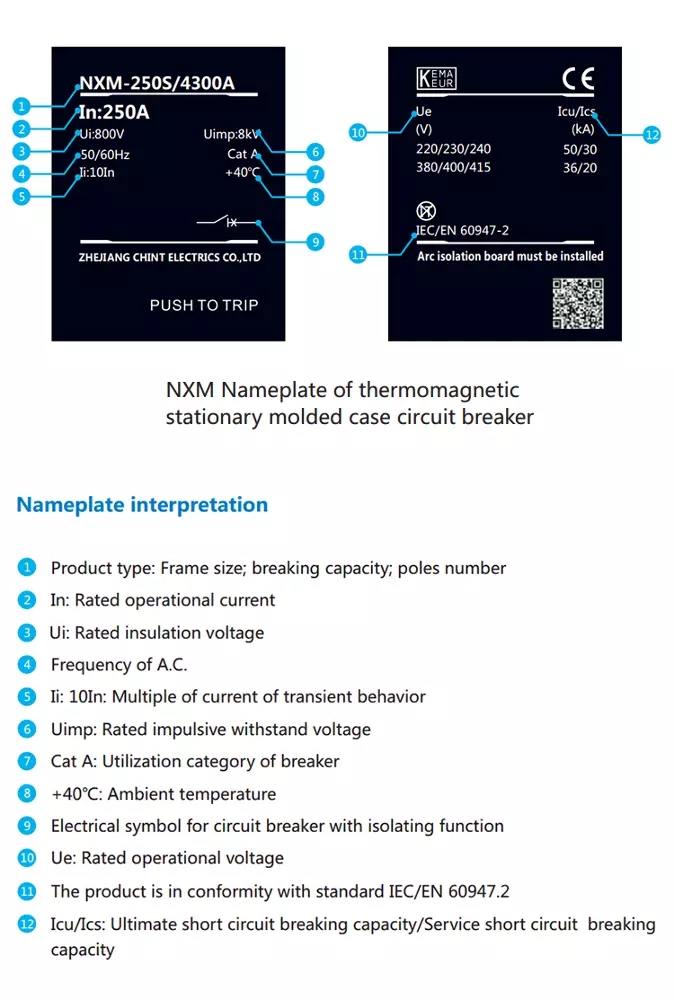

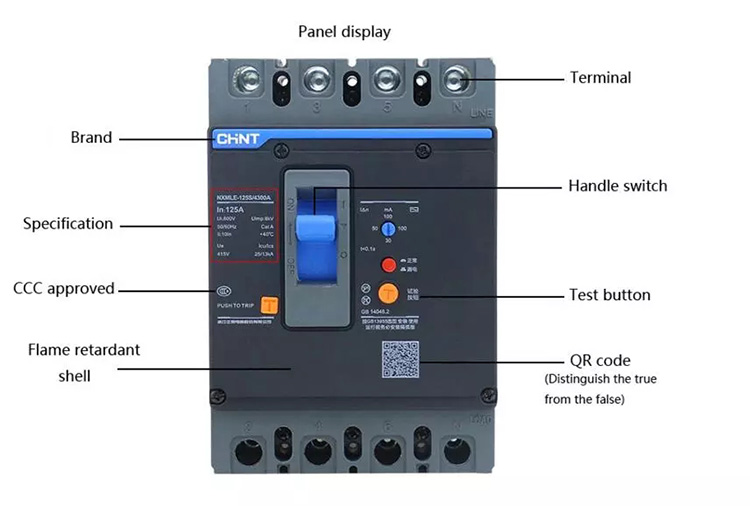

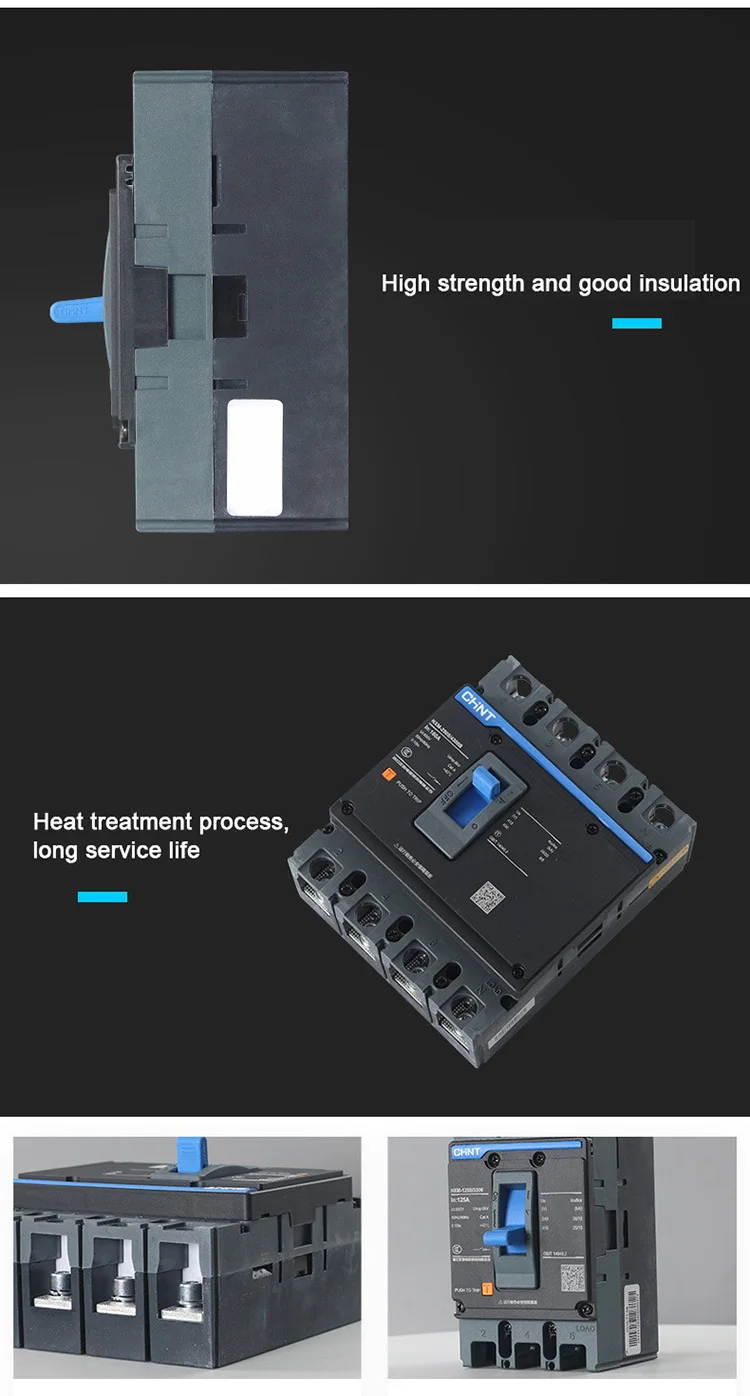

Image details

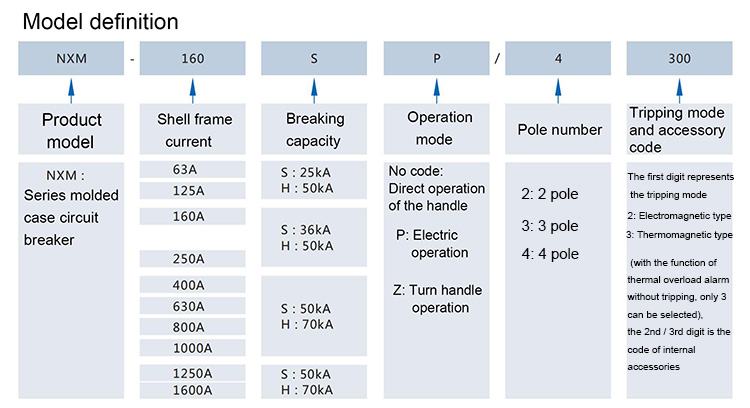

Product parameters

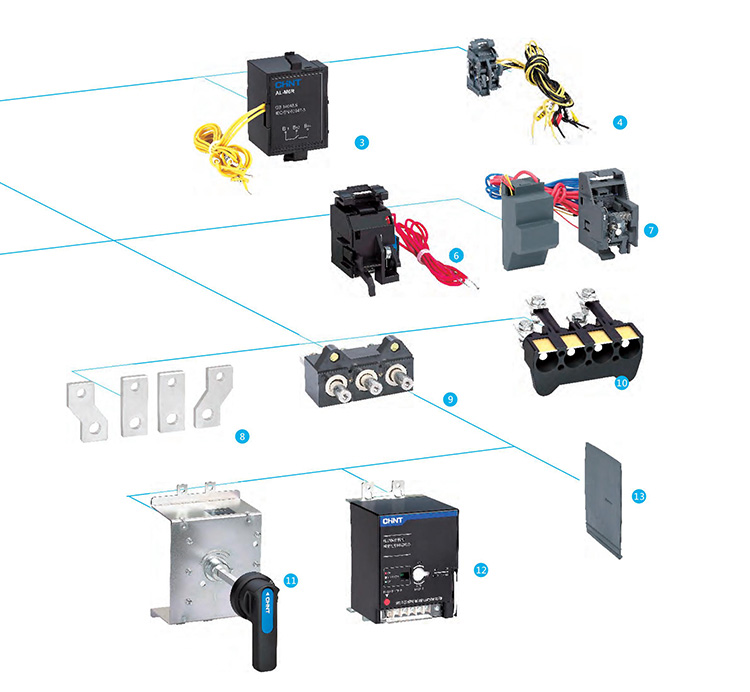

Optional Specifications

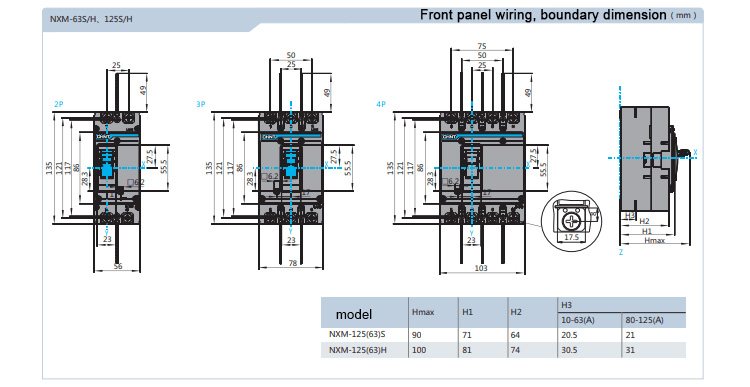

Model | amplifier | number of poles | Dimensions (mm) Width (W) × Height (H) × Depth (d) |
NXM-63S,H/2300,3300,4300 | 10,16,20,25,32,40,50,63 | 2,3,4 | 56/78/103x135x56/78/103 |
NXM-125S,H/2300,3300,4300 | 10,16,20,25,32,40,50, 63,80,100,125 | 2,3,4 | 56/78/103x135x56/78/103 |
NXM-160S,H/2300,3300,4300 | 32,40,50,63,80, 100,125,140,160 | 2,3,4 | 63/90/120x155x75.5/91 |
NXM-250S,H/2300,3300,4300 | 125,140,160,180, 200,225,250 | 2,3,4 | 78/105/140x165x77/102 |
NXM-400S,H/3200, 3300,4300 | 250,280,315, 320,350,400 | 3,4 | 140/185x257x108.5/108.5 |
NXM-630S,H/3200, 3300,4300 | 400, 500, 630 | 140/185x257x108.5/108.5 | |
NXM-800S, H/3200, 3300, 4300 | 630, 700, 800 | 3,4 | 182/240x270x114/114 |
NXM-1000S,H/3300,4300 | 800, 900, 1000 | 3,4 | 210/280X280x118/118 |
NXM-1250S,H/3300,4300 | 1000, 1250 | 3,4 | 210/280x370x153/153 |
NXM-1600S,H/3300,4300 | 1000, 1250, 1600 | 3,4 | 210/280x370x158/158(＜1600A:153/153) |
Scope of application
production workshop
